796688 (4188-657)_i2 _06/03
23

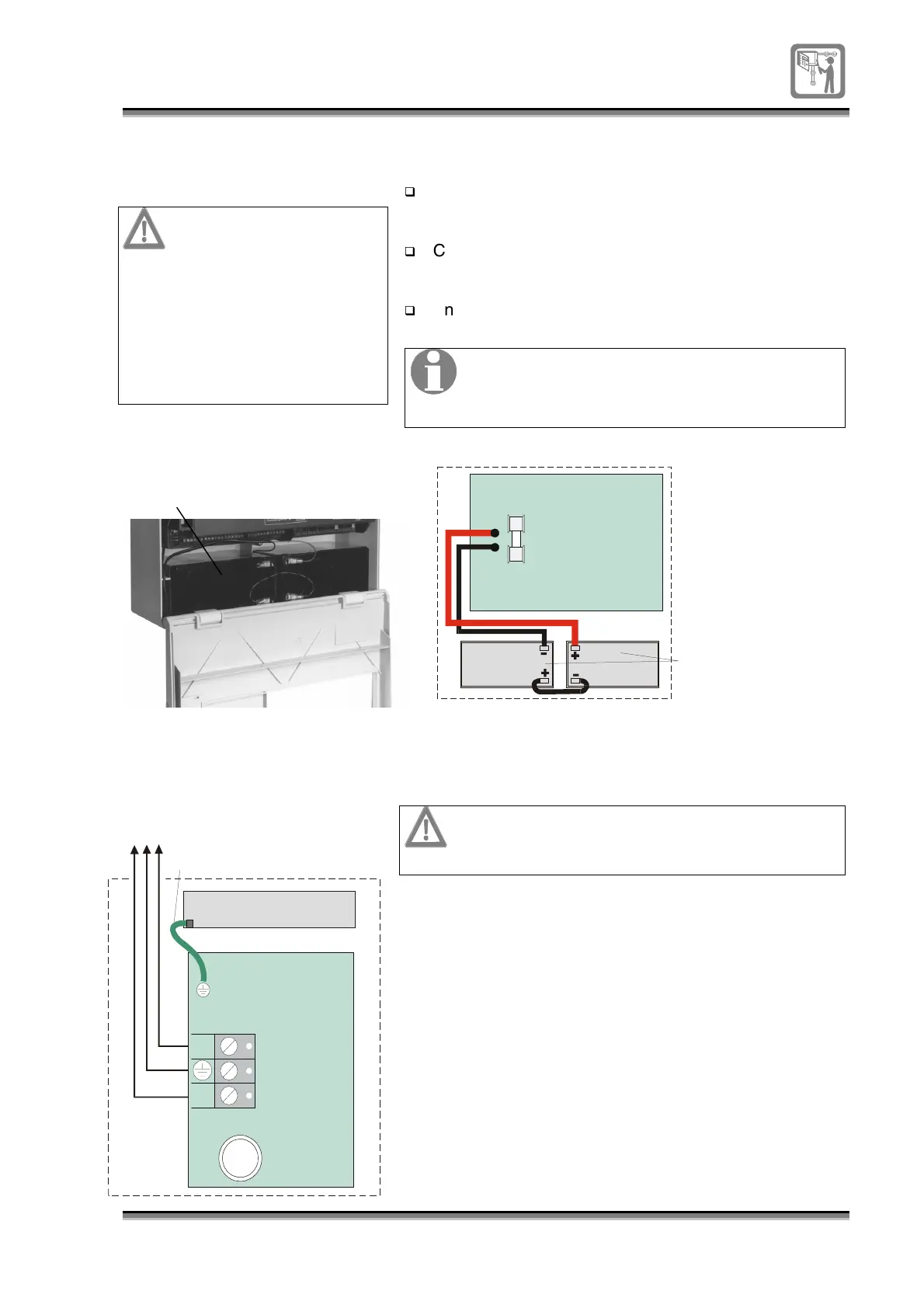

Power up
Battery connection
CAUTION: RISK OF
EXPLOSION IF
BATTERY IS REPLACED
BY AN INCORRECT
TYPE.
DISPOSE OF USED
BATTERIES
ACCORDING TO THE
INSTRUCTIONS.
Battery
To power up the panel connect the mains and battery
supply.
Fit the batteries in to the panel, observing the location
and orientation of battery installation.
Connect the wires from the
electronic module
to both
the batteries.
Ensure the battery link is fitted.
The panel will not power up on battery supply
alone. However in the event of mains failure the
battery will maintain a standby supply to the
panel.
Mains supply connection
To prevent serious injury, ensure the mains
supply to the control panel is isolated until
required.
A qualified person in accordance with the current
regulations must make the mains supply connection to
the control panel. The mains to the panel must be via a
dedicated 3A fused spur unit, marked in red FIRE ALARM
– DO NOT SWITCH OFF.
2 X 12V 7Ah
BATTERY
FS3
+
-
FAP
7Ah
P8
Electronic
Module
Control panel
FS7
Mains fuse
3.15A
Control panel
Electronic
Module
Gland
Plate
Earth to gland plate
Mains
Supply
230V
L
P3
N
To Next Page
