Cables
EMC approved cables suitable for wiring the system:

Mineral insulated cable (MICC) to BS6207:Part 1

Delta Crompton FTZ2E1.5 FIRETUF OHLS fire
resistant data cable

Raydex CDT FG950

Cavicel SpA FIRECEL SR 114
distributed by Cables Britain

AEI Cables FIRETEC

BICC Pyrotenax FLAMESIL FRC

Datwyler LIFELINE
It is NOT permissible to run outgoing and return
pairs in a multi core cable, due to inadequate
separation and possible electrical interference
problems.

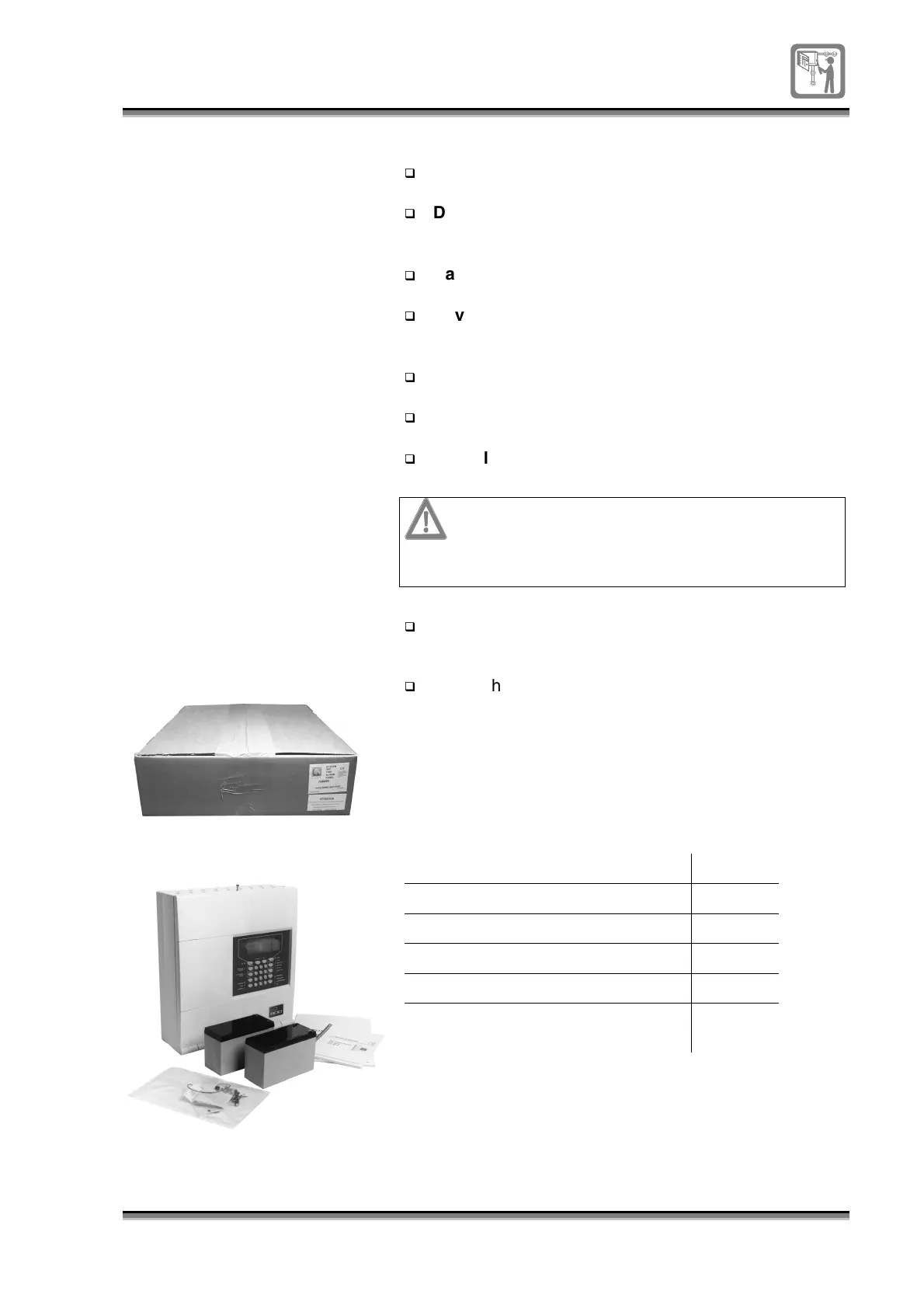

Panel installation
Inspect the contents

Before starting installation work check the package
label and the contents of the package.

Check the contents, there should be:
-
System 800 fire alarm panel
-
2 - Battery 12V 7Ah
-
Spares pack
-
Panel wall mounting template
-
Instructions
Content of the spares pack:
Parts Quantity
Allen Key (door) 1
End-of-line resistor - 10K ohms 4
End-of-line label 2
Battery link 1
Spare 3.15A (T) fuse ceramic type
for mains & battery supply
2
