Local input
The system 800 panel has a local input that can be
configured as a:

class change

fire input

evacuate input

switched OFF
As a
class change
input the system alarm sounders are
used for class change application, such as in an
educational establishment like school or college.
As a
fire input
the panel interprets this as a fire event
and the panel goes into fire condition. The alarm
sounders in the system operate as per a fire event from a
device on the loop.
As an
evacuate input
the panel interprets this as a sound
alarms signal and operates the alarm sounders in the
system.
Additionally the local input can be enabled or disabled
using the menu controls at the panel.
If configured as a fire input the panel can put the input
into a Test State.
RS232 interface
The system 800 panel has a RS232
interface which can be used to connect the
service PC during commissioning, for
labelling devices and zones in the system.
The RS232 will facilitate the connection of
a printer for printing system events; this is
not yet available.
The terminal block P2 and
connector P6 share a
dedicated RS232 and only
one of these can be used at
any one time.
Electronic
Module
Control panel
Service PC
Printer
(Not yet available)
or
RS232
P5
TX
RX 0V
P6
PC
LINK

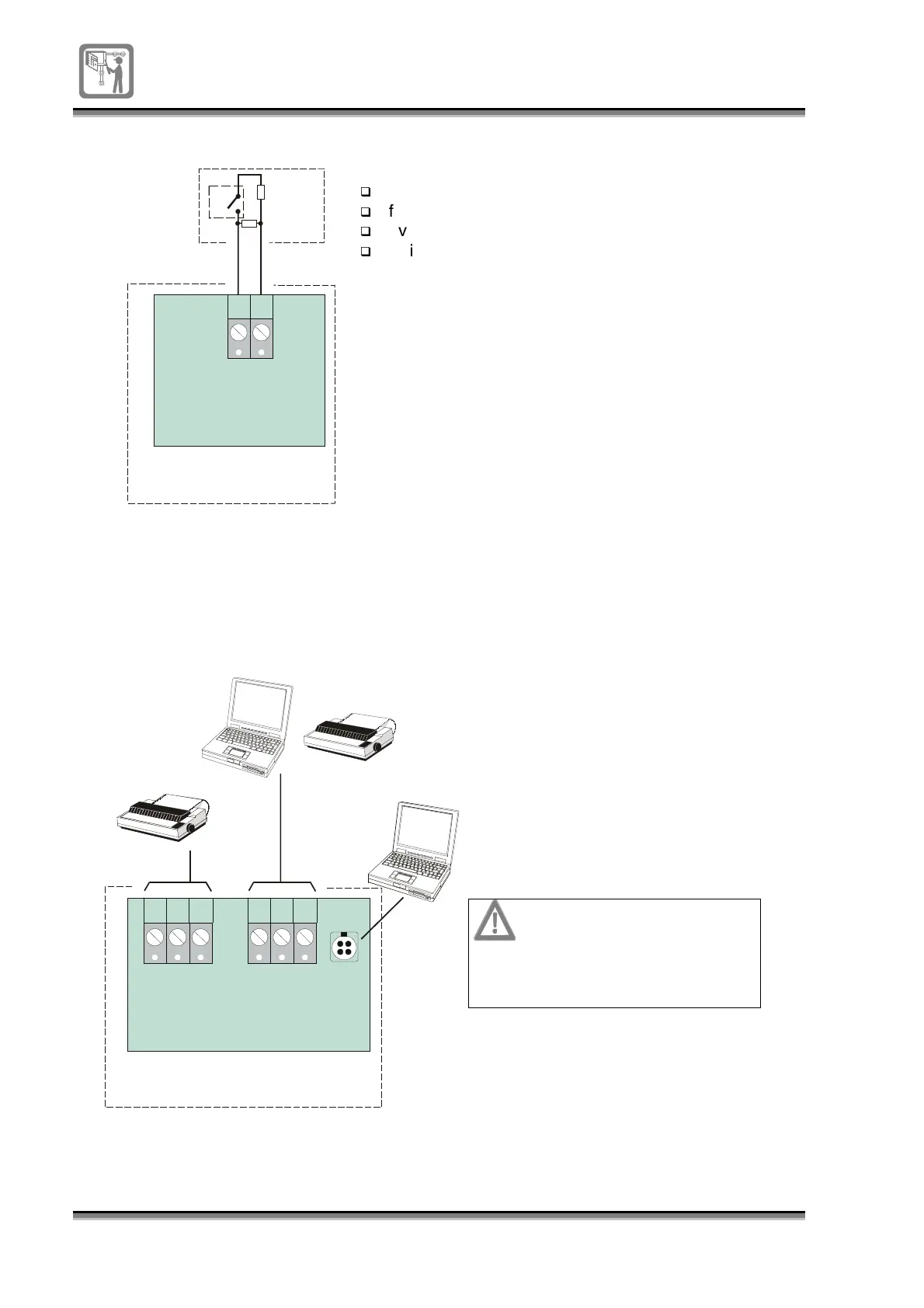

Terminals P2 and P6
share a dedicated RS232
which can be connected
to either a Service PC or Printer
RS232
P2
TX
RX 0V
Printer
(Not yet available)
Service PC
Electronic
Module
Control panel
CLASS
CHANGE
0V
CC
P14
Local Input
(ie Class Chan
g
e
operated b
y
a pro
g
rammer)
10K
The local Input can be confi
g
ured as a
Class Chan
g
e, Fire or Evacuate input.
10K
