Gent System 800 - Repeat Panel Connection; 24 V Power Output

16
796688 (4188-657)_ I1.2 / 02.02

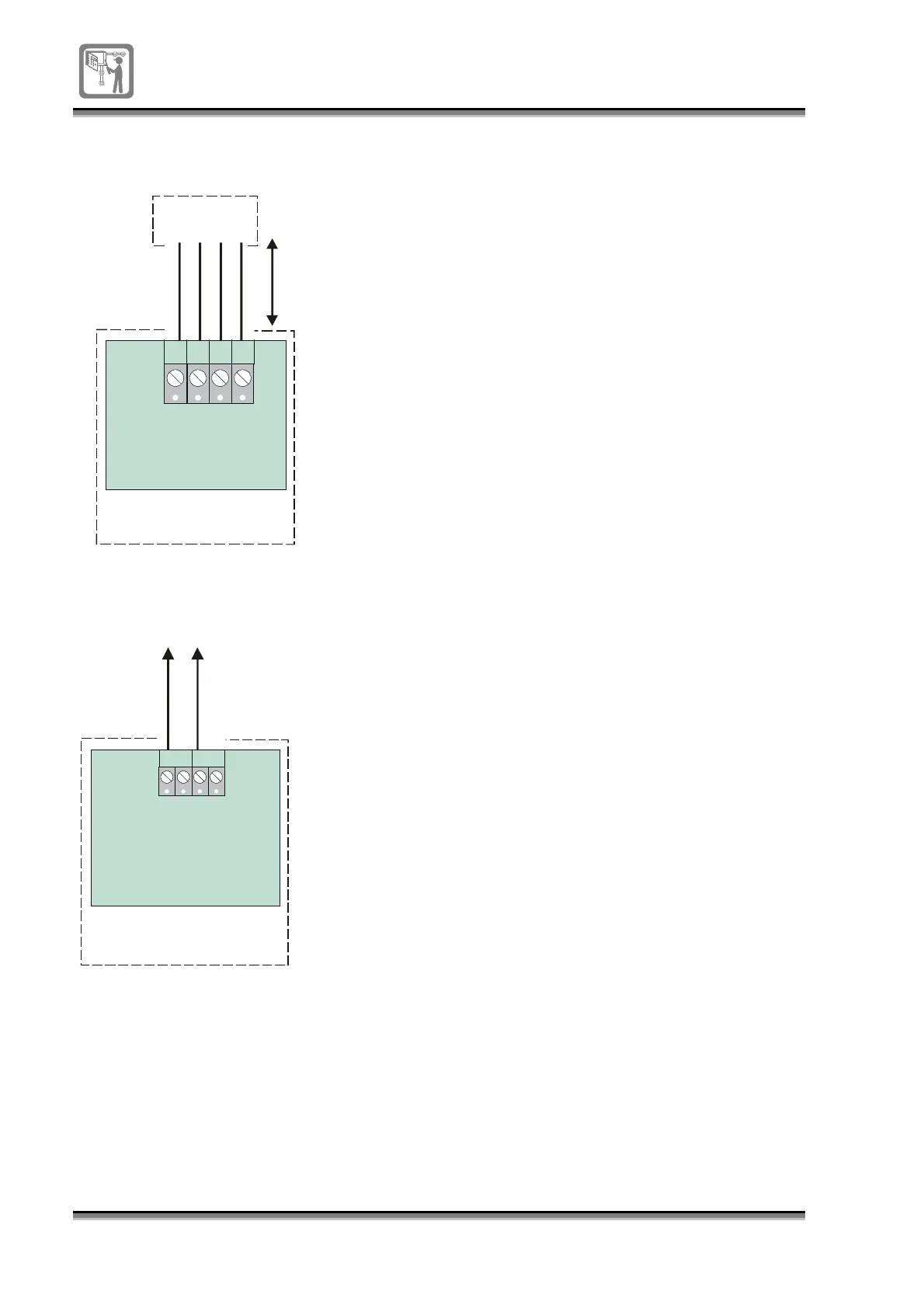

Repeat panel connection
Electronic
Module
Control panel
Dedicated
Repeat panel
RS485
0V
P7
AB
+V
1Km
maximum
cable
distance
This facility is not yet availa ble
The system 800 panel can accept connection of up to two
dedicated repeat panels using the RS485 terminals.
24V Power output
The system 800 panel has a 24V-supply output to supply
power to external equipment. The output will supply 24V
at 0.5A maximum.
Electronic
Module
Control panel
24V 0V
P4
AUX DC SUPPLY
24V 0.5A maximum output
