GA5000 gas ana
lyser
OMGA5KN4.4
Copyrigh
t Geotech
Page
13
of
113

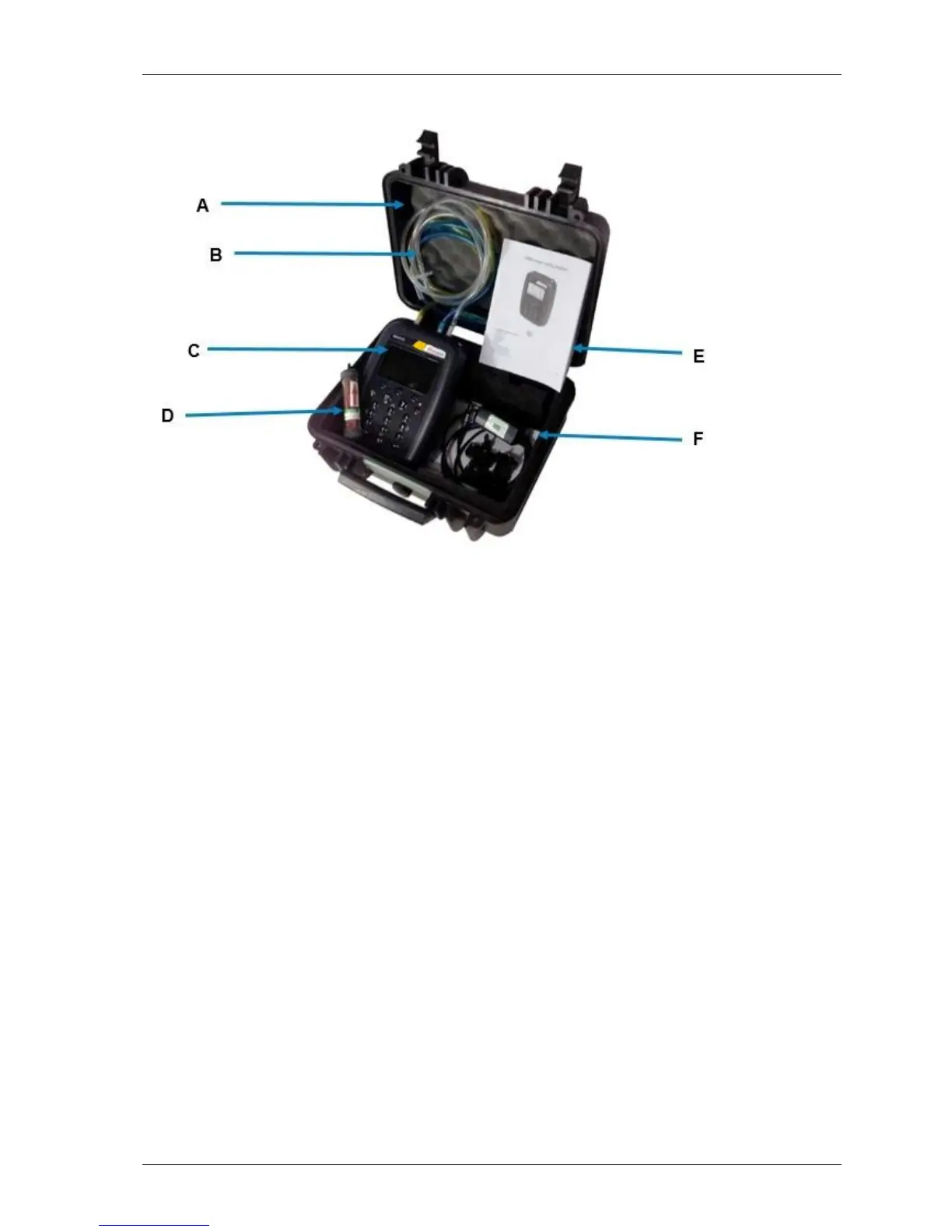

3.2
GA5000 standa
rd product
GA5000
Reference:
A
Hard carr
y
case
B
In
-li
ne water trap tubi
ng & filt
er
C
Gas analyser i
nstrument
D
H2S filter (opti
onal
–
if the compensated CO cell i
s fitted)
E
5000 series safety man
ual
F
Mains battery charge
r and adaptors:
-
UK
-
Europe
-
US
-
Australi
a
12
14
Table of Contents
Operating Manual
1
Table of Contents
2
Manual Guidelines
5
Hazard Warnings and Safety Symbols
5
Notes
5
Introduction
5
Safety Instructions
6
Instructions for Safe Use
6
Mcerts
8
Ciria
9
EU Declaration of Conformity
10
The Ga5000 Gas Analyser
12
The GA5000
12
GA5000 Standard Product
13
Ga5000 Optional Products and Accessories
14
Optional Products
14
Temperature Probe (Optional)
14
Anemometer (Optional)
14
H 2 S Filter (Optional)
14
Gas Analyser Manager - GAM (Optional)
15
GPS (Optional)
15
Bluetooth
15
Internal Flow (Optional)
15
Instrument Accessory Products
16
Ga5000 Instrument Features
17
Physical Characteristics of the Instrument Panel
17
Analyser Features and Keys
18
Instrument Connection Points
19
General Operational Instructions
20
Switching the Instrument on
20
Power on Self-Test
20
Switching the Analyser off
20
Instrument Status Icons
21
Instrument LED Power States
22
Changing between Parameters
22
Entering Data
22
Instrument Main Gas Read Screen
23
Storage
23
Battery/Charging
23
Cleaning Instructions
24
Memory
24
Warning and Error Codes
25
Remote Updates
25
What You Need
25
Registration
25
Installation of the 5000 Updater Software
25
Installation of XP Drivers
26
Installation of Vista and Win 7 Drivers
26
Updating the Analyser
26
Update from File
27
Operator Settings
28
Menu Key
28
Device Settings
28
Date and Time
28
Bluetooth
29
Device Information
30
Diagnostics
30
Navigation (Optional)
31
User Settings
32
Operating Language
32
Units of Measurement
33
ID Selection
34
Routes
36
Adjust Backlight
36
Adjust Volume
37
User Prompts
38
Operation Settings
38
Timers
39
Gas Check
39
View Data
40
Set Alarms
41
Adjust Flow Fail
42
Technician Login
43
Exit Menu
44
Taking Readings
45
Preliminary Checks before Taking Readings (Best Practice)
45
Creating an ID
46
Answering Site Questions
46
Answering ID Questions
47
Special Action
47
Configuration of the Data Logging Option
48
Profiling Option
49
The Gas Flow Measurement Screen
49
How to Use the Internal Flow (Optional)
50
How to Use an Anemometer (Optional)
52
How to Use an H2S Filter (Optional)
54
Cross Gas Effects on Chemical Cells
54
Cross-Gas Effects on Methane, Carbon Dioxide and Oxygen
55
How to Use a Temperature Probe (Optional)
57
How to Identify a Borehole Using the GPS Feature (Optional)
58
Taking Gas and Flow Measurement
60
Calibration
62
Calibration Introduction
62
Frequency of Calibration - Best Practice
62
Calibration Gases
63
Calibration Set-Up
63
Calibration Equipment
64
Gas Analyser
65
Calibration Processes - Best Practice
65
Gas Check in Fresh Air
66
Calibration - Mixtures 1, 2 & 3
67
Restore to Factory
68
Calibration History
68
Calibration Summary
68
Problem Solving
69
Warning and Error Display
69
Service
70
Warranty Policy
71
Important Notice to All Customers
72
Appendices - Safety Instructions
73
Instructions for Safe Use - Italian Language
73
Instructions for Safe Use - German Language
79
Instructions for Safe Use - French Language
85
Instructions for Safe Use - Spanish Language
91
Instructions for Safe Use - Portuguese Langauge
97
Instructions for Safe Use - Chinese Language
99
Instructions for Safe Use - Polish Language
103
Instructions for Safe Use - Romanian Language
106
Glossary of Terms
109
