OMGA5KN4.4 GA5000 gas analyser
Page 30 of 113 Copyright Geotech
3) Enter the ‘Pairing PIN’ value when prompted by your computer for the device’s
pairing code.
4) Select soft-key ‘Exit’ to exit the screen and return to the ‘Device Settings’ menu.
7.2.3 Device information
This option displays default instrument information and settings such as
serial number, service due date, last zero calibration date and last span
calibration date.
1) Select the ‘Menu’ key on the front of the analyser to display the ‘Device Settings’
menu.

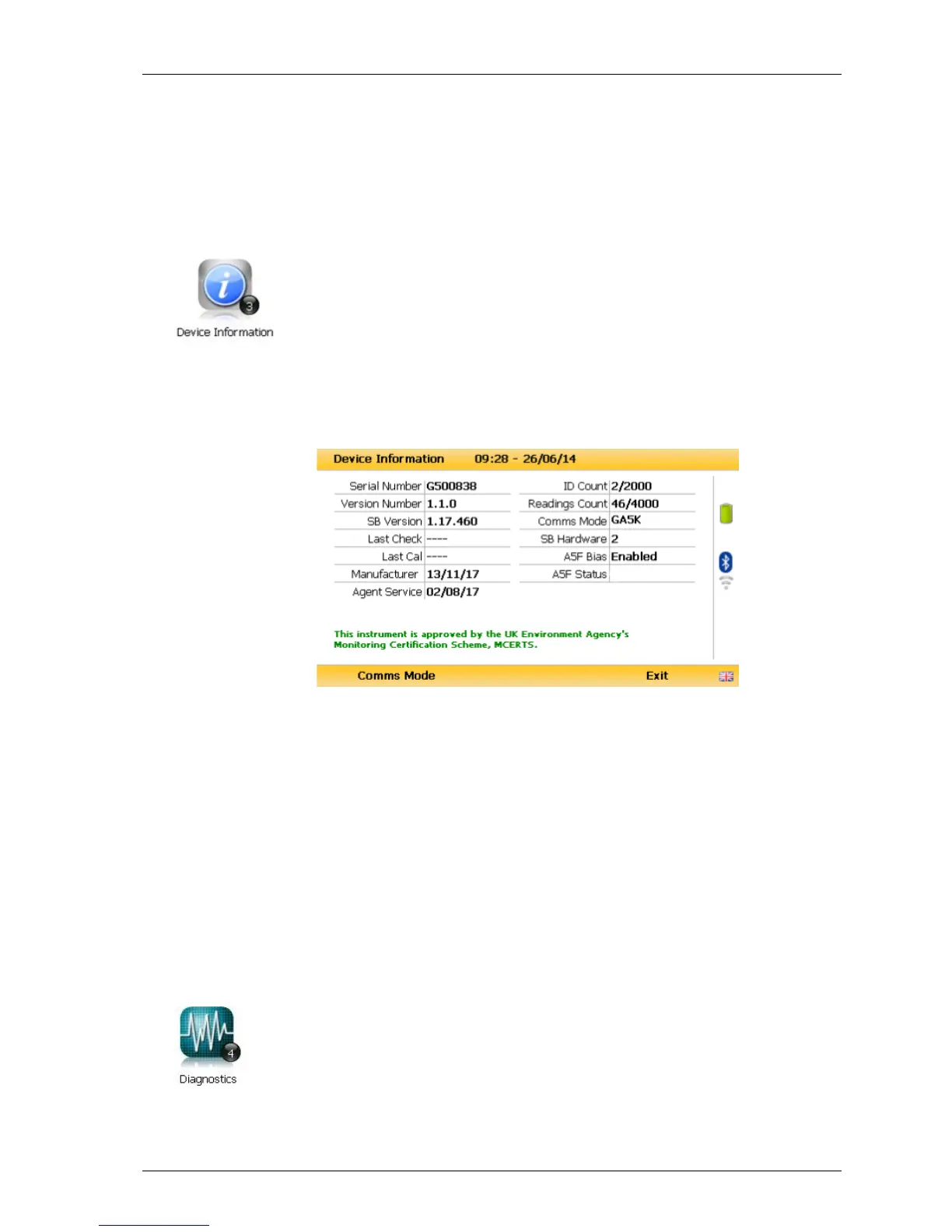

2) Select ‘Key 3 – Device Information’ and the following screen is displayed:
Device information
3) The information displayed on this screen is informational only and cannot be edited
by the operator. The operator may be asked serial number, service due date and
version number information when contacting Geotech.
Note: The communications setting ‘Legacy’ mode is for use with GAM >=v1.5.
GA5K mode is reserved for future applications – use with 5000 series
updater tool
4) Select soft-key ‘Exit’ to exit the screen and return to the ‘Device Settings’ menu.
7.2.4 Diagnostics
This option enables the Geotech Technical Support Team to identify and resolve
issues with the instrument and settings. If required, the operator may be
asked to confirm the diagnostics displayed.
1) Select the ‘Menu’ key on the front of the analyser to display the ‘Device Settings’
menu.
