Geotech GA5000 User Manual

GA5000 gas analyser OMGA5KN4.4
 Copyright Geotech Page 19 of 113

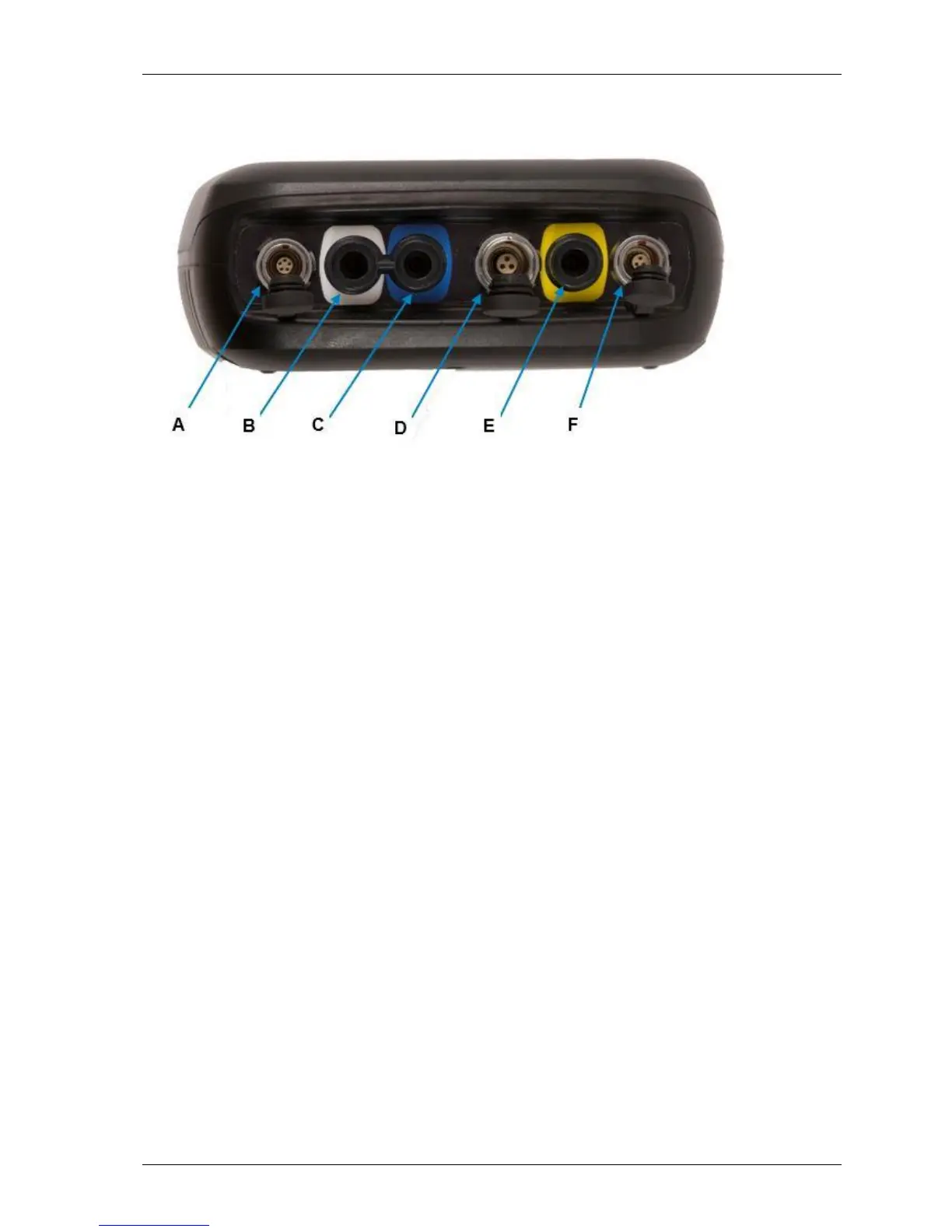

5.3 Instrument connection points
Top view:
Ref:
Connection Point:
Function:
A
Connector A
Attach the USB lead for PC-to-analyser
connectivity.
B
Inlet Port & Static Pressure Port
(White port)
Attach the sample tube to take a gas sample.
Also used to measure the relative pressure.
C
Differential Pressure Port
(Blue port)
Attach the sample tube to measure internal
flow.
D
Connector B
Attach the temperature probe and also used
to attach the mains charger to the analyser
for charging.
E
Gas Outlet Port
(Yellow port)
The gas outlet port is the point at which the
sample gas is expelled. Tubing may also be
attached to the port.
F
Connector C
Attach the anemometer.
