Bullet Camera

9.4 Installation

These instructions describe the basic installation of the Bullet Camera.

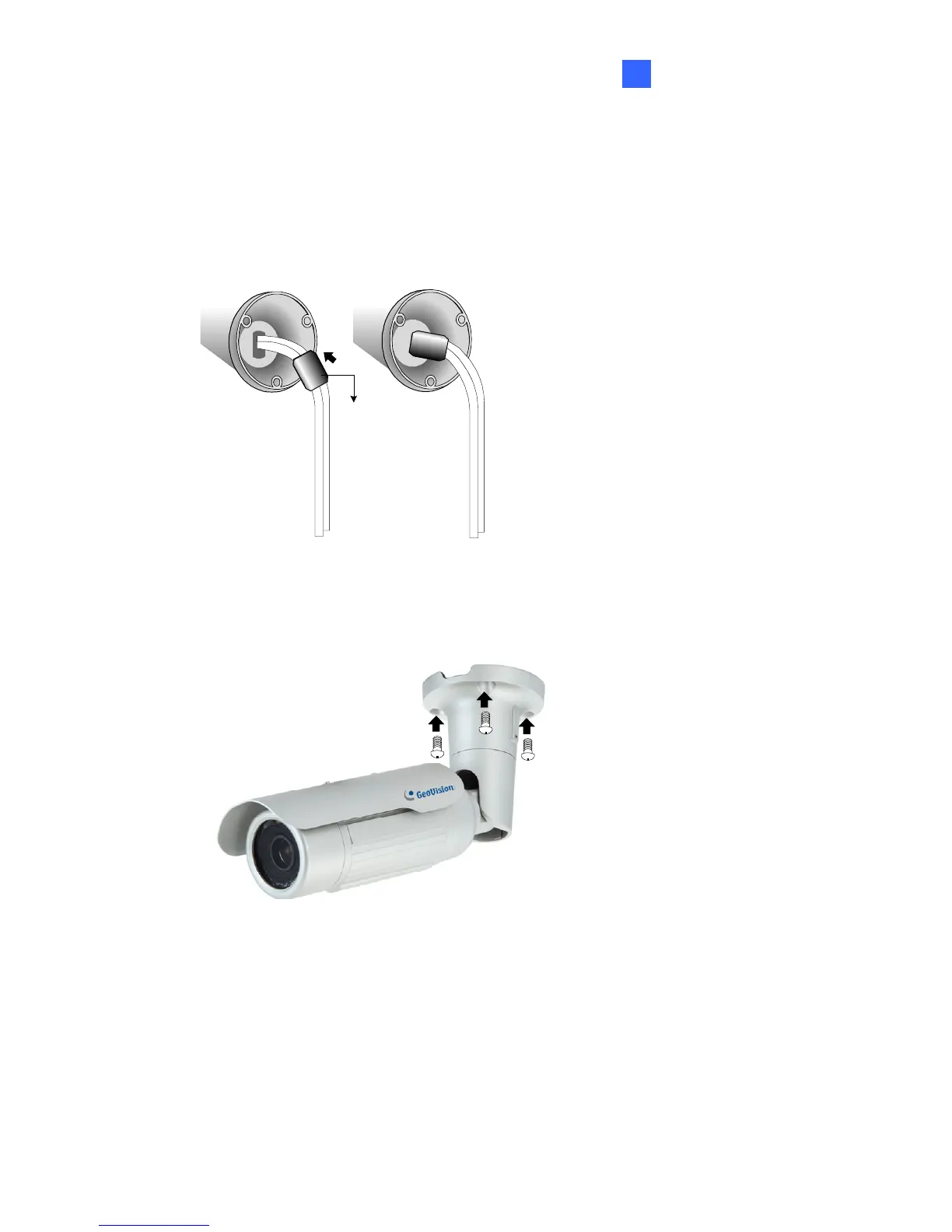

1. Slide the cable clamp to the camera base.

Cable Clamp

Figure 9-2

2. Install the Bullet Camera to the wall.

Figure 9-3

3. Remove the protection sticker from the camera’s cover

4. Connect the power, network and other wires to the Bullet Camera.

See 9.4.1 Connecting the Camera.

111
