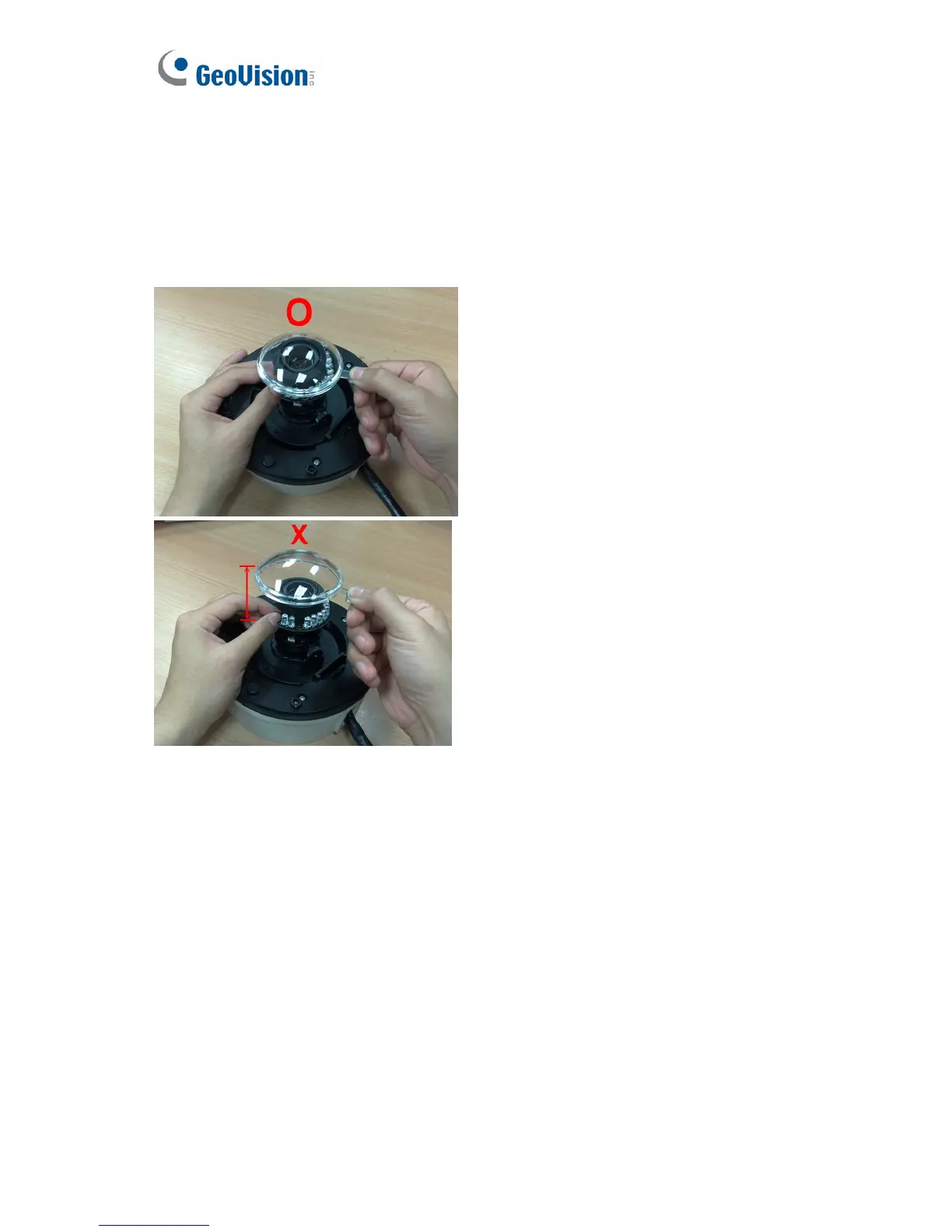

19.2.1 Using Focus Adjustment Cap

The Focus Adjustment Cap is only supplied for IK10+ models (GV-VD120D

/ 121D / 220D / 221D / 320 2500 / 3400 / 1530 /

2430 / 2530 / 3430).

D / 321D / 1500 / 2400 /

Hold the Focus Adjustment Cap

on top of the camera view and

keep it close to the camera.

Do not leave a distance between

the Focus Adjustment Cap and

the camera.
