15.5 Connecting the Camera
Connect your Vandal Proof IP Dome to power, network and other wires
needed.
15.5.1 Power Connection
There are two ways to supply power to the camera:
• Use a Power over Ethernet (PoE) adapter to connect the camera to the
network, and the power will be provided at the same time.
• Plug the power adapter to the terminal block by inserting the wire with
white lines to the right pin and the other wire to the left pin.

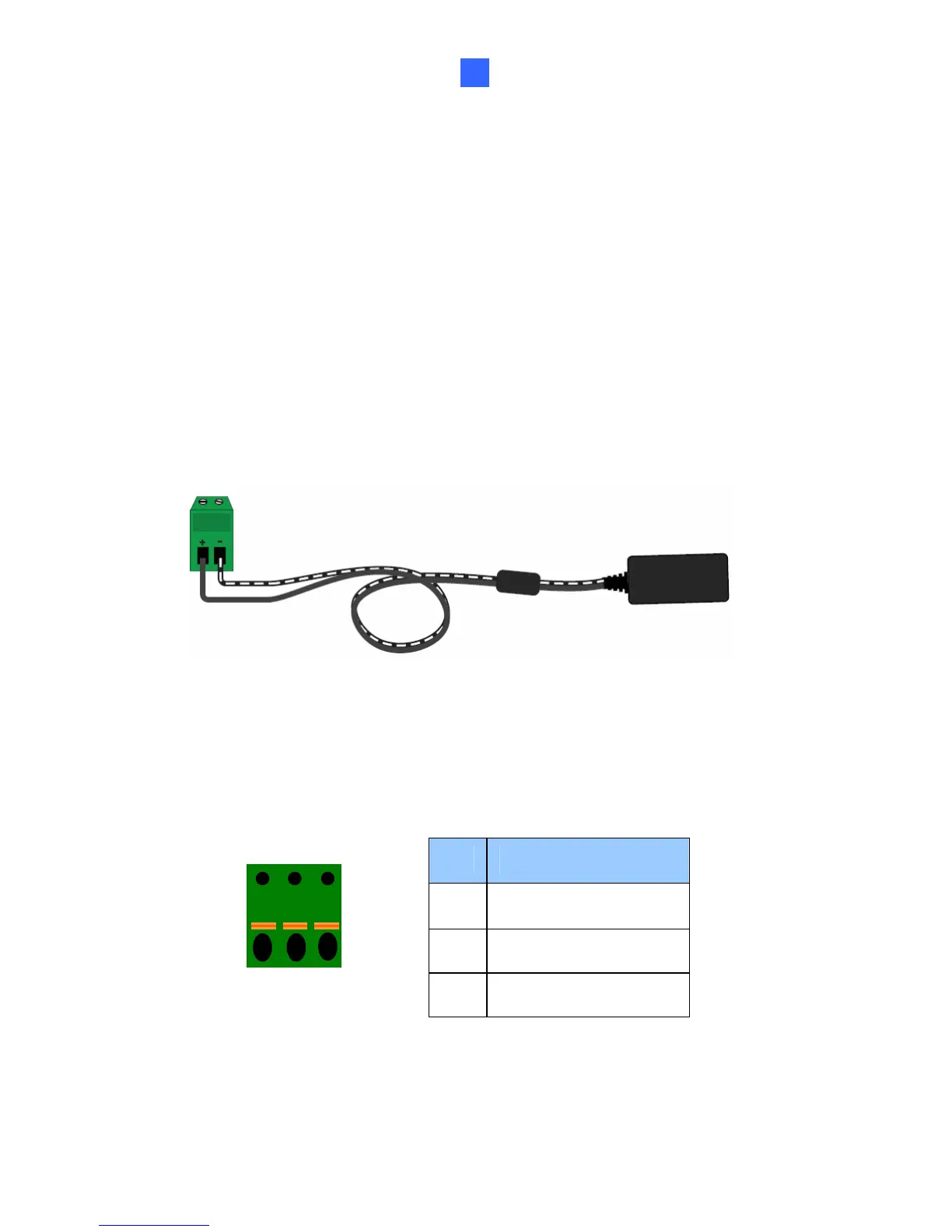

Figure 15-16
15.5.2 I/O Device Connections
The camera supports one digital input and one digital output of dry contact.
Pin Function
1 Digital Output
2 GND
I/O
1
2
3
Figure 15-17
3 Digital Input
For details on how to enable an installed I/O device, see 21.2 I/O Settings.
