23.1.1 Using the Web Configuration Interface

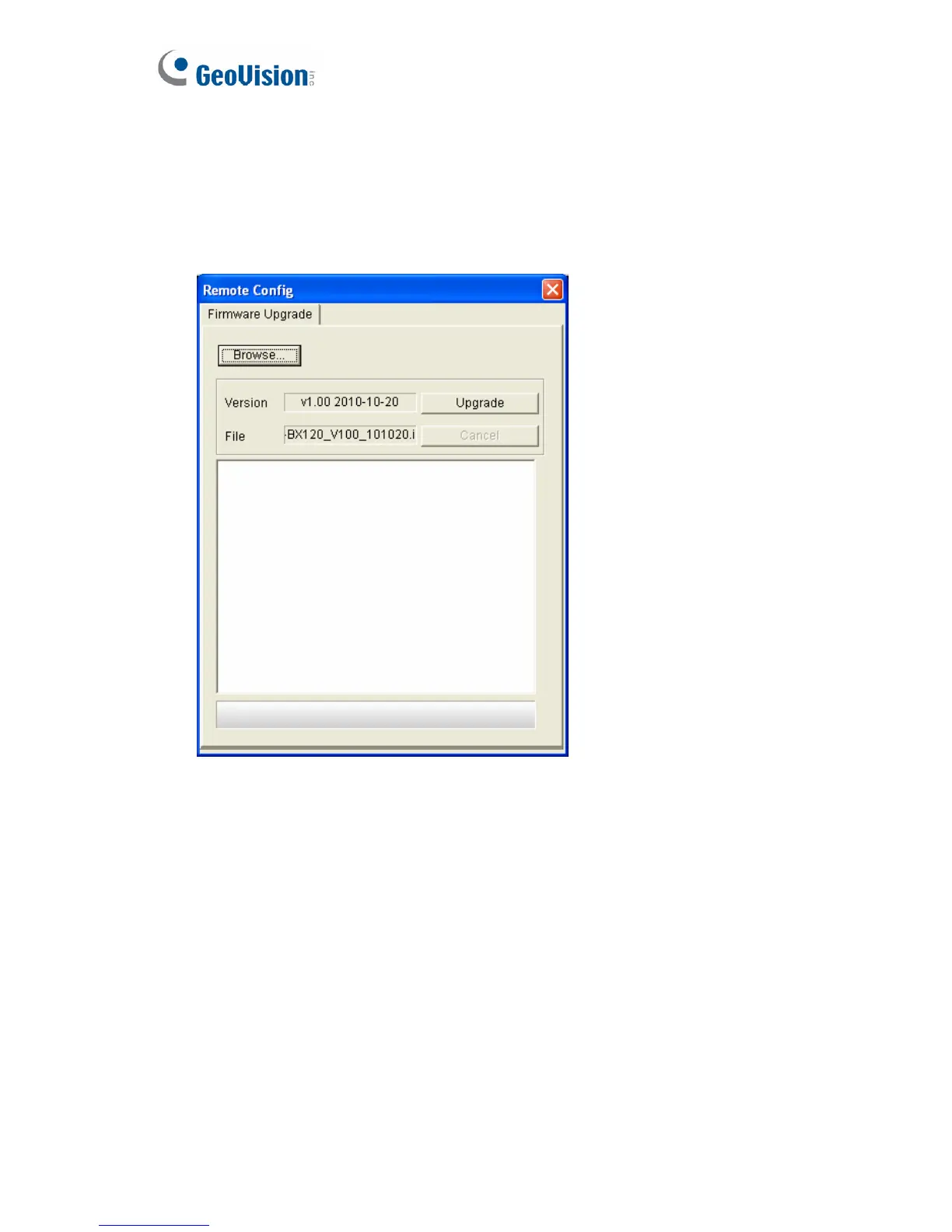

1. In the Live View window, click the Show System Menu button (No. 8,

Figure 20-3) and select Remote Config. This dialog box appears.

Figure 23-2

2. Click the Browse button to locate the firmware file (.img) saved at

your local computer.

3. Click the Upgrade button to start the upgrade.

414
