21.7 Network

The Network section includes some basic but important network

e the camera to be connected to a TCP/IP

21.7.1 LAN Configuration

According to your network environment, select among Static IP, DHCP and

PPPoE.

configurations that enabl

network.

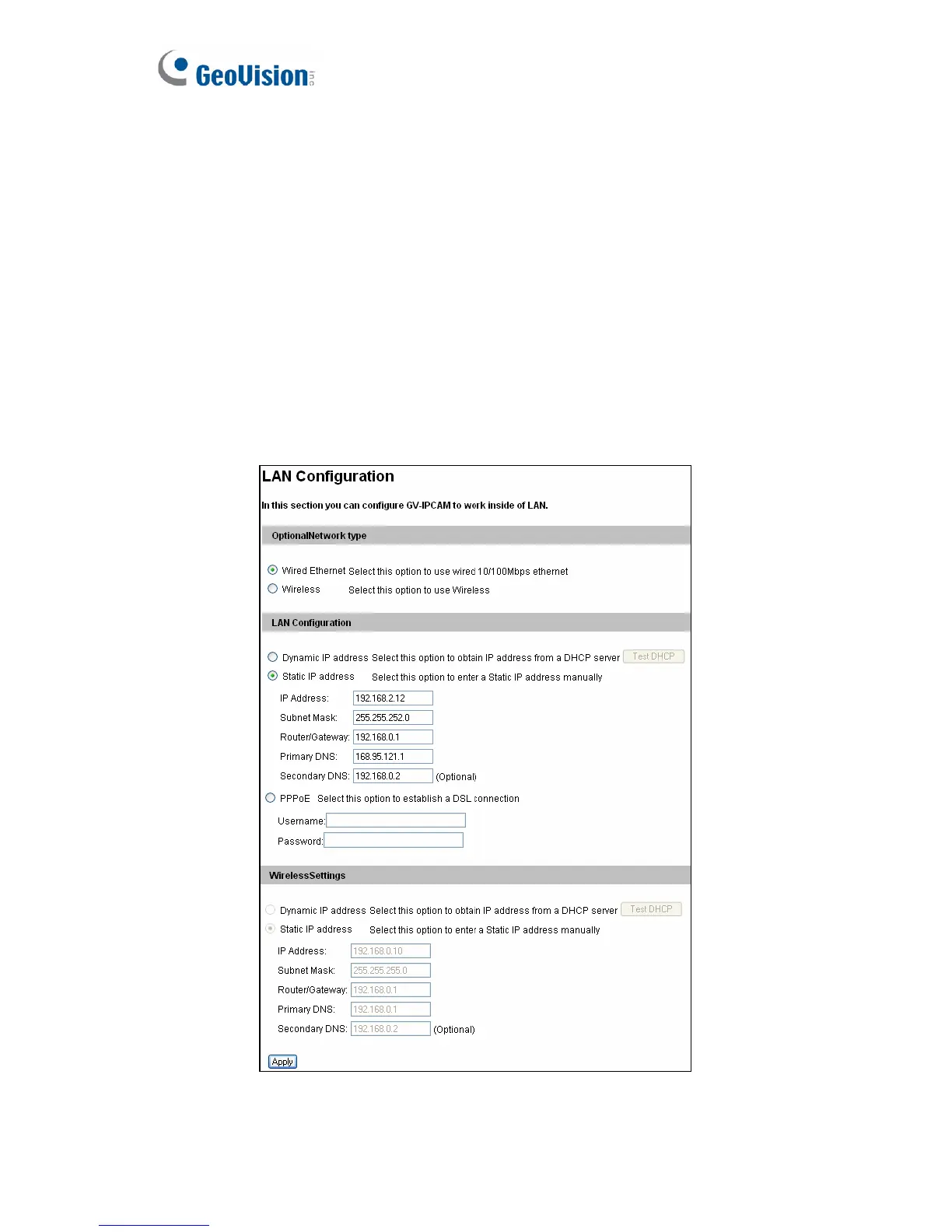

Figure 21-27
