ProfiLux 4 Resource Guide
EN 2018-13-11 106

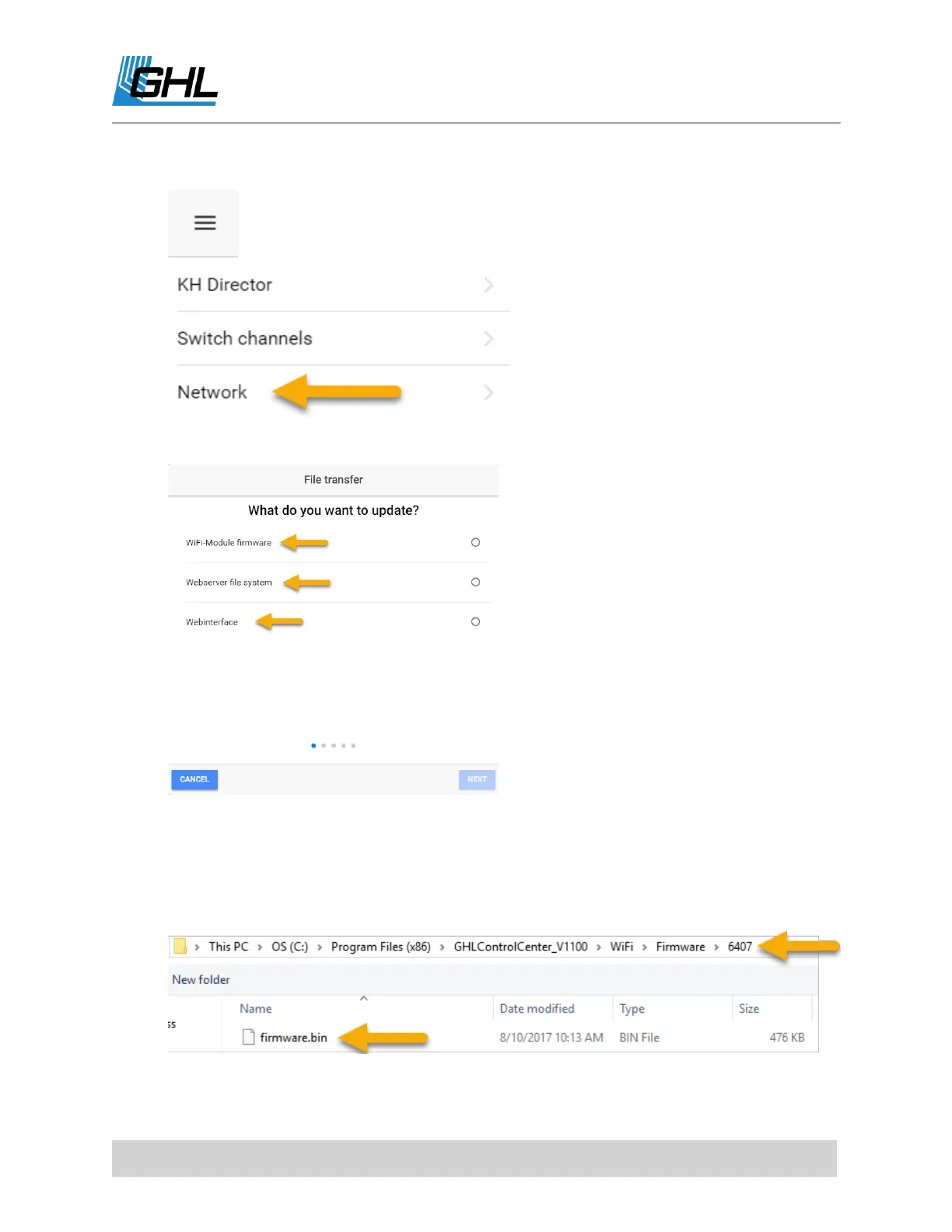

3. Click on the MENU icon, select NETWORK.
4. Select FILE TRANSFER
5. Select desired type of update
6. Navigate to the location of the firmware file. This will be located within the GCC
directory folder. Select the correct firmware file.
WiFi module: firmware.bin
Web interface: index.html.gz
Web server: spiffs.bin
7. Follow prompts to proceed with the update.

GHL ProfiLux 4 Specifications

General

Model	ProfiLux 4
Category	Controller
Power Supply	12V DC
pH Ports	2
Redox Ports	1
Conductivity Ports	1
Level Ports	4
Digital Inputs	4
12V Outputs	4
Real-time clock	Yes, with battery backup
Digital Outputs	4
Expandable	Yes
Connectivity	USB, Wi-Fi, LAN
Display	Graphic LCD display
Expansion Slots	4
Processor	32-bit
Channels	16
Operating Temperature	0°C to 50°C
