ProfiLux 4 Resource Guide
EN 2018-13-11 112
ASSIGN THE 2
nd
PL FUNCTION TO A POWERBAR OUTLET
1. Go to the SWITCH CHANNELS AND OUTLETS settings page and select the Powerbar
outlet that has the skimmer connected to it.
2. Set this function to PROGRAMMABLE LOGIC and select the
Gate
number you used when
you created the 2
nd
PL function.
3. Type-in a description and click OK.
4. Click SAVE CHANGES.

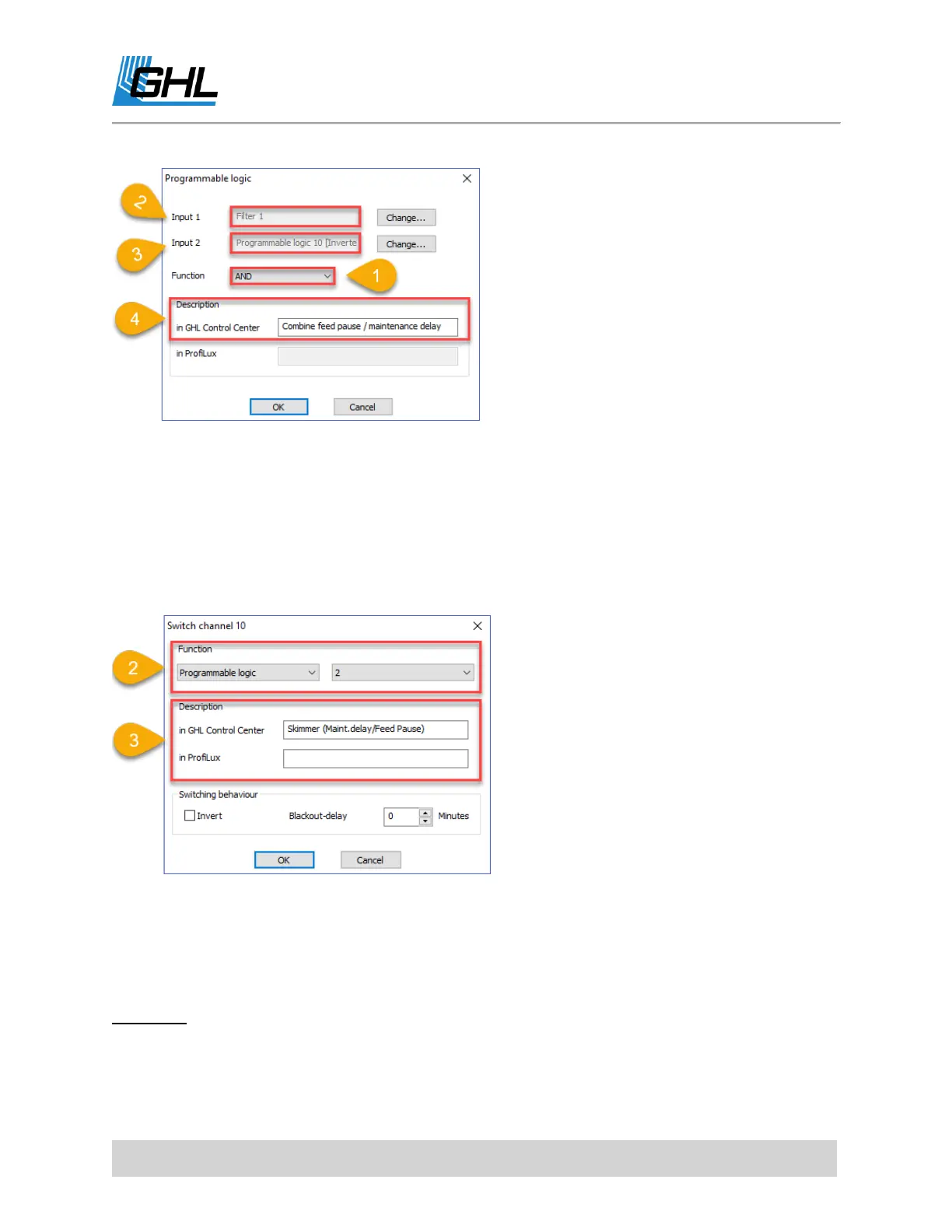

Combining Feed Pause AND Leakage Detection (Using AND
function)
Scenario: If you want to turn off the skimmer during a feed pause AND also turn it off if the
sump water level gets too high, you will want to combine these two functions by using the
Programmable Logic (AND) function.
Here’s how to combine a Feed Pause and Leakage Detection function using the AND function:
