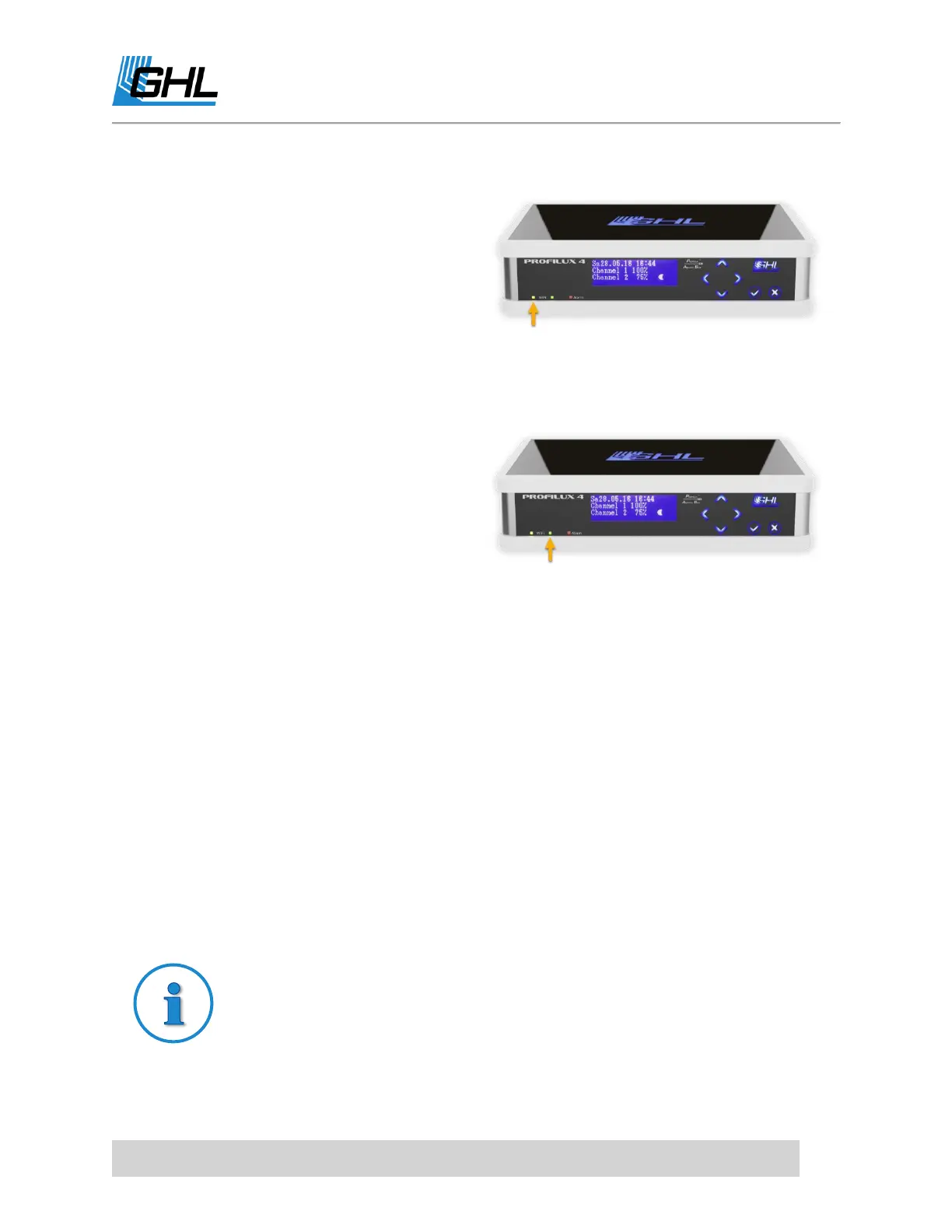

YELLOW LED is ON: A device is connected
directly to the ProfiLux 4’s hotspot via Access
Point (AP).
YELLOW LED flashes: ProfiLux 4 is actively
communicating with connected device.
GREEN LED is ON: ProfiLux 4 is connected to
an existing Wi-Fi network.
GREEN LED flashes: ProfiLux 4 is actively
communicating within the connected network.
BOTH LEDs are OFF: ProfiLux 4 has no Wi-Fi
connection
TO DO: Unpack and connect all cables to the P4
Carefully open up your ProfiLux 4 and unpack all the contents that are included in the box.
Make sure that all parts are included. The list of included parts are shown on the product box.
 Find a suitable spot for your ProfiLux 4
 Connect all your probes to the correct BNC ports. Each port is labeled so please look at
what ports you will be connecting accessories to BEFORE you actually connect them.
 Connect your Powerbar5.1 to the PAB port, labeled as PAB .
 (Ultimate-set only) Connect your ProfiLux Touch to the Touch Interface. Connect the
Touch Interface to an available PAB-port either on the P4 itself or on another PAB-
device such as Powerbar5.1.
 Apply power to the ProfiLux 4, Powerbar 5.1, and ProfiLux Touch (Ultimate-set only)
NOTE
When you turn on the ProfiLux 4 for the first time, there may be alarms
going off. Disregard these for now, they will be addressed later.

GHL ProfiLux 4 Specifications

General

Model	ProfiLux 4
Category	Controller
Power Supply	12V DC
pH Ports	2
Redox Ports	1
Conductivity Ports	1
Level Ports	4
Digital Inputs	4
12V Outputs	4
Real-time clock	Yes, with battery backup
Digital Outputs	4
Expandable	Yes
Connectivity	USB, Wi-Fi, LAN
Display	Graphic LCD display
Expansion Slots	4
Processor	32-bit
Channels	16
Operating Temperature	0°C to 50°C
