GHL ProfiLux 4 Resource Guide

ProfiLux 4 Resource Guide
EN 2018-13-11 23

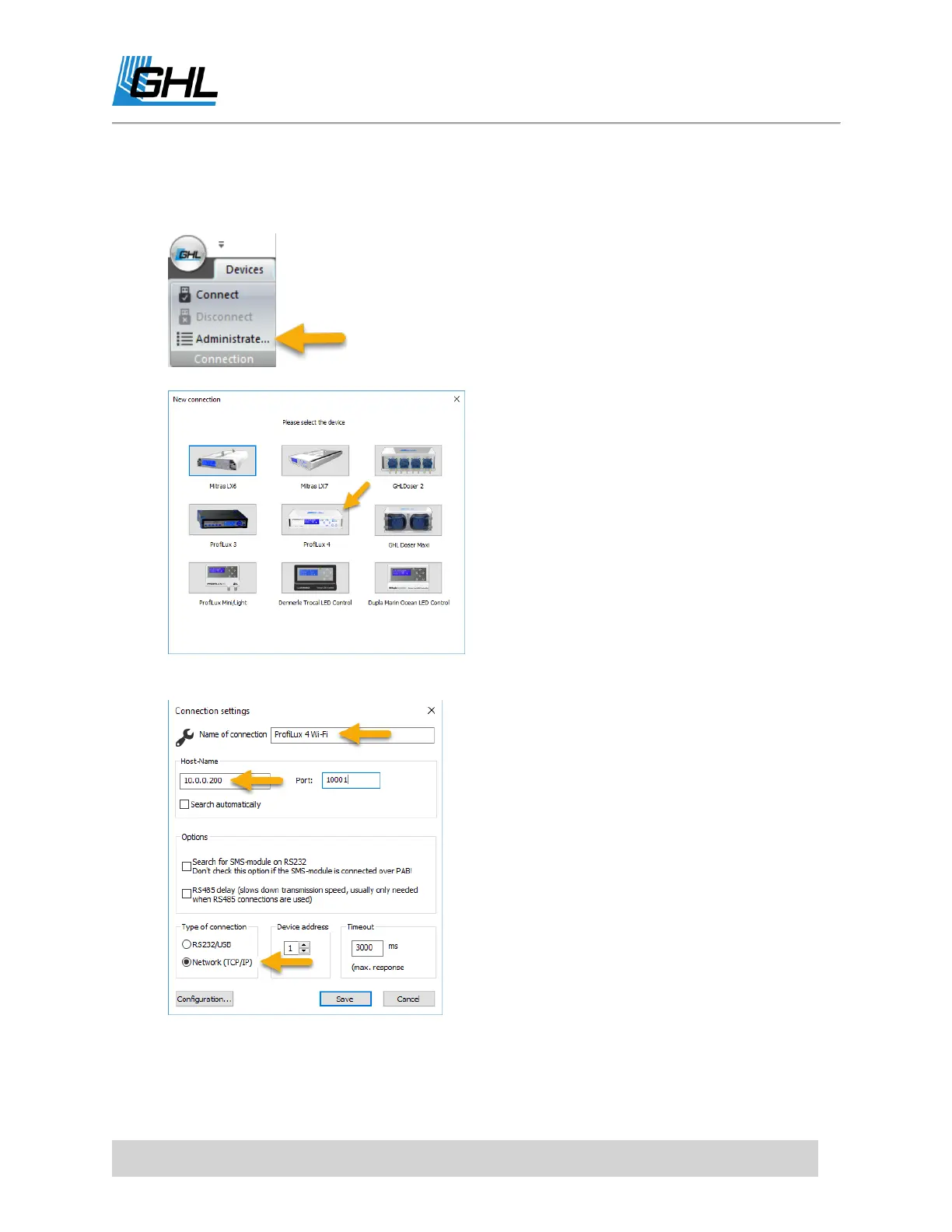

Connect via Wi-Fi using GHL Control Center
1. Open GHL Control Center on your PC and click ADMINISTRATE (see top right of screen).
2. Click NEW, then select the ProfiLux 4.
3. Set type of connection to NETWORK, type-in the IP address of your ProfiLux 4, give this
connection a name (i.e. ProfiLux 4 Wi-Fi), click SAVE.
4. Click CLOSE and you’ll now see the newly added connection. Double-click the new
connection and you’ll be connected to your P4 wirelessly.

GHL ProfiLux 4 Specifications

General

Model	ProfiLux 4
Category	Controller
Power Supply	12V DC
pH Ports	2
Redox Ports	1
Conductivity Ports	1
Level Ports	4
Digital Inputs	4
12V Outputs	4
Real-time clock	Yes, with battery backup
Digital Outputs	4
Expandable	Yes
Connectivity	USB, Wi-Fi, LAN
Display	Graphic LCD display
Expansion Slots	4
Processor	32-bit
Channels	16
Operating Temperature	0°C to 50°C
