GHL ProfiLux 4 Resource Guide

ProfiLux 4 Resource Guide
EN 2018-13-11 6

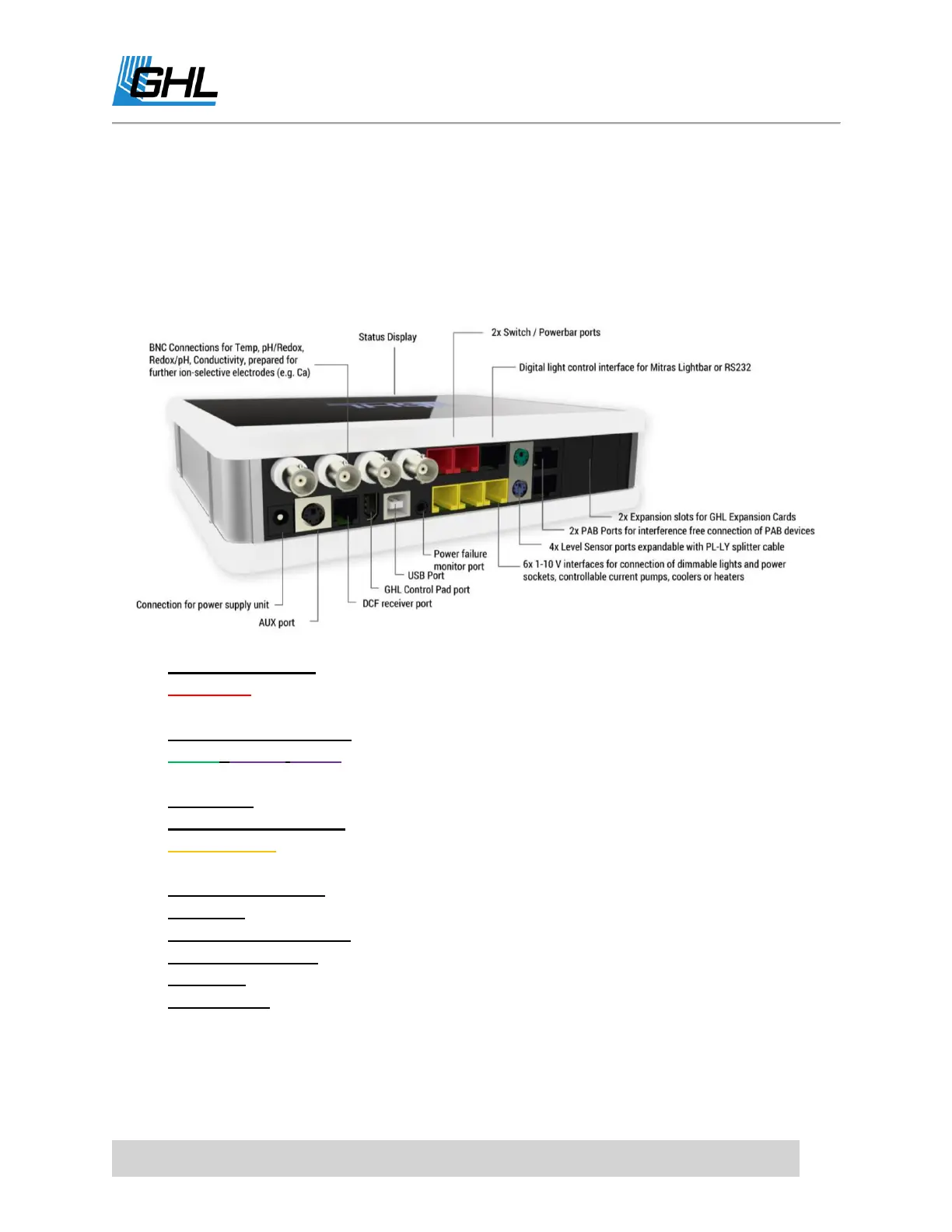

PLEASE READ: ProfiLux 4 connection ports overview
Right out of the box your ProfiLux 4 controller comes packed with many ports for various
purposes ranging from BNC-ports to ports for 1-10v devices. Here is a brief overview of the
ports behind the ProfiLux 4. For more specific information on these ports, please refer to our
ProfiLux 4 Manual; see page 9 Connection Overview .
 BNC Connections: For connecting Temperature, pH, Redox, and Conductivity probes.
 Red ports: For connecting GHL devices such as Gen 1 Dosing pumps, STDL4-4 and
Powerbar6D powerbars. Ports deactivated by default for safety reasons.
 Digital light interface: For connecting Mitras Lightbar LEDs.
 Green/Purple ports: For connecting level sensors such as GHL Flow sensors,
float/optical sensors, leak interface for leak sensors, etc.
 PAB ports: For connecting PAB devices such as Powerbar5.1, Doser 2.1, etc.
 Expansion card slots: Used for adding additional ports to the P4 via expansion cards.
 Yellow ports: For connecting 1-10V compatible devices such as dimmable lighting, flow
pumps, return pumps, etc.
 Power failure port: For connecting a backup power source to the P4.
 USB port: For connecting to P4 via USB connection.
 GHL Control Pad port: For GHL Control Pad device.
 DCF receiver port: For radio controlled clock receiver (For German time)
 AUX port: For future P4 features and upgrades.
 Power port: For connecting primary 12V power source to P4.

GHL ProfiLux 4 Specifications

General

Model	ProfiLux 4
Category	Controller
Power Supply	12V DC
pH Ports	2
Redox Ports	1
Conductivity Ports	1
Level Ports	4
Digital Inputs	4
12V Outputs	4
Real-time clock	Yes, with battery backup
Digital Outputs	4
Expandable	Yes
Connectivity	USB, Wi-Fi, LAN
Display	Graphic LCD display
Expansion Slots	4
Processor	32-bit
Channels	16
Operating Temperature	0°C to 50°C
