GHL ProfiLux 4 Resource Guide

ProfiLux 4 Resource Guide
EN 2018-13-11 26

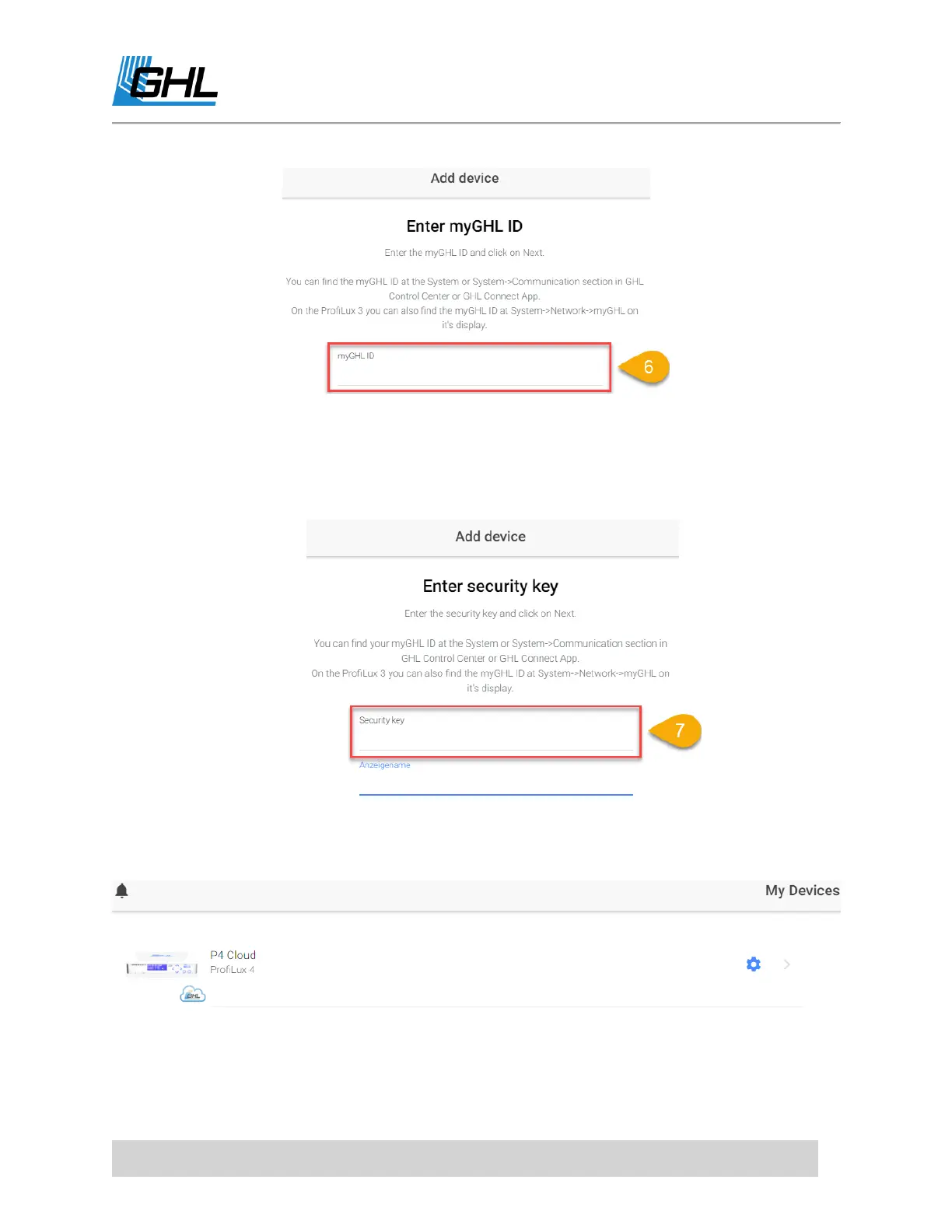

7. Go back to GHL Control Center and copy the Security key shown in your GCC. Paste the
number into the Security key field on myGHL.com.
 The security key shown in your GHL Control Center will be automatically
generated from the myGHL servers and is only shown once your device has been
verified.
8. Give your myGHL device connection a name, then click NEXT and your device will be
added to your myGHL account.
 myGHL Device name example: P4 Cloud

GHL ProfiLux 4 Specifications

General

Model	ProfiLux 4
Category	Controller
Power Supply	12V DC
pH Ports	2
Redox Ports	1
Conductivity Ports	1
Level Ports	4
Digital Inputs	4
12V Outputs	4
Real-time clock	Yes, with battery backup
Digital Outputs	4
Expandable	Yes
Connectivity	USB, Wi-Fi, LAN
Display	Graphic LCD display
Expansion Slots	4
Processor	32-bit
Channels	16
Operating Temperature	0°C to 50°C
