191
Clear disk RAID information:
This function is used to clear the residual RAID information in the disk, so that the disk can be reused
for RAID configuration. This function is often used for disks whose mode is Unconfigured Bad.
Switch the disk mode Unconfigured Bad to Unconfigured Good.
As shown in Figure 6-132, on the Foreign View interface, select the RAID controller card, press F2,
select Foreign Config->Clear, and press Enter.

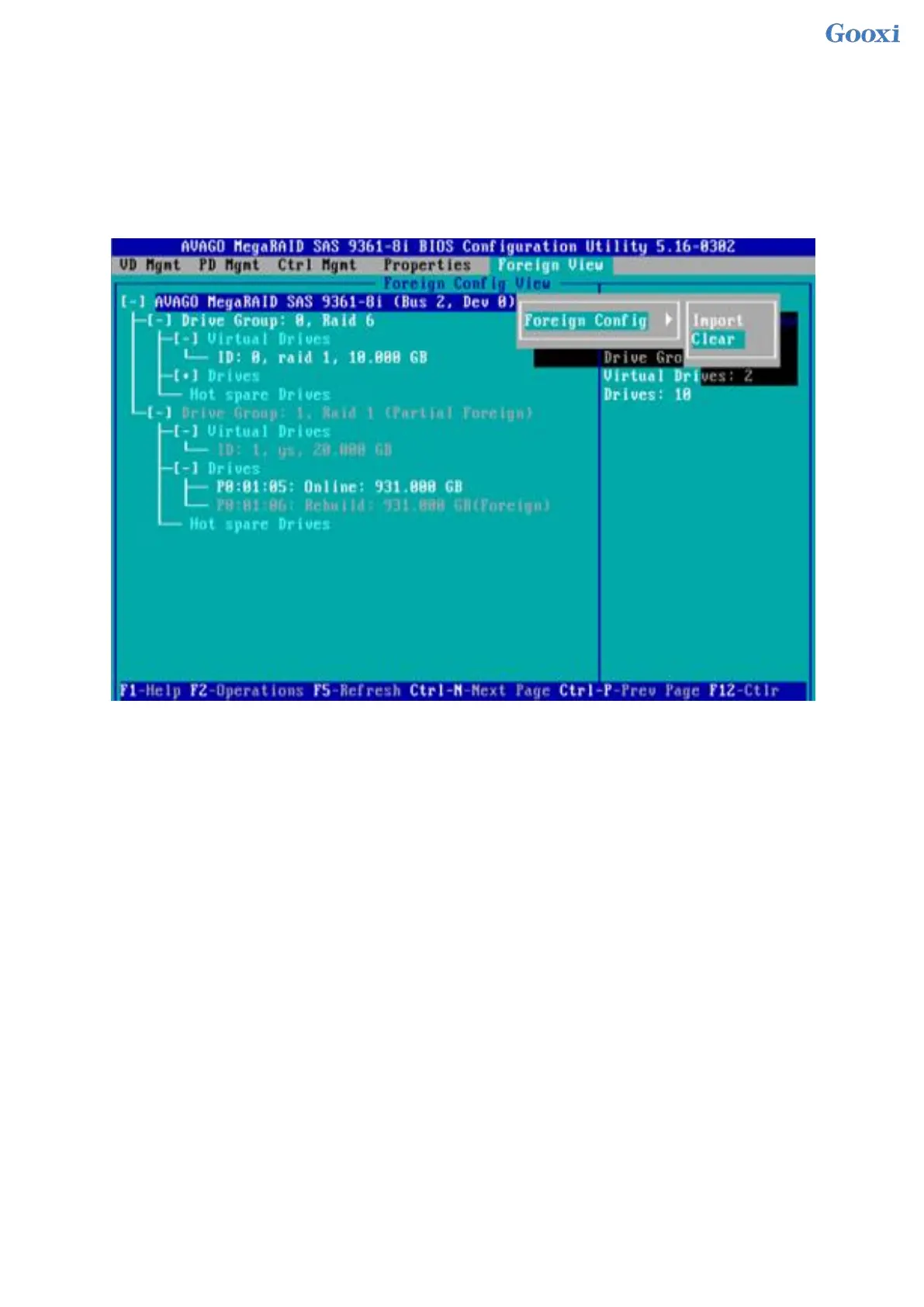

Figure 6-132 Select Foreign Config->Clear
Figure 6- 132
In the displayed dialog box shown in Figure 6-133, select OK and press Enter to complete the operation
of clearing disk RAID information.
Figure 6-133 Confirm Clear
