Gooxi SL201-D08R-G3 - Page 21

21
Front panel port description
Name
Types of
Description
VGA port
DB15
For connecting to a display terminal such as a monitor or KVM.
USB port
USB 3.0
Provides an external USB port via which USB devices can be connected.
Note: When using an external USB device, please make sure that the USB
device is in good condition, otherwise the server may work abnormally.
Table 1- 11

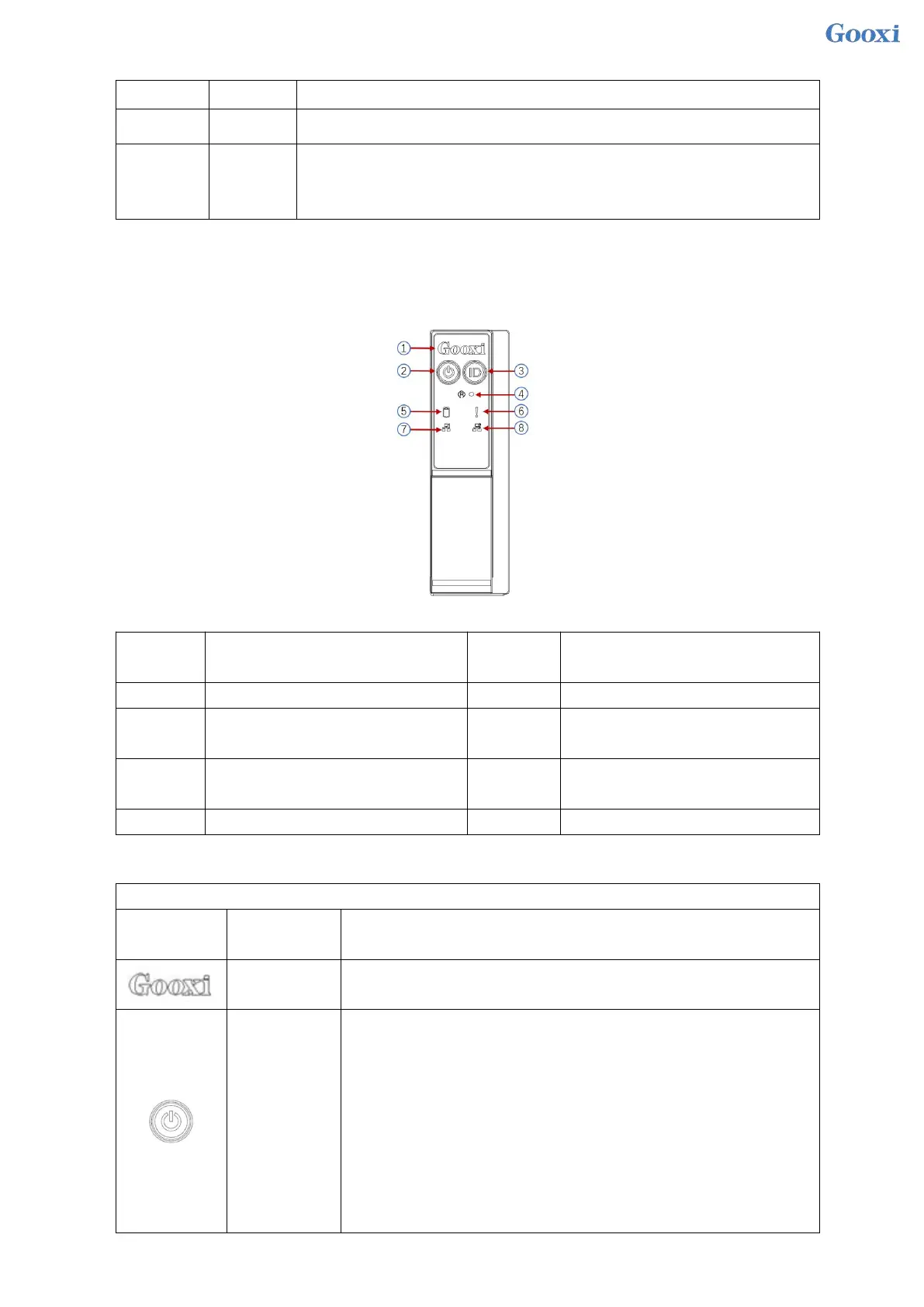

Front Panel Indicators and Button Descriptions
Figure 2- 8
Serial
number
Indicator/Button
Serial
number
Indicator/Button
1
Power switch button/indicator
5
System alarm indicator
2
UID button/indicator
6
Network port 1 connection status
indicator
3
Reset restart server button
7
Ethernet port 2 connection status
indicator
4
Hard disk indicator
Table 1- 12
LED Status Description
Logo
Indicator/
Button
Status Description
GOOXI logo
Power
Indicator
Power indicator description:
Green (on): Indicates that the device is powered on normally.
Green (flashing): Indicates that the device is in standby.
Green off: The device is not powered on.
Power button description:
Short press this button in the power-on state, and the OS shuts down
normally.
Press and hold the button for 6 seconds in the power-on state to
forcibly power off the server.
