31
2
MINI SAS HD High Speed
Connector
For 12G/b SAS or 6G/b SATA signal transmission
3.5
Backplane Snap
Fasten the backplane to the backplane bracket
4
EXPANDER chip
PM8043 SXP 24Sx12G

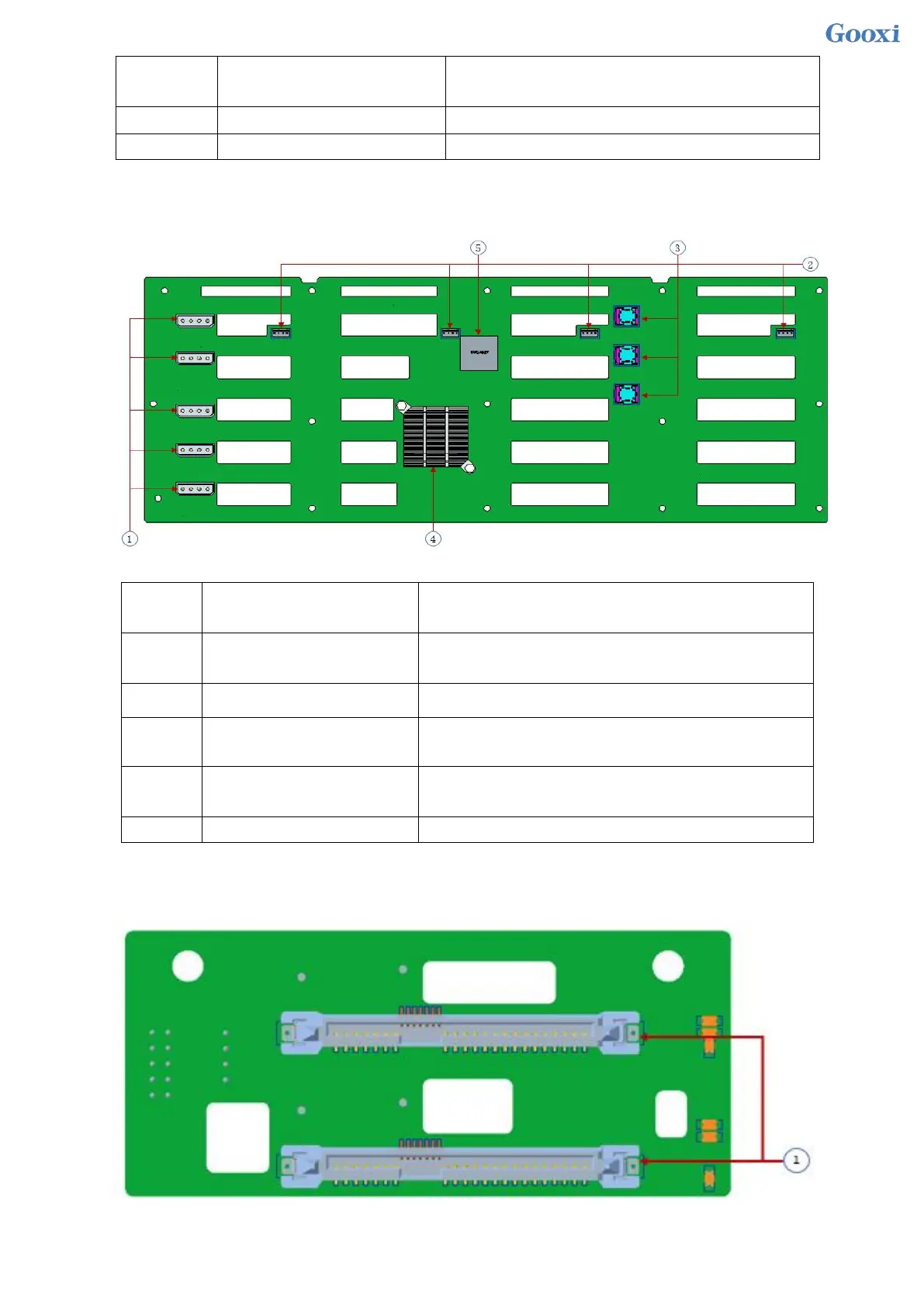

24-bay expansion backplane as shown
Serial
number
Description
Function
1
BP power interface
Backplane power transfer connector for 12V and 5V
power transfer
2
Fan interface
For 4pin fan interface
3
SFF-8643 12Gb SAS port
For 12G/b SAS or 6G/b SATA signal transmission
4
Expander Chip Controller
PM8043 SXP 24Sx12G
24-port 12G SAS Expander
5
CPLD
For data logic processing
Rear SAS/SATA backplane as shown
TOP view:
Figure 2- 18
