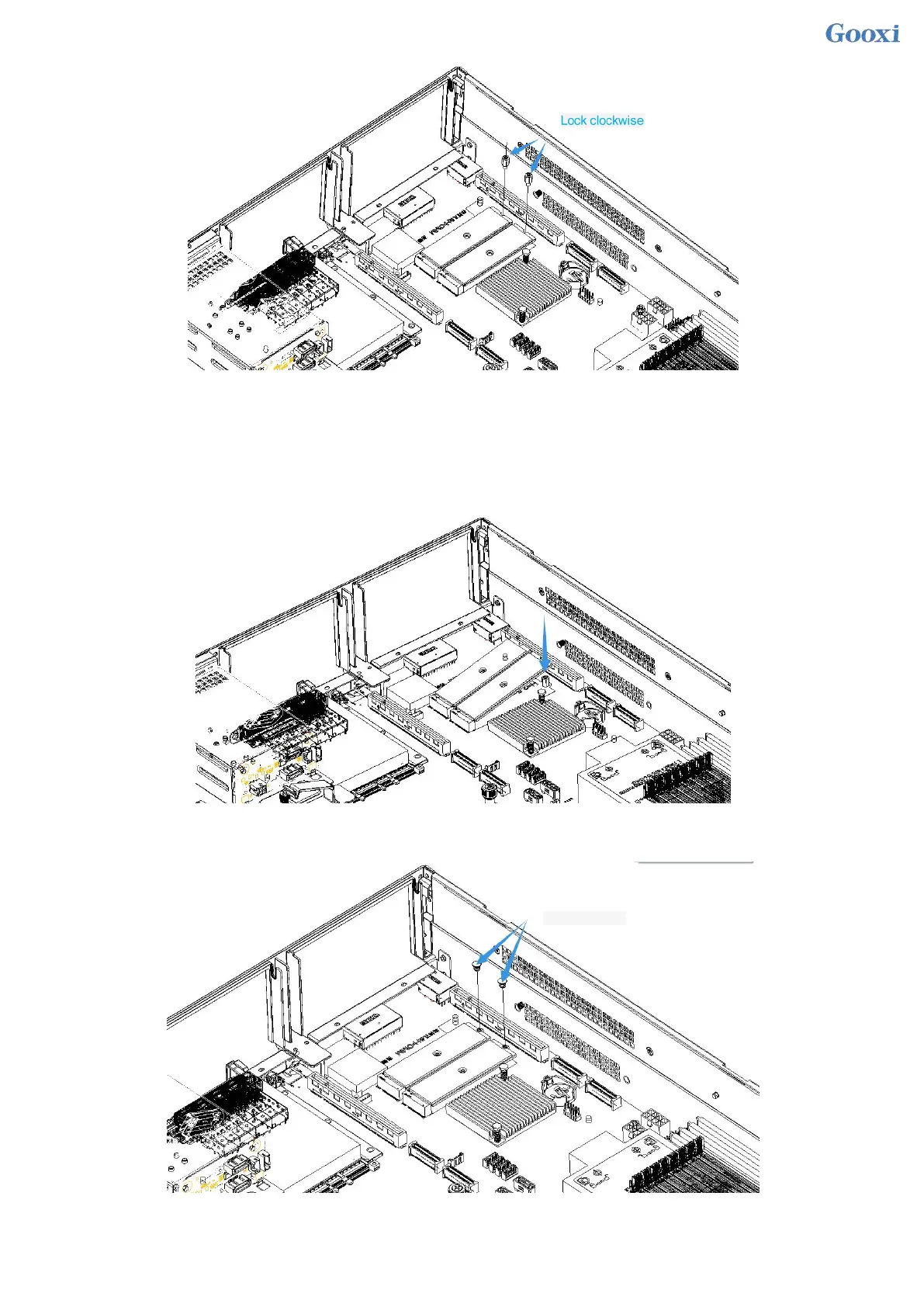

Figure 3- 14
Step 2: Install the M.2 Card
1. Insert the M.2 card connector end into the motherboard connector as shown in the illustration.
2. Press the other end of the M.2 card to the plane of the positioning stud in step 1.
Figure 3- 15
Step 3: Install the fixing screws of the M.2 card.
Figure 3- 16
Lock clockwise
