Using the machine
5. Place the wedding ring in position such that the mid-point of the engraving area is aligned with the
positioningaidarrow:
- down for inside engraving
- up for outside engraving
Thepositioningaidarrowmustbeperfectlyverticalandpointingdownwards.
4
2
1
3

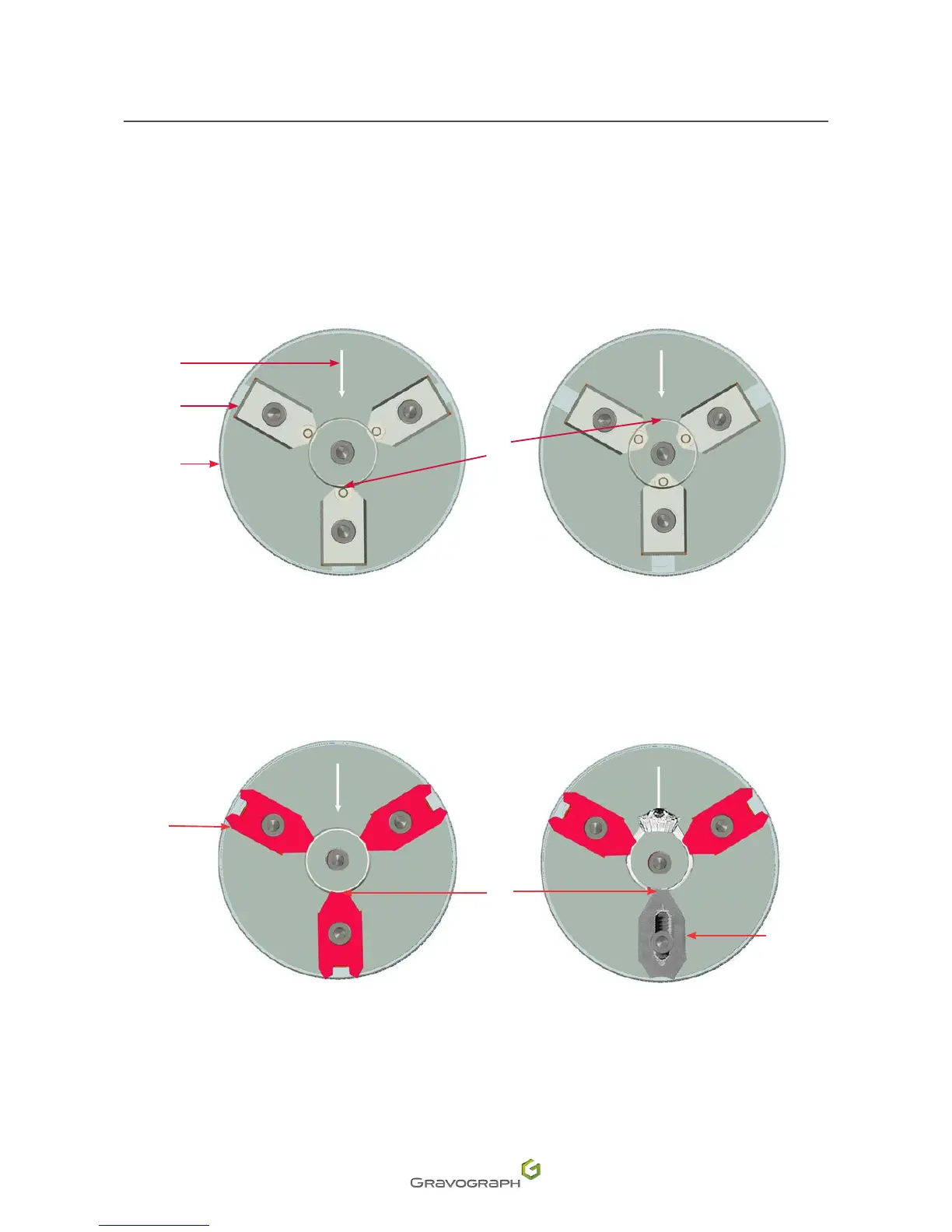

Inside engraving
Outside engraving
1. Positioning aid arrow
2. Jaws
3. Chuck
4. Mid-point of the length of the text
1
2
3
Inside engraving
(manual ZRef.)
Inside engraving
1. Plastic jaws
2. Mid-point of the length of the text
3. Adjustable jaw
6. Usingthechuckclampingring,clamptheweddingringsoastoimmobilizeitduringengraving.
Correctclampinghelpstoreducethenoiseofthemachineandtominimizevibrationduringengraving.
