GRAVOGRAPH M20 - M20 ABC: Installation and Wiring of the Touch Pad; X84; Installation on the Machine

33
M_M20 series_EN_C
Connections - Installation
3. M20 ABC: installation and wiring of the Touch Pad
 Installation on the machine
1. PuttheOn/O󰓐switchinthe"O"(O󰓐)position.

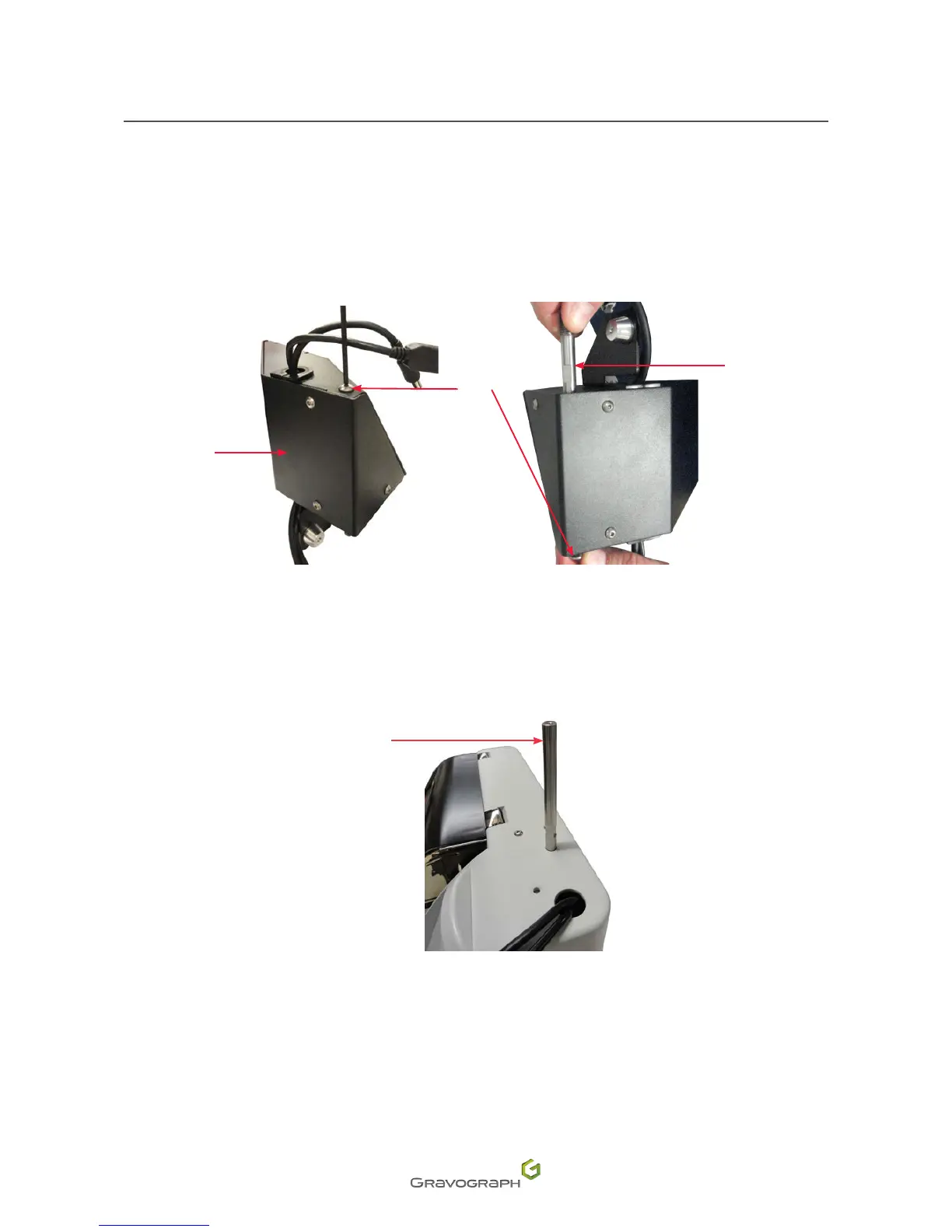

2. Remove the screw on the mount Touch Pad and remove the shaft.
2
1
3
1. Touch Pad mount
2. Screw
3. Shaft
3. Screw the shaft to the machine. Tighten with the open-end spanner.
Shaft
