TRIGGERS

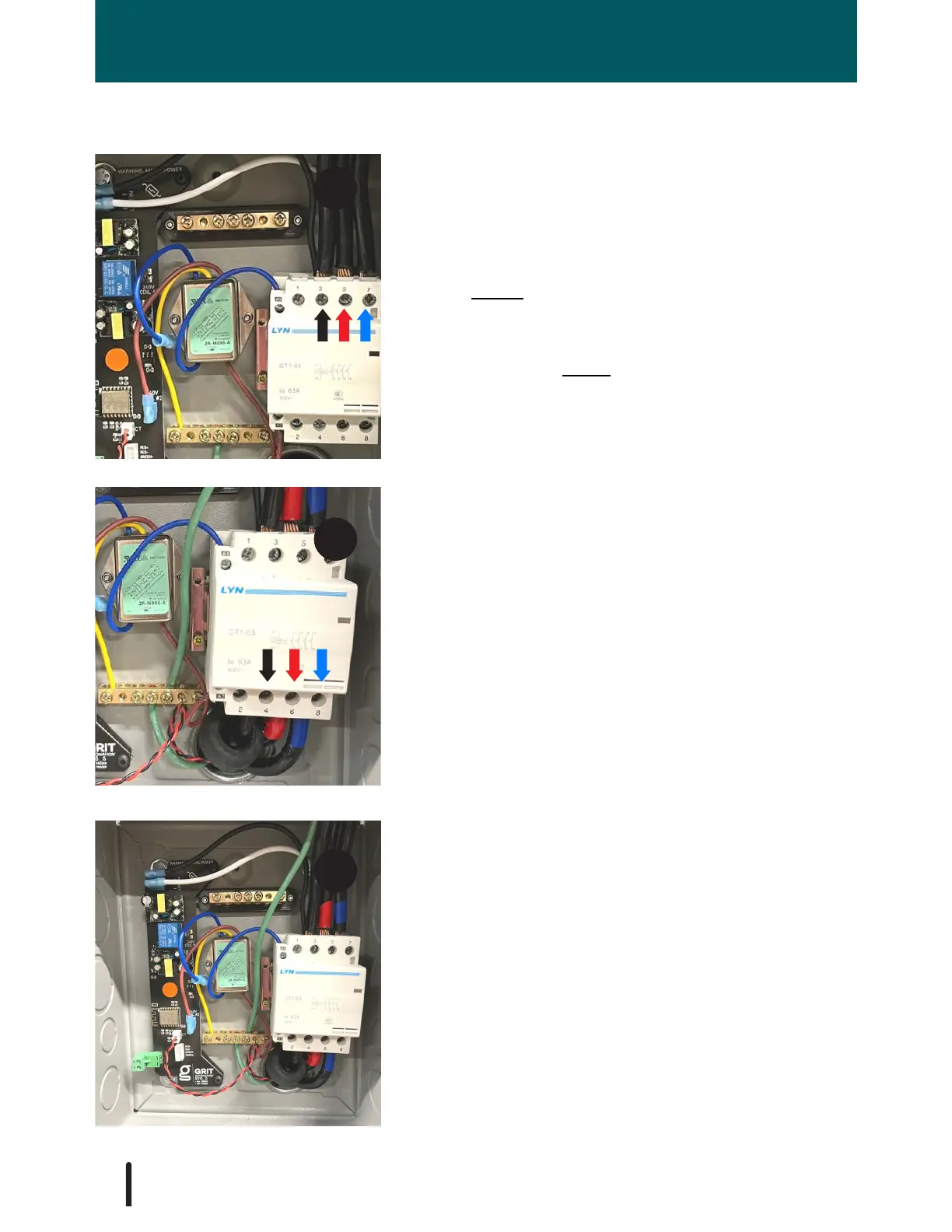

Cut the incoming wires to length, mark with colored
electrical tape.
Strip and land the first incoming hot wire in terminal 3
with the Black wire connected to the PCB.
Strip and land the second incoming hot wire in
terminal 5 with the White wire connected to the PCB.
If there are three hots coming in, land the third wire in
terminal 7.
Cut the incoming ground wire to length and land in the
ground terminal (see green arrow). Repeat with the
ground wire leading into the tool.
If there is a neutral wire, land in one of the black/gold
terminals (see orange arrow).
When landing the outgoing power in the contactor, be
sure to keep the wires in line with the incoming wires.
Put the first outgoing hot wire through the CT. Strip
and land in terminal 4.
Strip and land the second outgoing hot wire in
terminal 6.
If there are three hots, land the third wire in terminal
8.
