CT
Red/Green LED Lock status indicator light
Removable low-voltage terminal (supplies power)
AC wires (Black/Red)
Control wires (Black/Green and Blue/Red)
Power drill with step bit
Flathead screwdriver (provided)
Phillips screwdriver
MagSwitch Collectors

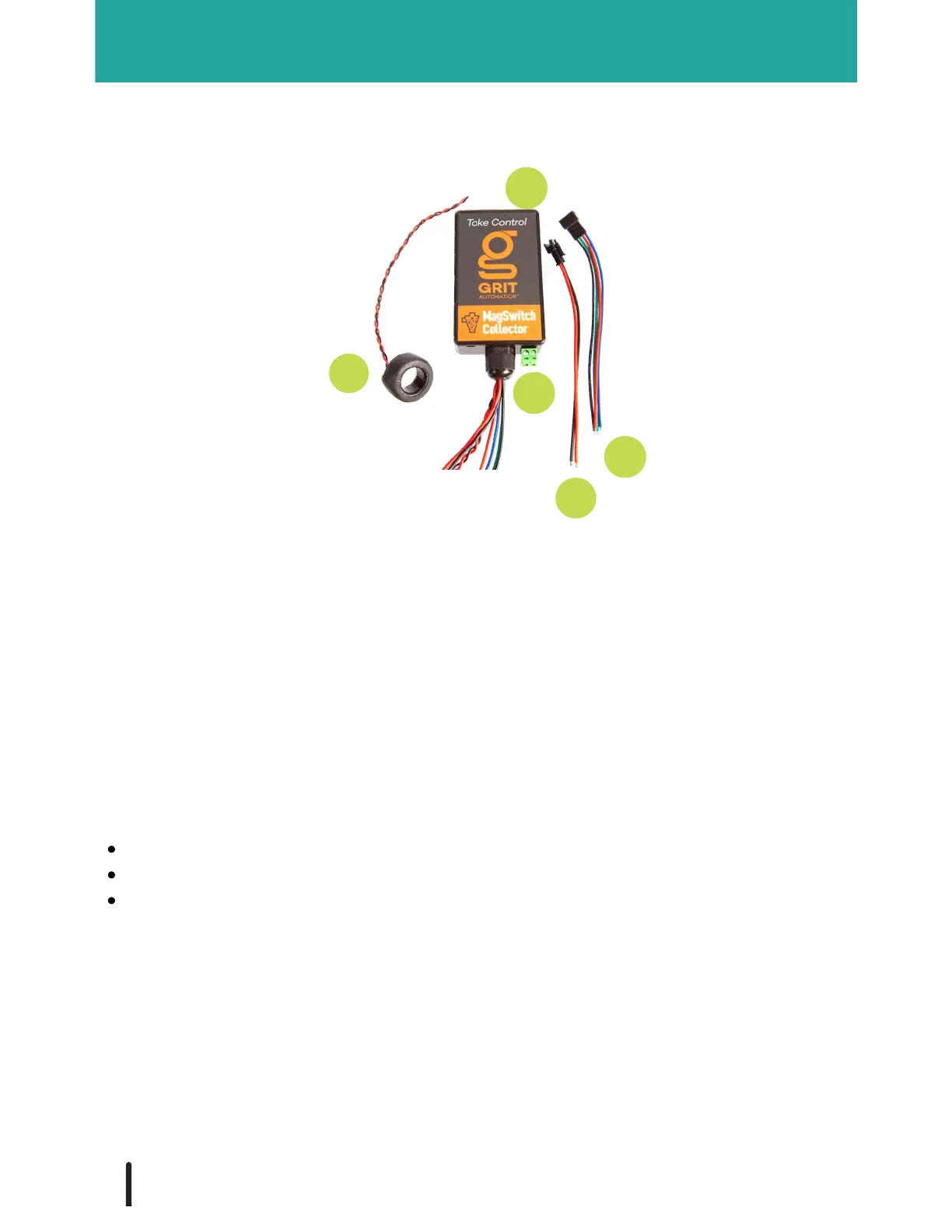

The MagSwitch Collector device includes:
1.
2.
3.
4.
5.
Installation
The instructions to install your MagSwitch Collector are listed below. You will need the
following tools to complete installation:
If the contactor enclosure is large enough, the MagSwitch Collector device can be put
inside. If it cannot fit in the enclosure, the knockout must be at least 5/8''.
