GRIT Lock - Page 67

1
2
3
4
5
6
220v Line (incoming hot) - BLACK wire
220v Line (incoming hot) - WHITE wire
220v Load (hot going to collector) - BLACK wire
220v Load (hot going to collector) - WHITE wire
On switch (black button)
Off switch (blue button)
1.
2.
3.
4.
5.
6.

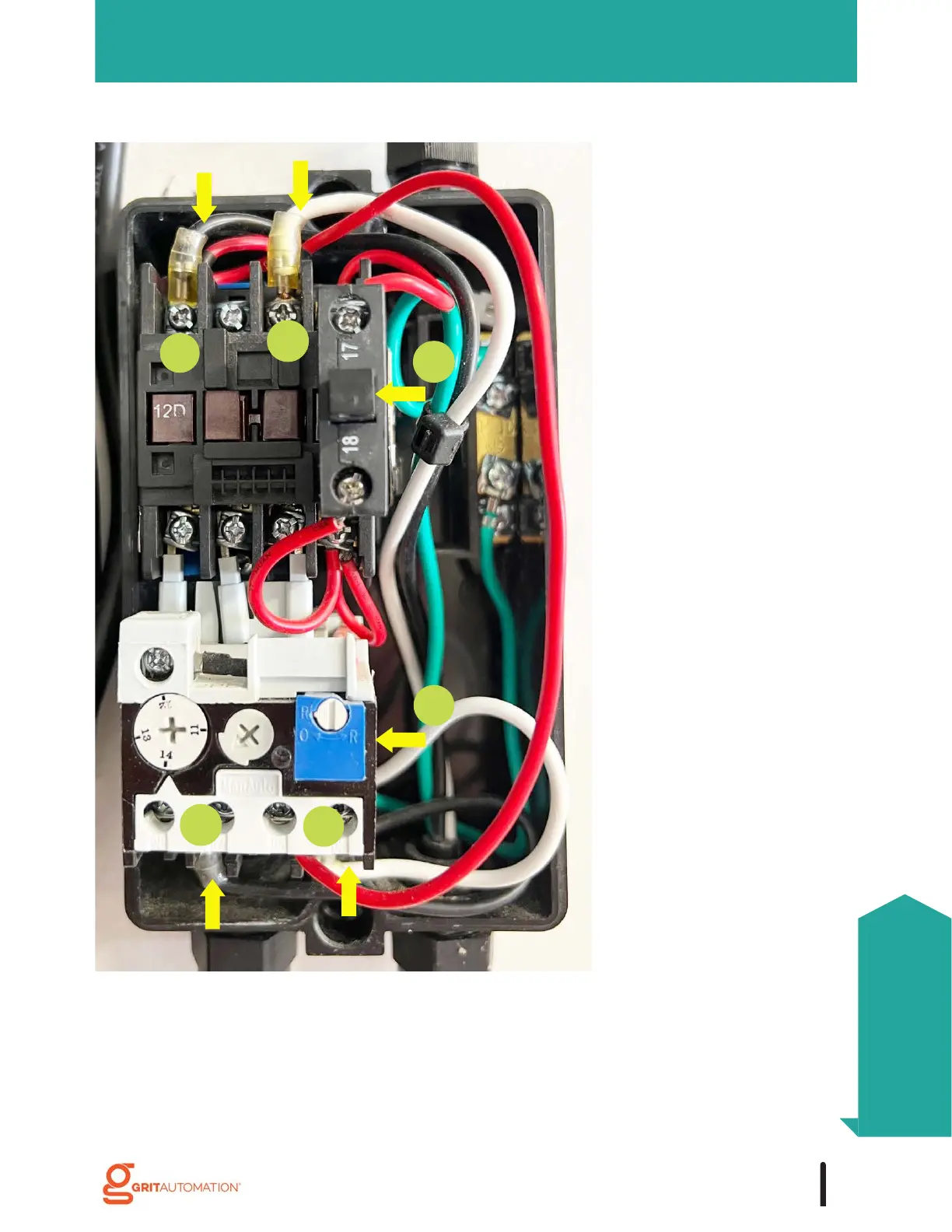

Fig. 1
This image is a magnetic
contactor and motor
starter.
Please note that your
magnetic contactor might
look different, however,
using this as your guide to
find the particular area of
the circuit should allow you
to get everything set up.
Fig. 1 will be referenced for
the majority of the
installation steps to give a
broad context for all
zoomed-in views.
Important: Before
beginning to install your
GRIT MagSwitch, remove
the existing remote wiring
from the DC contactor box.
COLLECTORS
67
Collectors
Installation
