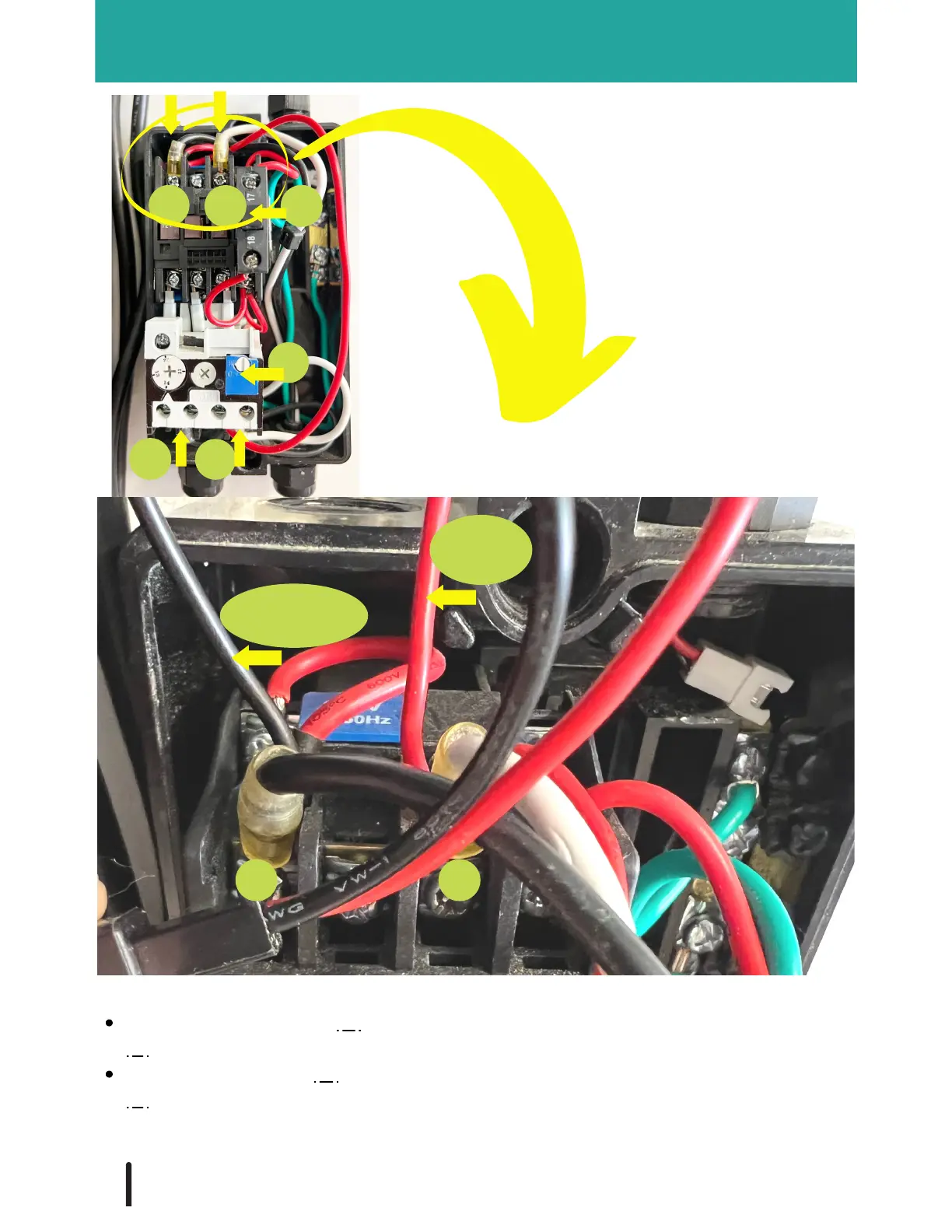

Land the BLACK AC wire
(A) from the MagSwitch device with the first incoming hot line
(1) in its terminal. Screw to secure.
Land the RED AC wire (B) from the MagSwitch device with the second incoming hot line
(2) in its terminal. Screw to secure.
Installing the AC wires:
