GATE CONTROL

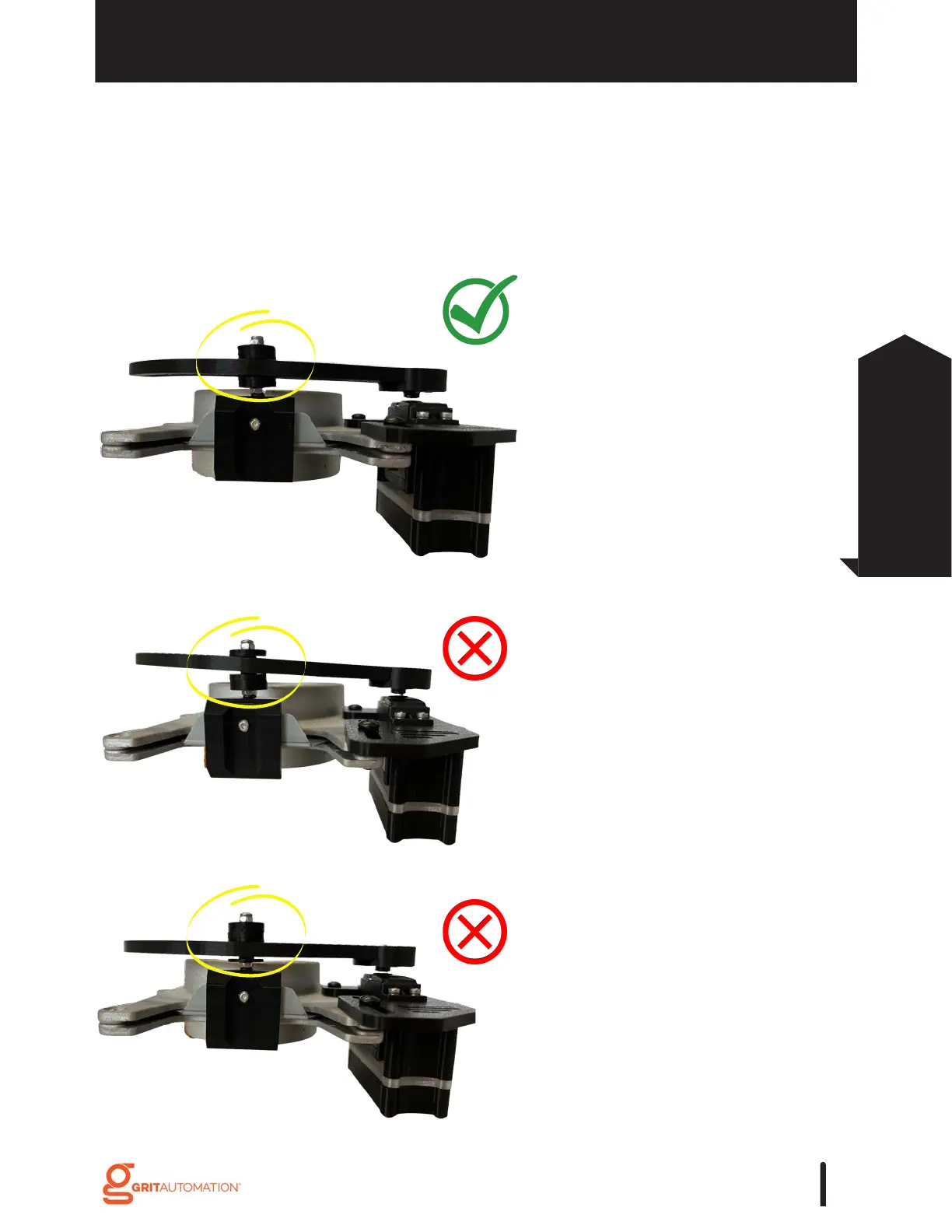

This Arm is fairly level and
supported with no additional
tension being placed at its
connection point with the servo.
For reference, this configuration has a
3mm and 1mm washer placed below the
Arm with a hat washer, 3mm, and 1mm
washer placed above.
This Arm is pitched up at an angle
due to too many flat washers being
placed below the Arm.
While this Arm is fairly level, it is
not adequately supported with flat
washers underneath.
Finetune the Arm Position
To make sure your Gate Control Arm slides smoothly, take care in placing the correct
configuration of Hat and Flat washers on the Slide Bracket post so that the Arm is level
and secure. The best configuration will vary from gate-to-gate, so use these images as a
guide.
