Turn off the breaker leading to the tool. Disconnect
the power wires feeding the tool.

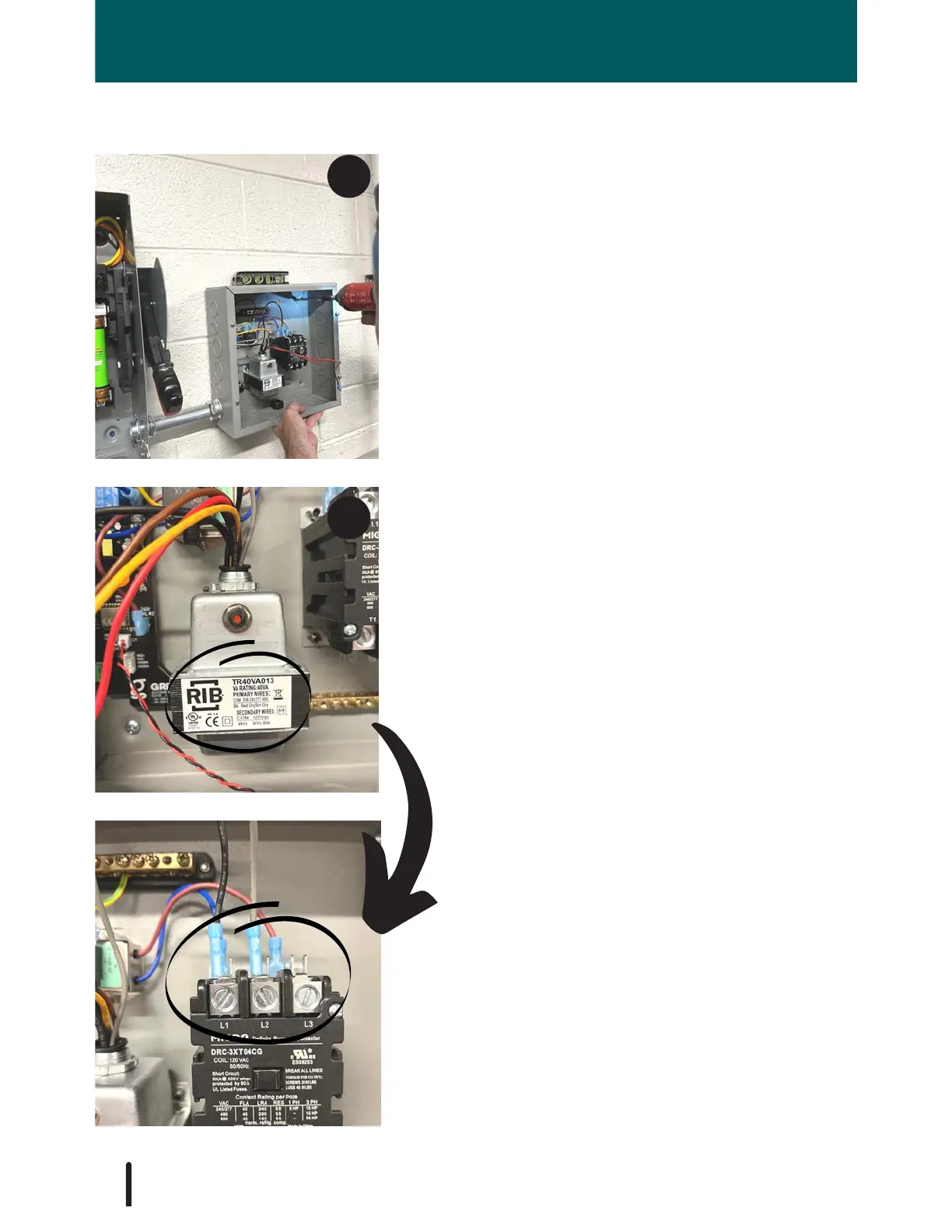

Mount the trigger near the incoming power drop. That
may mean attaching the trigger to the wall or the tool
itself.
Use one of the existing knockouts, or drill a hole in the
enclosure to align with the hole where power is
already being run to the tool.
TRIGGERS
Industrial 480v 3PH Trigger Installation
The Industrial 480v 3PH Triggers contain a
transformer used to power the GRIT PCB. For 480v
power, use the Black wire and the light Grey wire.
Land the Black wire on a prong of L1 and the light
Grey wire on a prong of L2.
