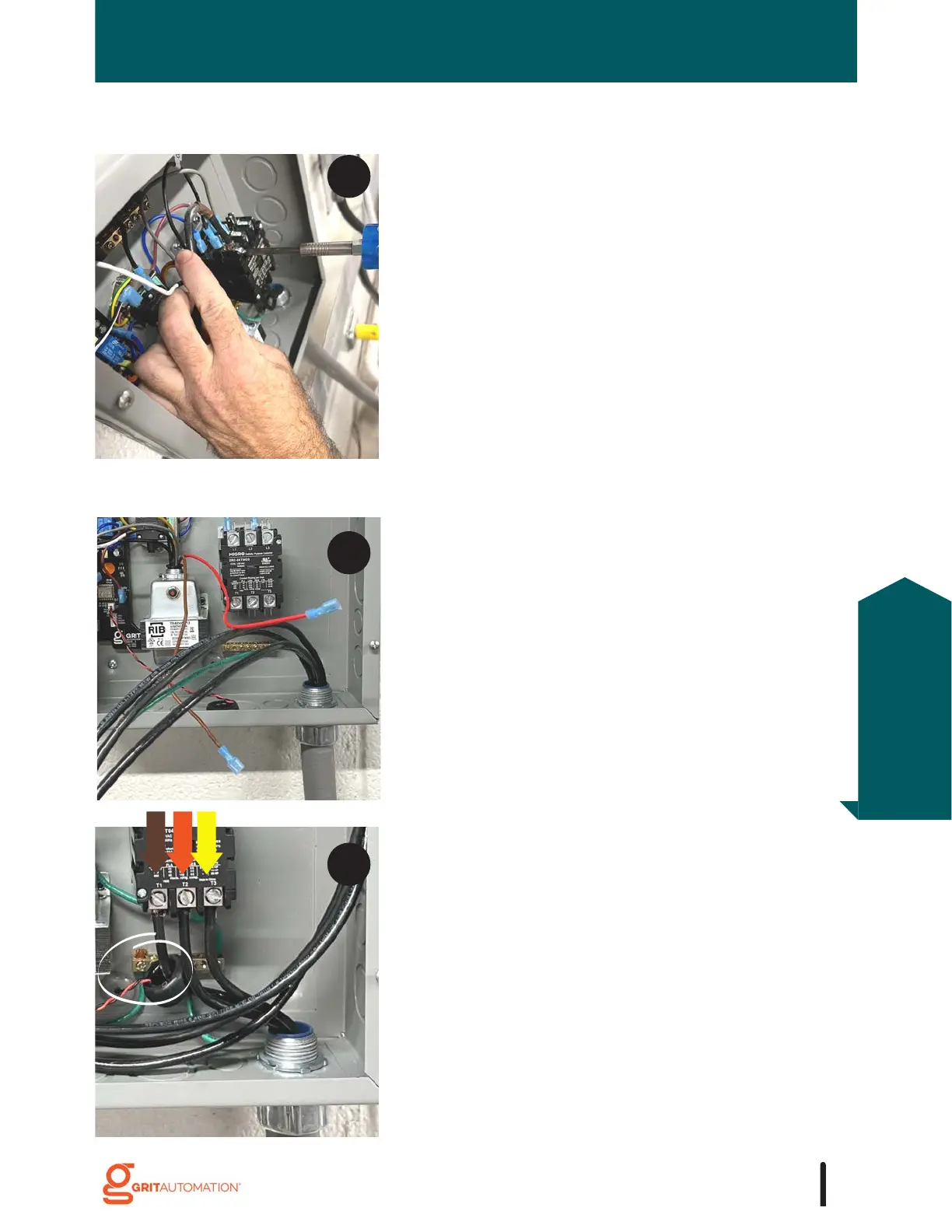

Insert and tighten the chase nipple through a
knockout.
Insert the outgoing wires leading to/from the tool.
Cut the incoming wires to length, mark with colored
electrical tape.
Strip and land the first incoming hot wire in the screw
terminal L1 (in front of the Black wire landed from the
transformer).
Strip and land the second incoming hot wire in the
screw terminal L2 (in front of the Grey wire landed
from the transformer).
Strip and land the third incoming hot wire in the screw
terminal L3.
Put the first outgoing hot wire through the CT. Strip
and land in terminal T1.
Strip and land the second outgoing hot wire in
terminal T2.
Strip and land the third outgoing hot wire in terminal
T3.
