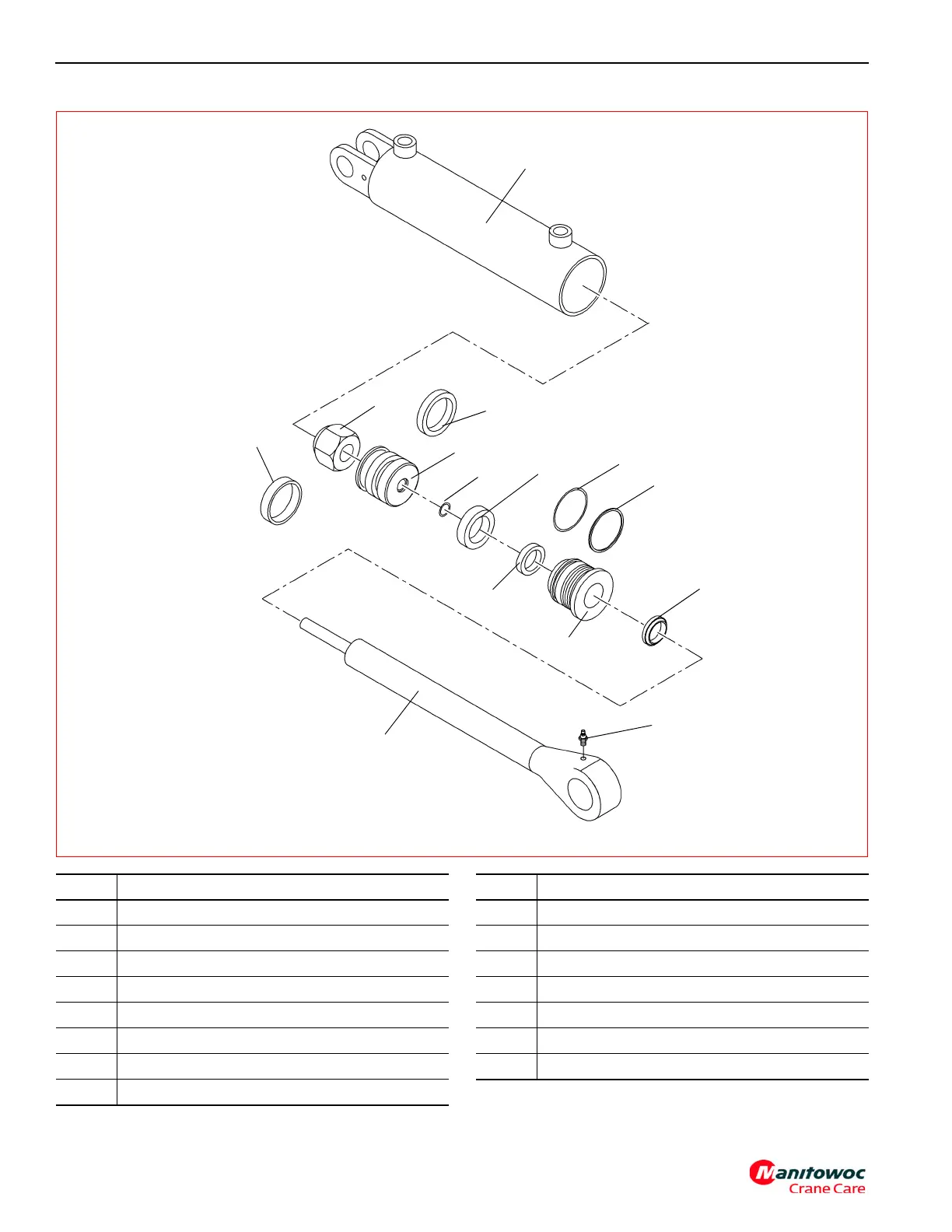

FIGURE 2-45
7276
2
5
6
3
1
4
7
8
11
12
13
9
10
14, 15
Item Description
1Barrel
2Rod
3 Head
4Piston
5 Spacer
6Nut
7O-ring
8 Wear Ring
Item Description
9 Piston Seal
10 O-ring
11 Backup Ring
12 Rod Seal
13 Wiper Ring
14 Grease Fitting
15 Grease Cap
