Grove RT9130E - Description

Published 08-25-09, Control # 077-04 7-3
RT9130E SERVICE MANUAL POWER TRAIN
7
GROVE

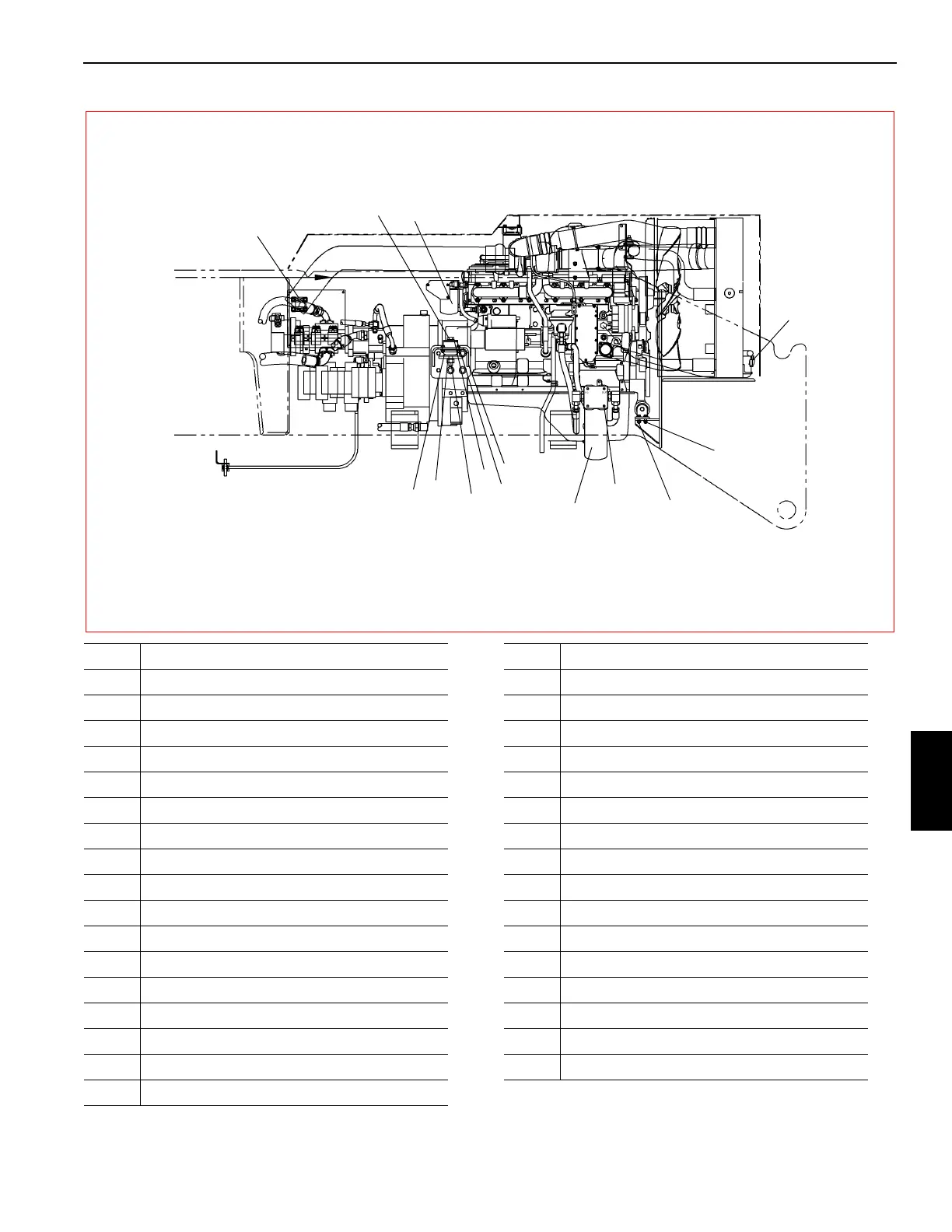

FIGURE 7-1 continued
7383-2
4, 5, 6
27, 28, 29
26, 27
16
22
20
21
14
18
19
20
21
15
2
Item Description
1 Carrier Harness Connector
2 Grid Heater and Starter
3 Remote Secondary Fuel Filter
4 Capscrew
5 Flatwasher
6 Lockwasher
7 Transmission/Torque Converter
8 Hydraulic Pump # 4
9 Pump # 1
10 Pump # 2
11 Pump # 3
12 Hydraulic Pump Disconnect
13 Radiator Assembly
14 Engine Block Heater Electrical Plug
15 Remote Oil Filter
16 Remote Water Conditioner
17 Exhaust and CAC Tube Support
Item Description
18 Rear Mount
19 Locknut
20 Flatwasher
21 Dockwasher
22 Capscrew
23 Capscrew
24 Lockwasher
25 Flatwasher
26 Hex Nut
27 Flatwasher
28 Capscrew
29 Lockwasher
30 Lever
31 Clip Pin
32 Cable Mount
33 Push-Pull Cable
