Grove RT9130E - Page 179

Published 08-25-09, Control # 077-04 4-27
RT9130E SERVICE MANUAL BOOM
4
GROVE

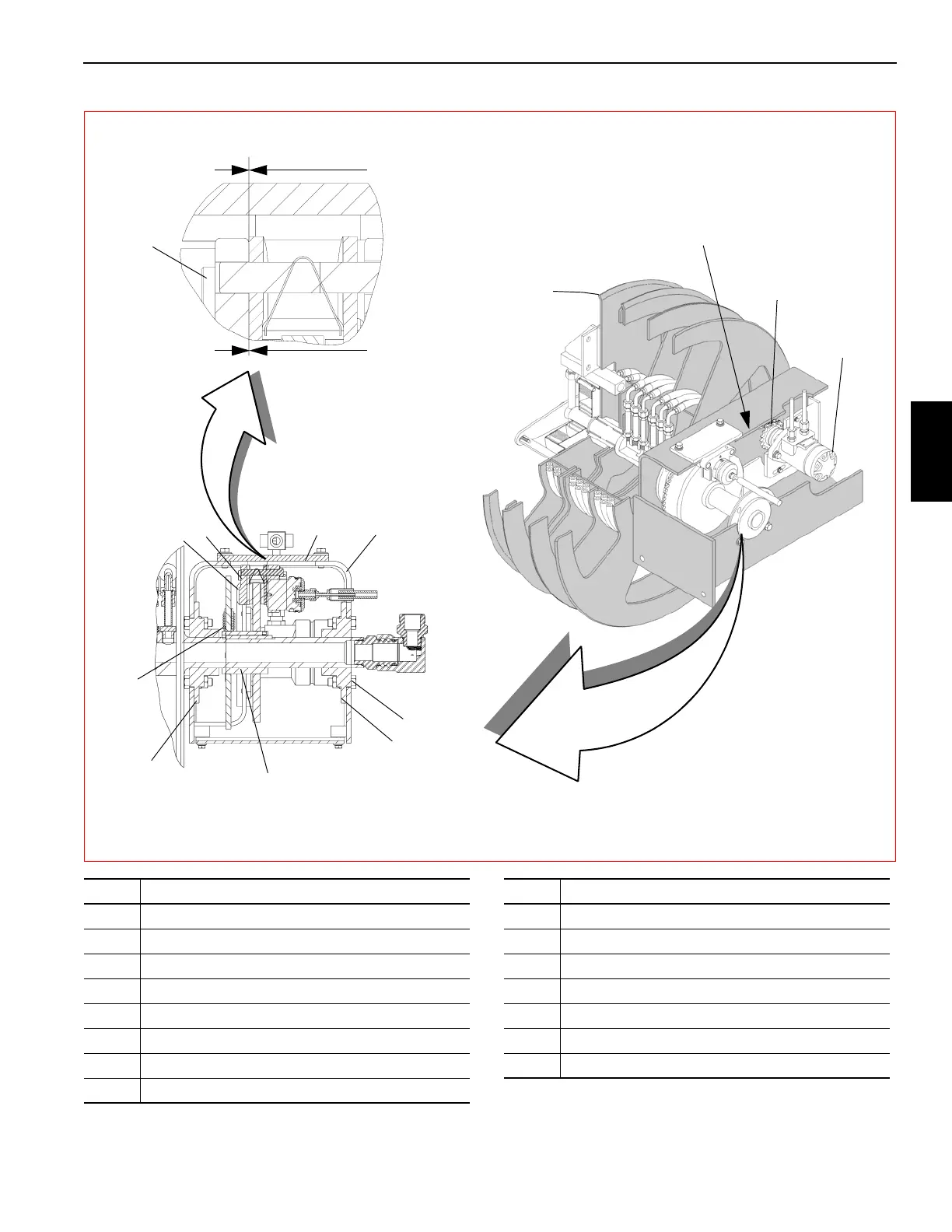

FIGURE 4-3
5
4, 6
3
2
9, 10, 11
NOTE: See View A for sprocket installation and
hose reel alignment
11
8
12
4, 6
Allow maximum possible gap here
14
2
13
12
Item Description
1 Sprocket
2 Bearing
3Brake
4 Clevis Pin
5 Brake Mount
6 Cotter Pin
7Motor
8 Capscrew
Item Description
9 Lockwasher
10 Flatwasher
11 Hex Nut
12 Chain
13 Disc Weld
14 Housing
15 Hose Reel
