Published 08-25-09, Control # 077-04 5-5
RT9130E SERVICE MANUAL HOIST AND COUNTERWEIGHT
5
GROVE
9
11, 12
10
NOTE: Note: After item 9 is installed, adjust items 11
and 12 so that they are just touching item 10
(aux hoist mount lugs).
13
5, 6, 7, 8
See View A-A
View A-A
5, 6, 7, 8
4
1
3
4
2
3

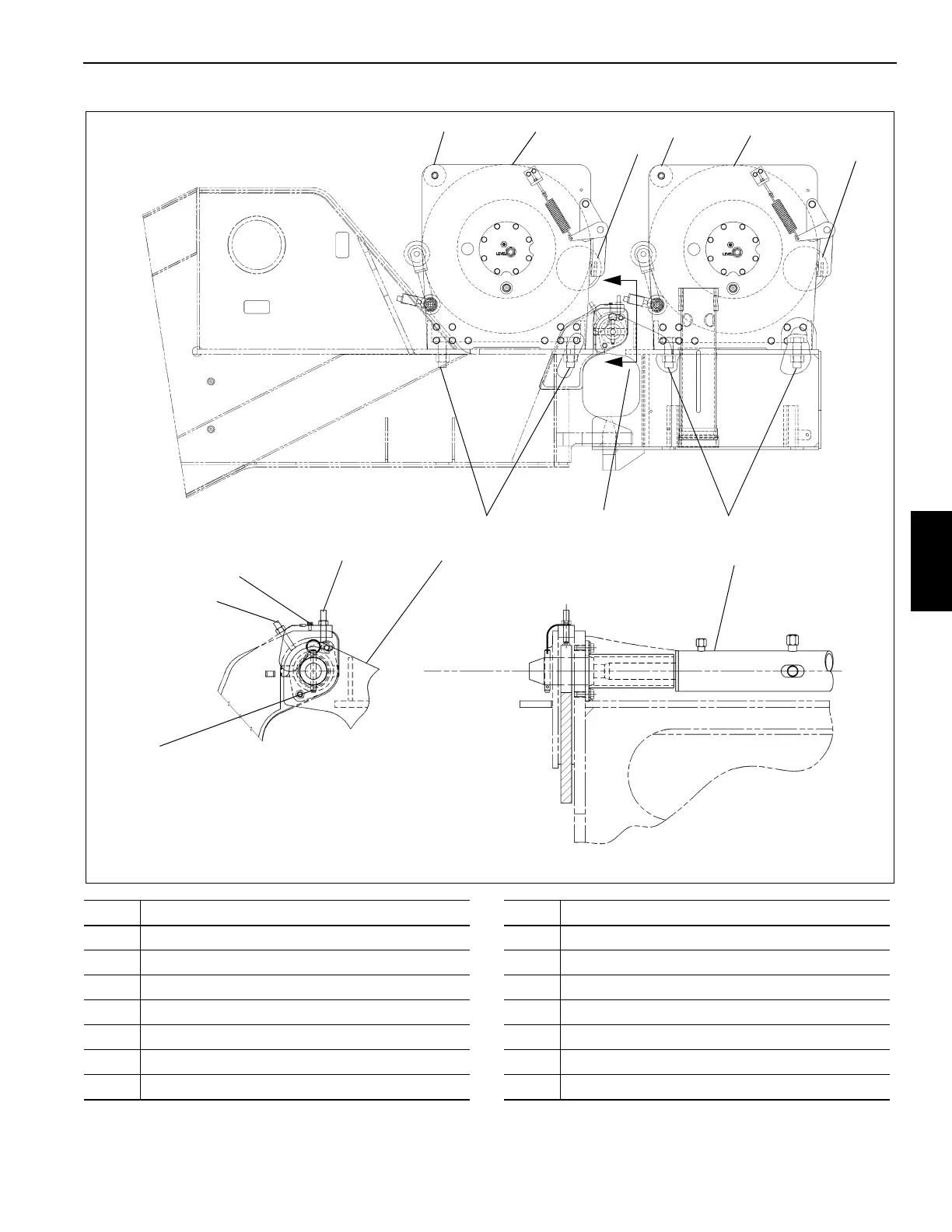

FIGURE 5-1
11, 12
14
Item Description
1 Main Hoist
2 Auxiliary Hoist
3 Cable Follower
4 Idler Drum
5Shims
6 Capscrew
7Nut
Item Description
8Washer
9 Pin Removal Cylinder
10 Aux Hoist Weldment
11 Setscrew
12 Locknut
13 Ball Detent Pin
14 Flange Screw
