HOIST AND COUNTERWEIGHT RT9130E SERVICE MANUAL
5-12 Published 08-25-09, Control # 077-04
33 mm (1.30 in)
9
1
7
4
3
8
8
6
10
5
7
1
4
3
11
12
2
6083

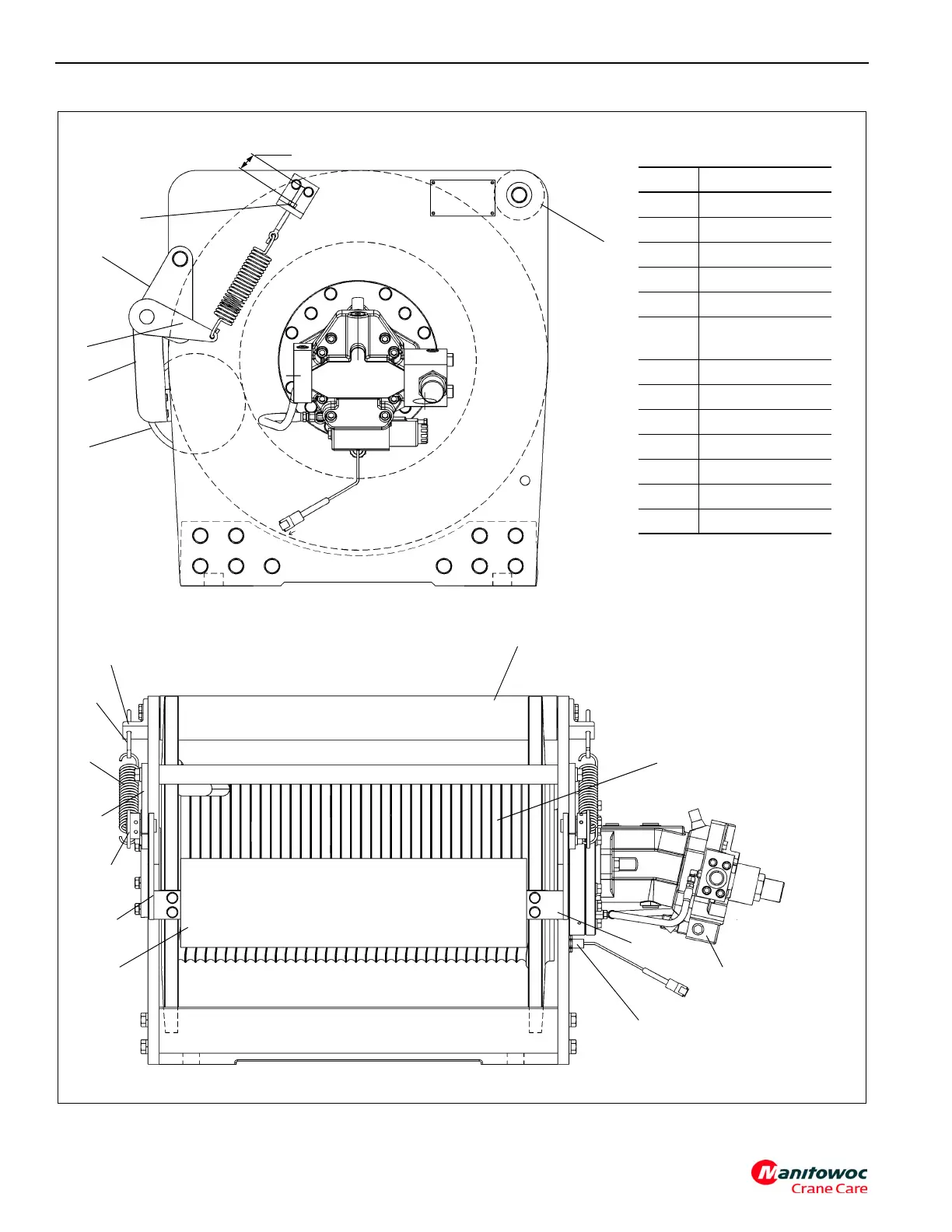

FIGURE 5-3
Item Description
1 Pivot Bracket
2Drum
3 Follower Roller
4Pivot Arm
5Spring
6
Spring Adjusting
Rod
7 Lever
8 Idler Roller
9Nut
10 Bracket
11 Rotation Sensor
12 Hydraulic Motor
13 Mounting Bracket
13
