Grove RT9130E - Page 234

6-2 Published 08-25-09, Control # 077-04
SWING SYSTEM RT9130E SERVICE MANUAL
10
6
7
5
1
8
11

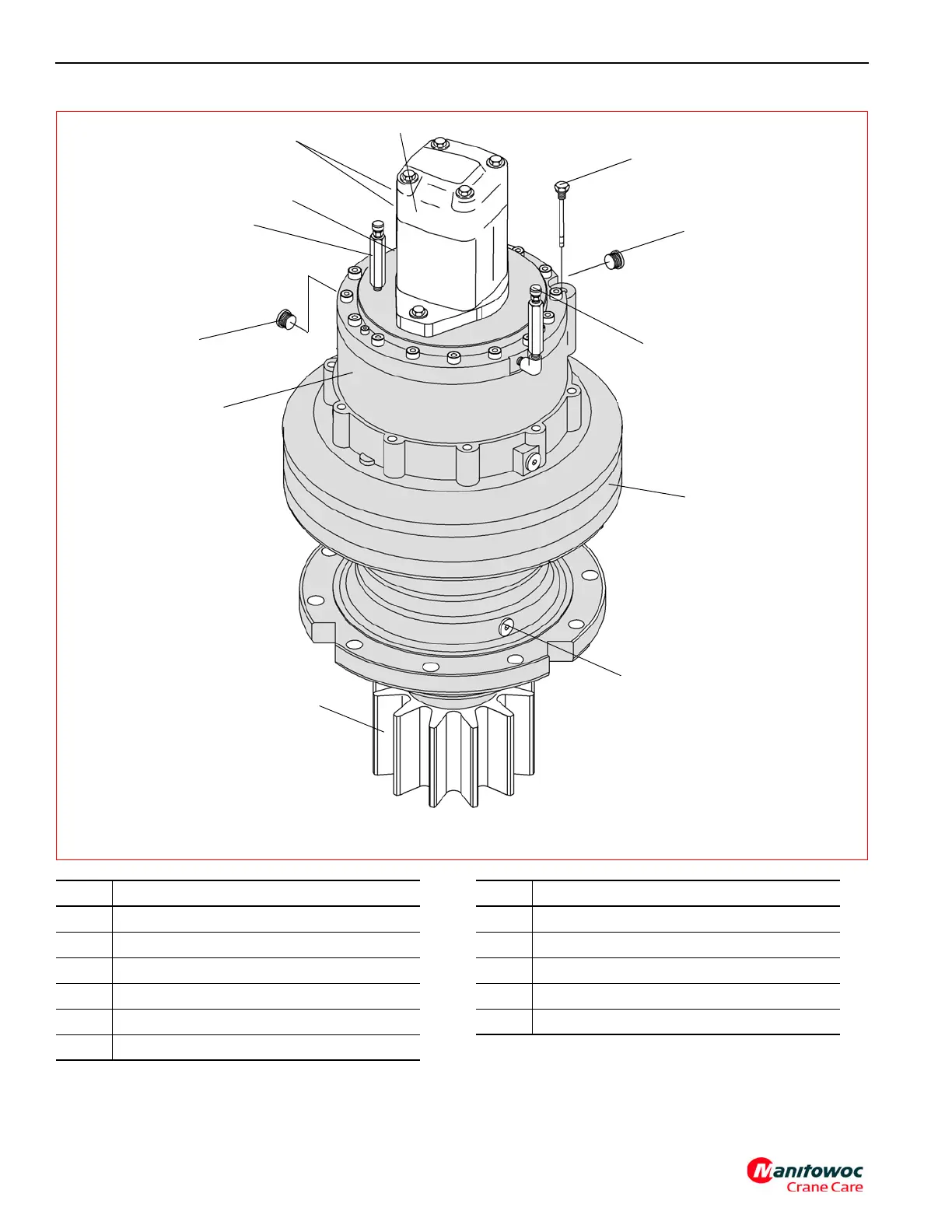

FIGURE 6-1
6470-1
5
4
9
3
2
NOTE: Some swing boxes have the
notches in the mounting flange.
Other swing boxes do not.
Item Description
1 Swing Motor
2 Swing Motor Ports
3 Swing Motor Drain Plug
4 Swing Brake Assembly
5 Breather Plugs
6 Filling Plug/Level Indicator
Item Description
7 Hydraulic Apply Brake Port
8 Hydraulic Release Brake Port
9 Swing Gearbox
10 Drain Plug
11 Pinion Gear
