8-16 Published 08-25-09, Control # 077-04
UNDERCARRIAGE RT9130E SERVICE MANUAL

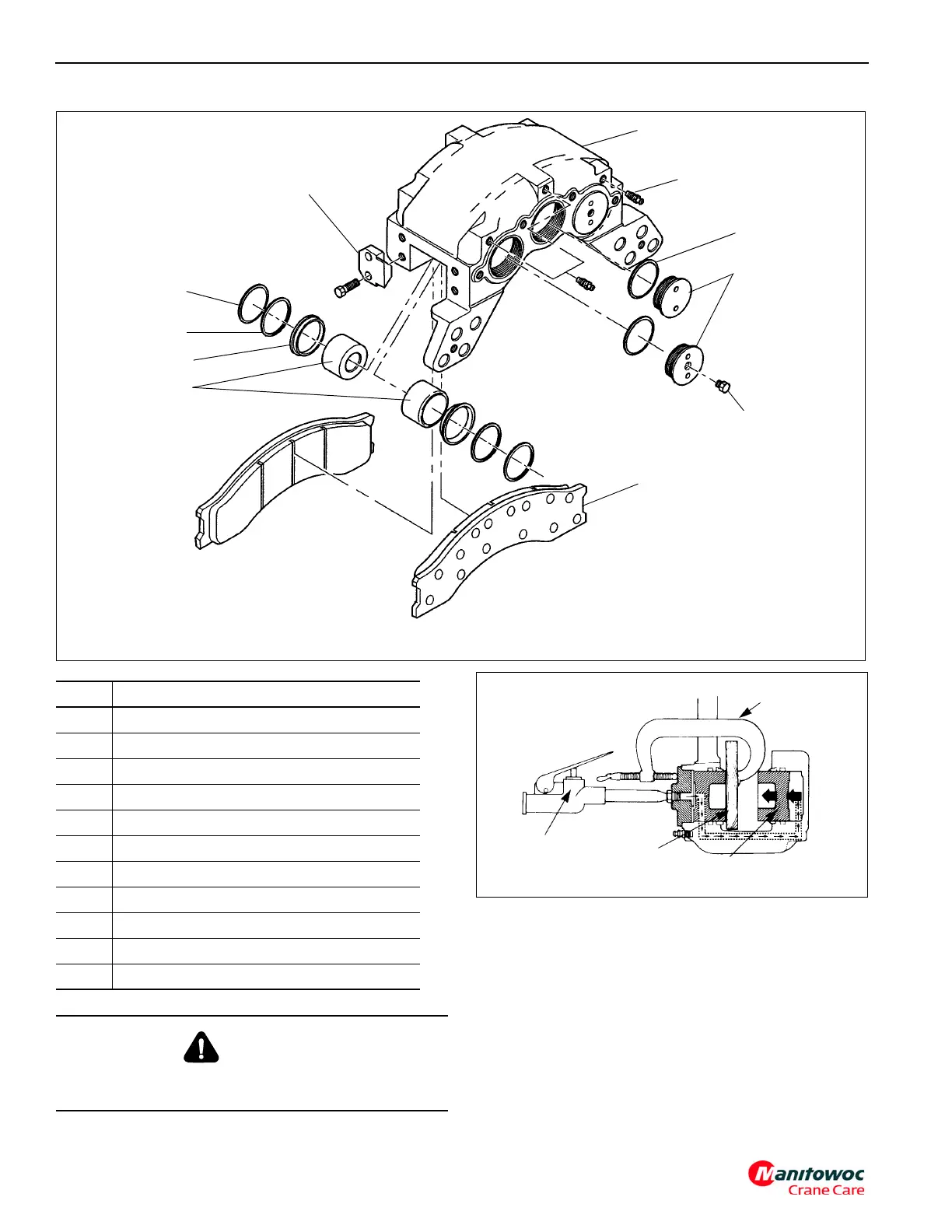

b. Apply compressed air to the inlet fitting to force the
pistons out of the other housing. If one piston comes
out before the other piston, put a piece of wood in
front of the piston that comes out first. Apply
compressed air to force the other piston out of the
housing (Figure 8-8).
c. Remove the wood block and the C-clamp from the
housing.
d. Remove the pistons (Figure 8-7) from the bores that
are opposite from the mounting plate.
Item Description
1 End Plate
2O-ring
3 Backup Ring
4 Dust Seal
5Pistons
6 Housing
7 Bleeder Screw
8O-ring
9 Cylinder Caps
10 Cap
11 Lining Assembly
DANGER
Do not place hand in front of pistons when forcing them
out. Serious personal injury may occur.
C-Clamp
Piston
Air Gun
Wood
Block
FIGURE 8-8
