Published 08-25-09, Control # 077-04 2-31
RT9130E SERVICE MANUAL HYDRAULIC SYSTEM
2
GROVE
SUPERSTRUCTURE
6606
1
2
3
4
6
6687
7
8
9
10
11
12
13
14
15
5

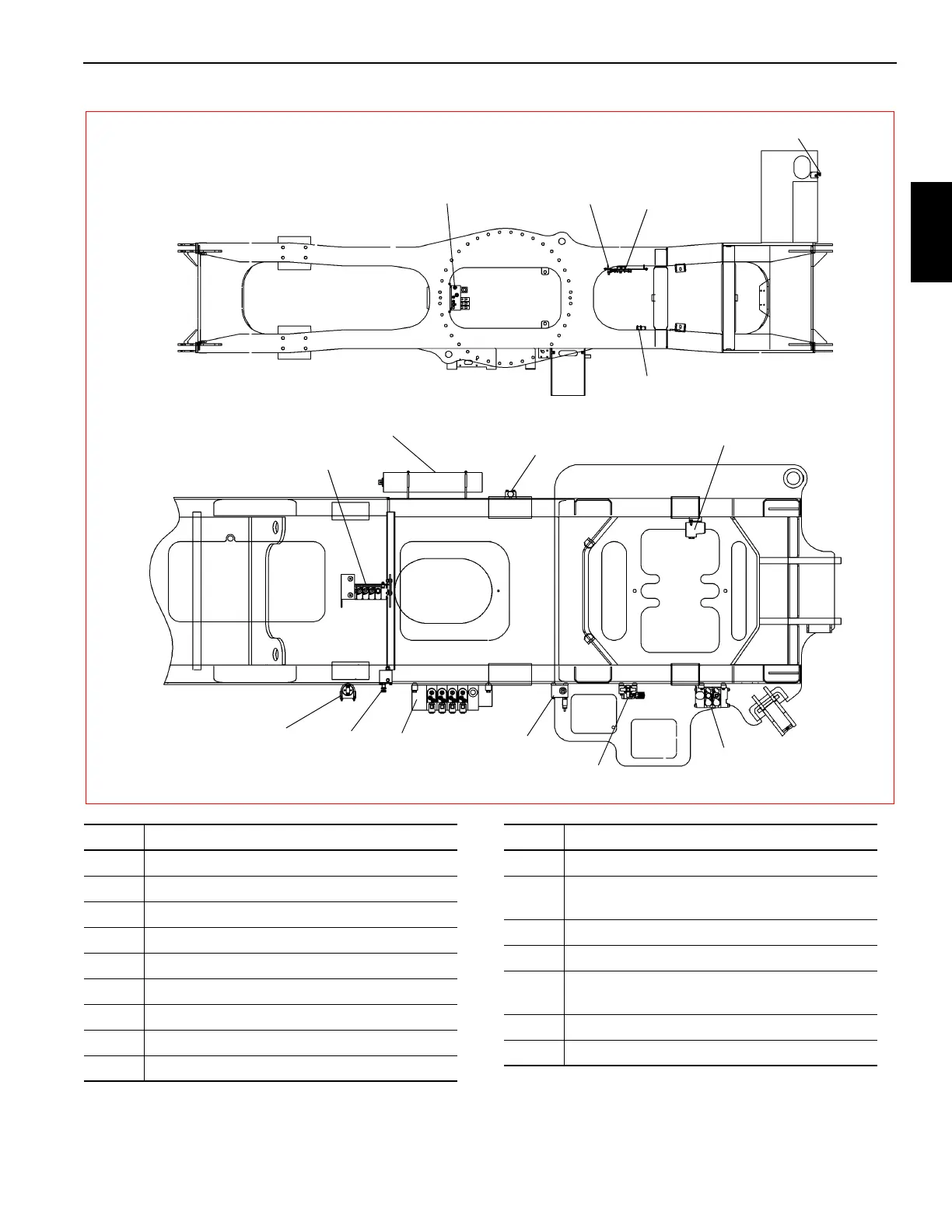

FIGURE 2-17
CARRIER
Item Description
1 Manual Bleed Off Pressure Valve
2 Park Brake Valve
3 Axle Disconnect Valve
4 Integrated Outrigger/Rear Steer Valve
5 Swing/Steer Directional Control Valve
6 Axle Lockout Valve
7 Dual Accumulator Charge Valve
8 Pilot Operated Check Valve
9 Accumulators
Item Description
9 Accumulators
10
Directional Control Valve (Counterweight
Removal/Cab Tilt)
11 Accumulator
12 Manual Bleed Off Valve
13
Main Directional Control Valve (Telescope/
Lift/Hoist)
14 Pressure Reducing/Sequence Valve
15 Series/Parallel Selector Valve
