HYDRAULIC SYSTEM RT9130E SERVICE MANUAL
FIGURE 2-20
12
11
1, 2
12
9, 10
5, 6, 7,8
3, 4
11
10
13
8
6
4
2
9
7
5
3
1
9
10
7
85
6
11
3
4
12
13
12

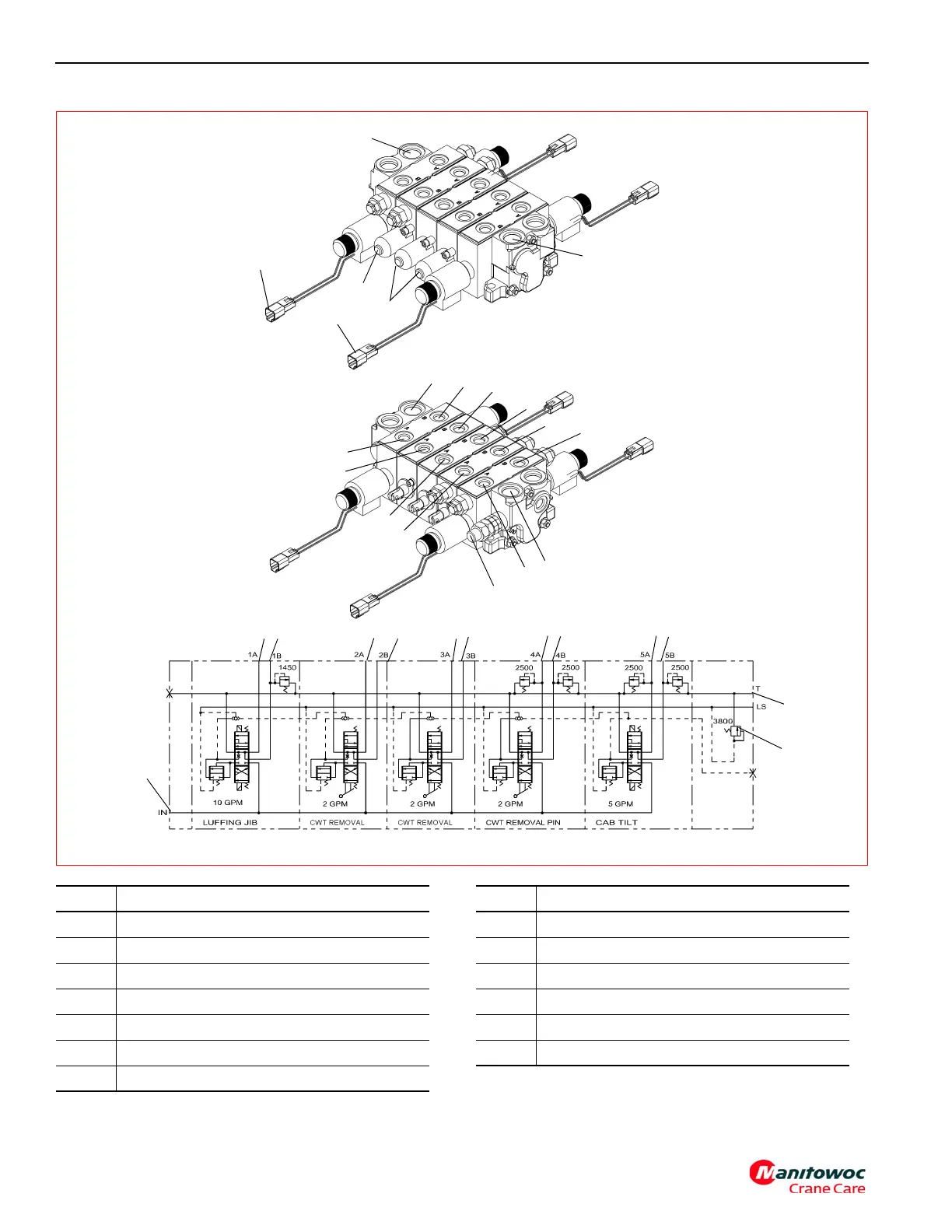

Counterweight Removal/Cab Tilt Directional Valve
Item Description
1 Port 5A - Cab Tilt
2 Port 5B - Cab Tilt
3 Port 4A - Counterweight Removal Pin
4 Port 4B - Counterweight Removal Pin
5 Port 3A - Counterweight Removal Right Cyl.
6 Port 3B - Counterweight Removal Right Cyl.
7 Port 2A - Counterweight Removal Left Cyl.
Item Description
8 Port 2B - Counterweight Removal Left Cyl.
9 Port 1A - Luffing Jib
10 Port 1B - Luffing Jib
11 Inlet
12 Outlet
13 Load Sense Relief
