Grove RT9130E - Page 79

Published 08-25-09, Control # 077-04 2-39
RT9130E SERVICE MANUAL HYDRAULIC SYSTEM
2
GROVE

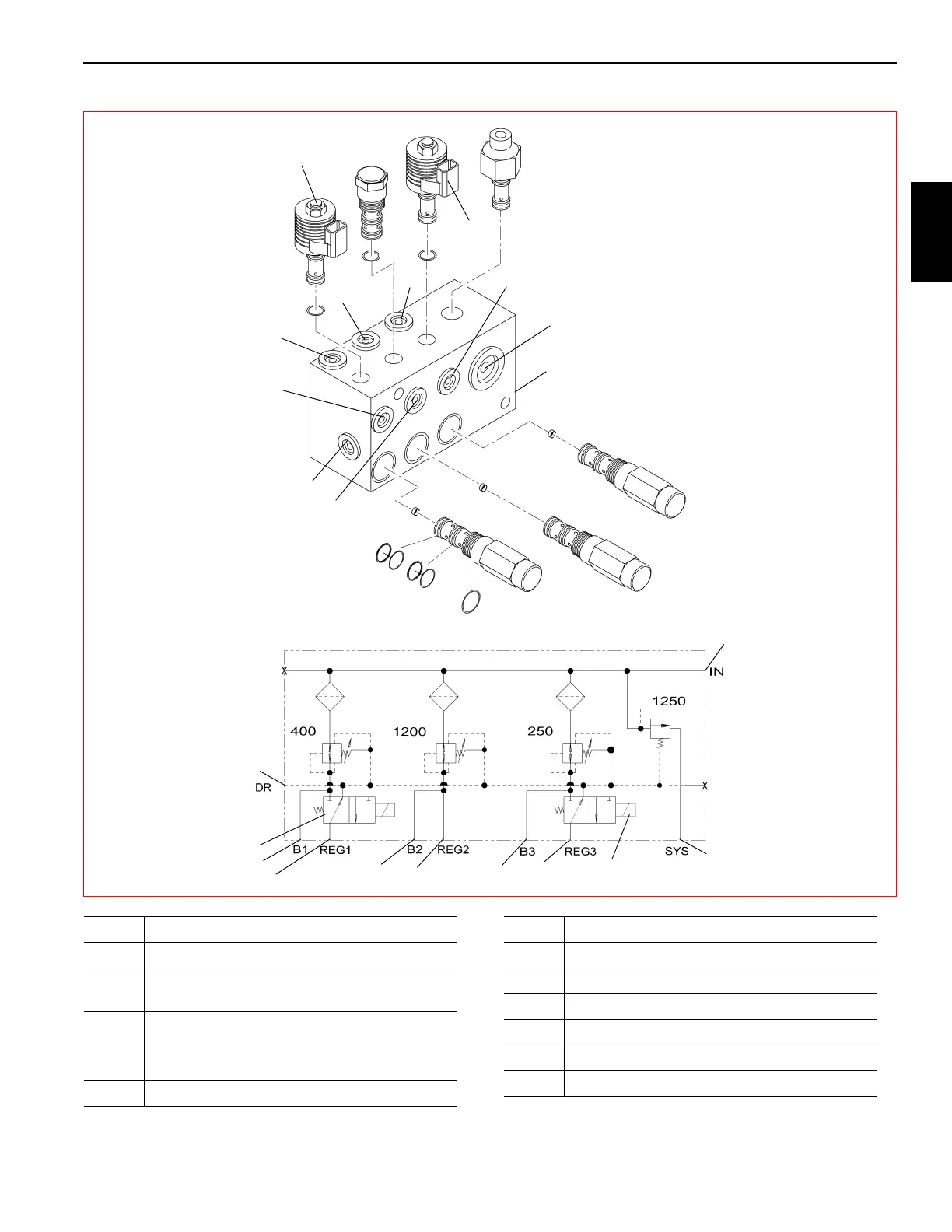

FIGURE 2-22
1
2
3
4
5
6
7
8
9
10
11
11
10
5
9
8
3
2
7
1
6
4
Item Description
1 In Port (Not Shown) From Swivel Port 6
2
Two-Position Three-Way Solenoid Valve -
Swing Brake Release
3
Two-Position Three-Way Solenoid - Armrest
Lockout Valve
4 Port B3 - Power Brake Valve
5 Port B2 - Hose Reel Motor
Item Description
6 Port B1 - Telescope Solenoid - Outer Mid
7 System Port
8 Port REG 3 - Swing Brake Release
9 Port REG 2 - Hose Reel Brake
10 Port REG 1 - Telescope Foot Pedal
11 Drain Port
