7. servIce
GH2 – Replacement of the hand control

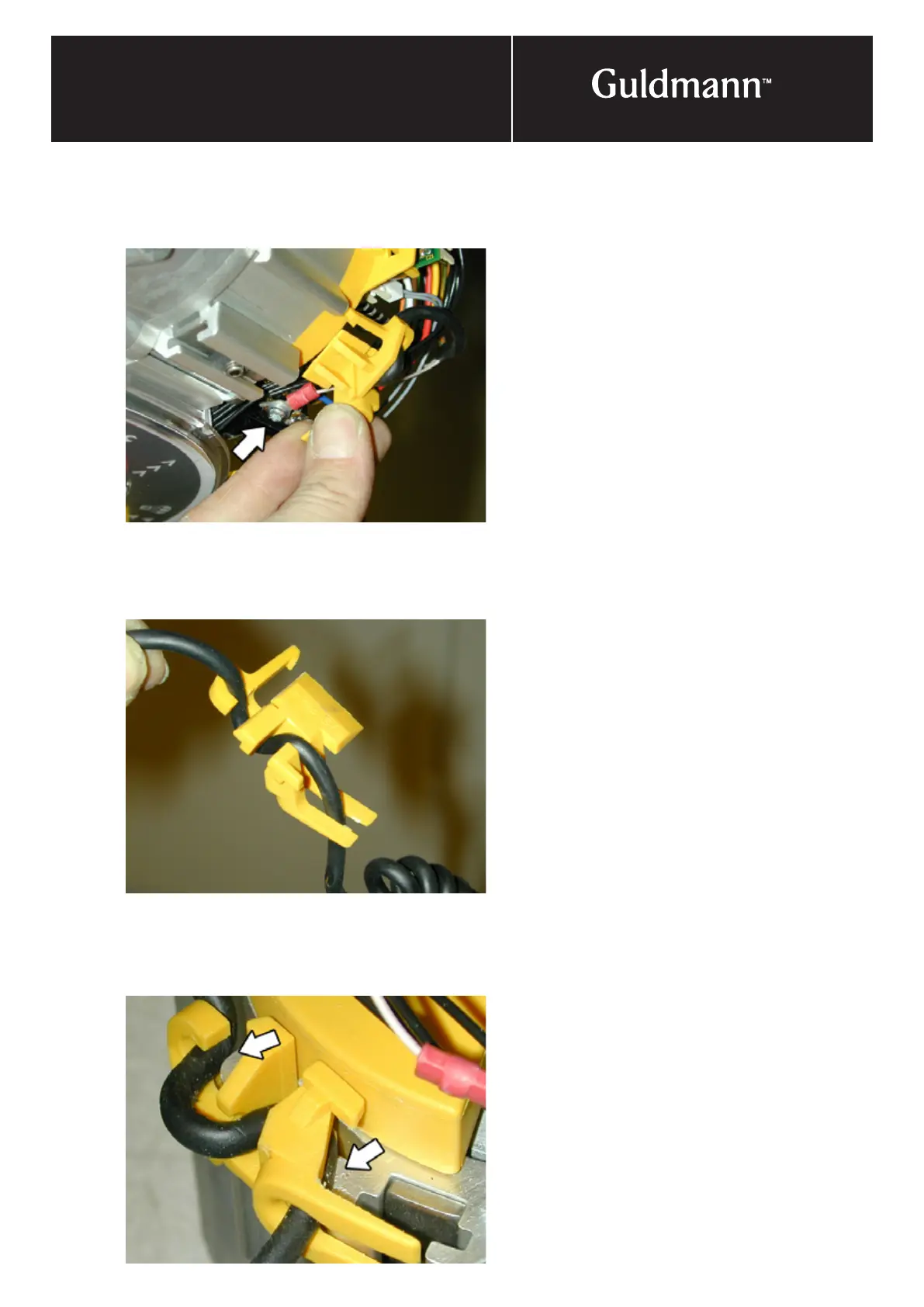

Demounting of hand control
Unscrew fork terminal and remove it from the emergency
stop switch, and remove the 6-way connector from the
printed circuit board.
Disengage the hook of the wire suspension and push the
wire suspension sideways out of the chassis.
Wire suspension
The route of the wire through the labyrinth of the wire
suspension.
Mounting of wire suspension
Important! Make sure that the chassis does not cut into
the wire when mounting the wire suspension.
Press the wire into position in the track, before carefully
pushing the wire suspension into position. Check that the
hook is engaged behind the chassis. Insert the 6-way con
-
nector into the printed circuit board.
