Guldmann GH2 - Rail Curves

60°
45° 30°
90° L 90°
1500 mm
(60")
1500 mm
(60")
90
°
500 mm
20"
500 mm
20"
90
°
60
°
500 mm
20"
500 mm
20"
500 mm
20"
45
°
500 mm
20"
500 mm
20"
30
°
500 mm
20"
© Guldmann GB-1394/11/08
33
2. InformatIon

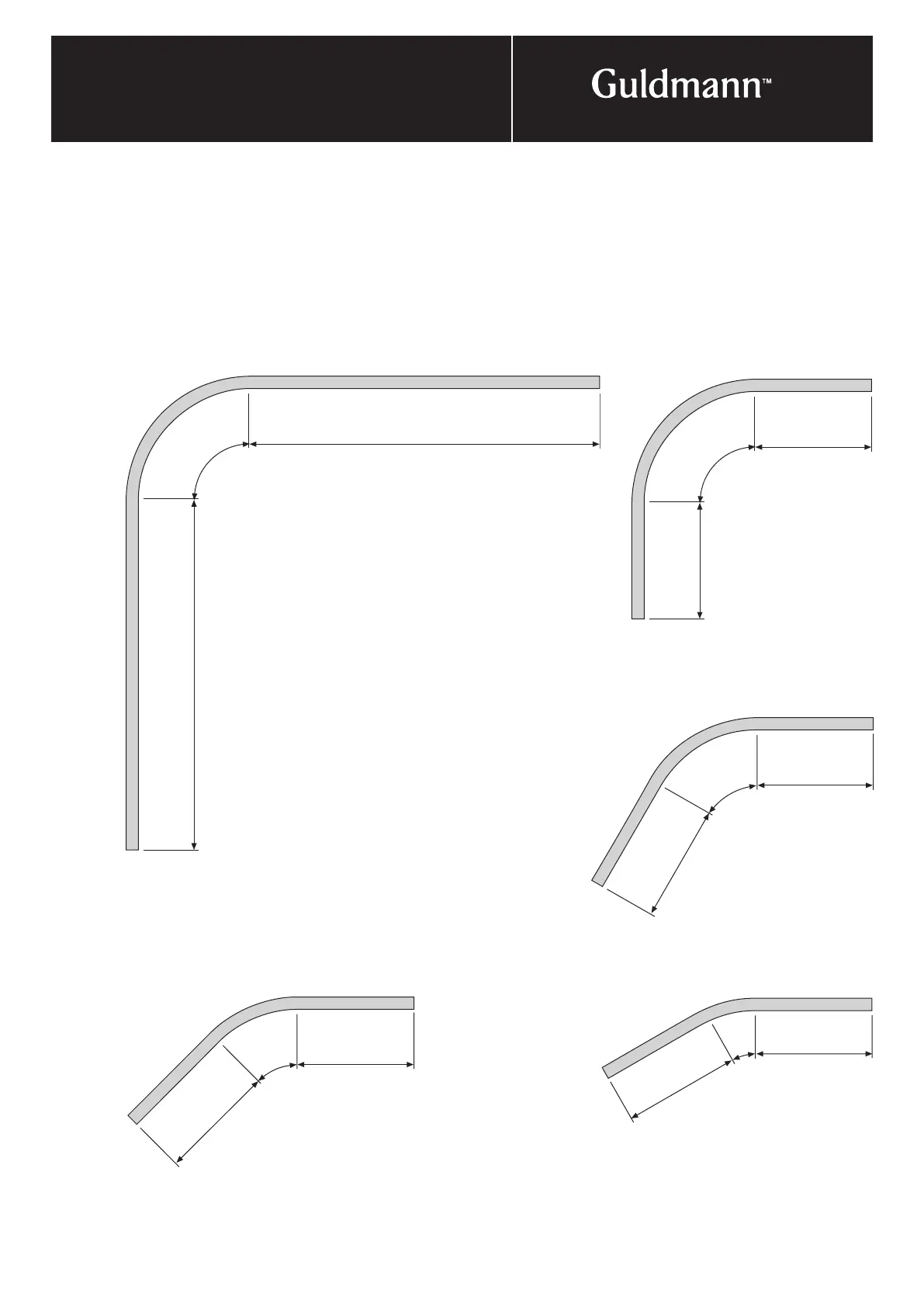

Rail curves
Rail curves are used where it is necessary to change the
direction of the track in a single-track system.
Rail curves are available in angles of 30°, 45°, 60° and 90°.
As a minimum three brackets must be used to mount all
rail curves – one of the brackets must always be placed in
the middle of the curve.
