GH2 – Mounting of side covers and end covers
Side covers
Position the side covers with the lobes facing the
receptacles on the chassis. Make sure that the tension
pieces are located behind the lobes. Check that wires
are not being jammed. Make sure that the wire of the
power intake is positioned correctly in the opening on top
of the chassis. When both side covers have been mounted,
tighten setscrews in the tension pieces lightly.
End covers
It is possible to mount the end covers after having mounted
the side covers because the end covers are very flexible.
Mounting of end cover

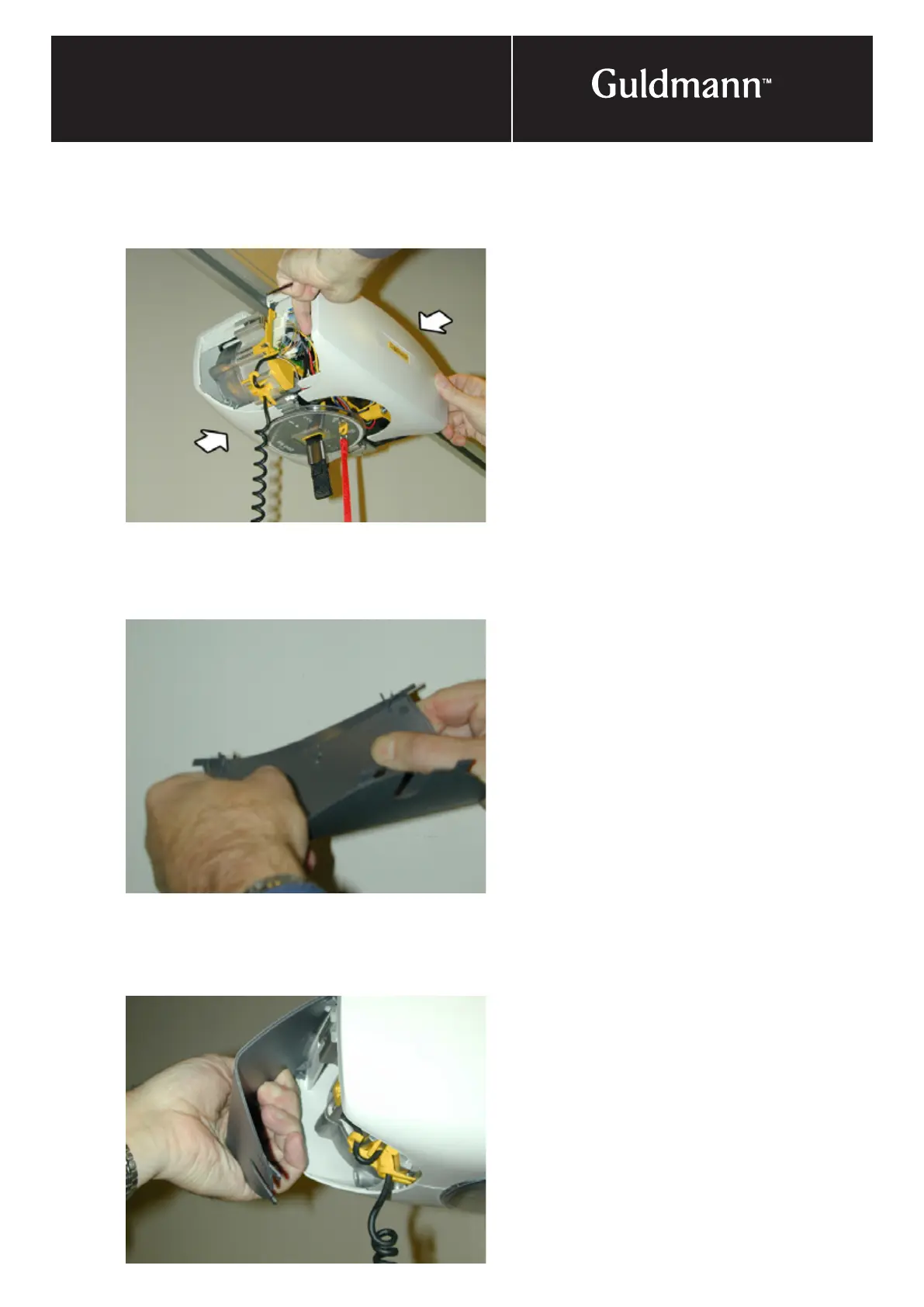

Fit the end cover into the slot on one side by means of
the hinge in the corner of the cover.
Position the end cover at an angle of approximately 45º,
as shown in the illustration, in order to ensure that the
hinge in the opposite corner of the cover faces the groove
in the slot.
