Guldmann GH2 - Technical Specifications

© Guldmann GB-1394/11/08
88
4. electrIcal connectIon
Max load
250 kg (550 lbs)
Max number of lifts in series (AC)
92 with 85 kg/1000 mm (187 lbs/40")
32 with 250 kg/1000 mm (550 lbs/40")
Max number of lifts in series (DC)
72 with 85 kg/1000 mm (187 lbs/40")
28 with 250 kg/1000 mm (550 lbs/40")
Lifting speed
with 85 kg (187 lbs) . . . . . . . . . . . . . 1680 mm/min (66"/min)
with 250 kg (550 lbs) . . . . . . . . . . . . 1020 mm/min (40"/min)
with max 5 kg (11 lbs) . . . . . . . . . . 3300 mm/min (130"/min)
Dual-speed
Weight
Hoist excl. lifting hanger . . . . . . . . . . . . . . . .8,7 kg (18 lbs)
Lifting hanger . . . . . . . . . . . . . . . . . . . . .min 2,0 kg (4.4 lbs)
Sound level acc. to DS/ISO 3746
Lifting motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52dB(A)
Protection class
Hoist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP20
Hand control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IPx4
Electrical specifications
Power supply Class I
Transformer . . . . . . . . . . . . . . . . . . . . . Guldmann DTS-2420
Input voltage . . . . . . . . . . . . . . . . . . .100-120V AC 50-60 Hz
or input voltage. . . . . . . . . . . . . . . . . .
230V AC 50-60 Hz
Output voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25V AC
Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.7A
or:
Transformer . . . . . . . . . . . . . . . . . . . . . . . . Ulveco DK 13963
Input voltage . . . . . . . . . . . . . . . . . . . . . 100-120V AC 60 Hz
Output voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25V AC
Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 VA
Power supply Class II UL 60601-1
Charger, Mascot 2240
Input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . .100-240V AC
Output voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24V DC
Output power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14,7W
Hoist batteries
Rechargeable lead batteries,
sealed and maintenance-free . . . . . . . . . . . . . . . . . . 2 x 12V
Battery will be fully charged . . . . . . . . . . . . . .before 8 hours
Rechargeable batteries . . . . . . . . . . . . . . . .order no. 933015
Hoist unit
Power consumption . . . . . . . . . . . . . . . . . . . . . . Max 240VA

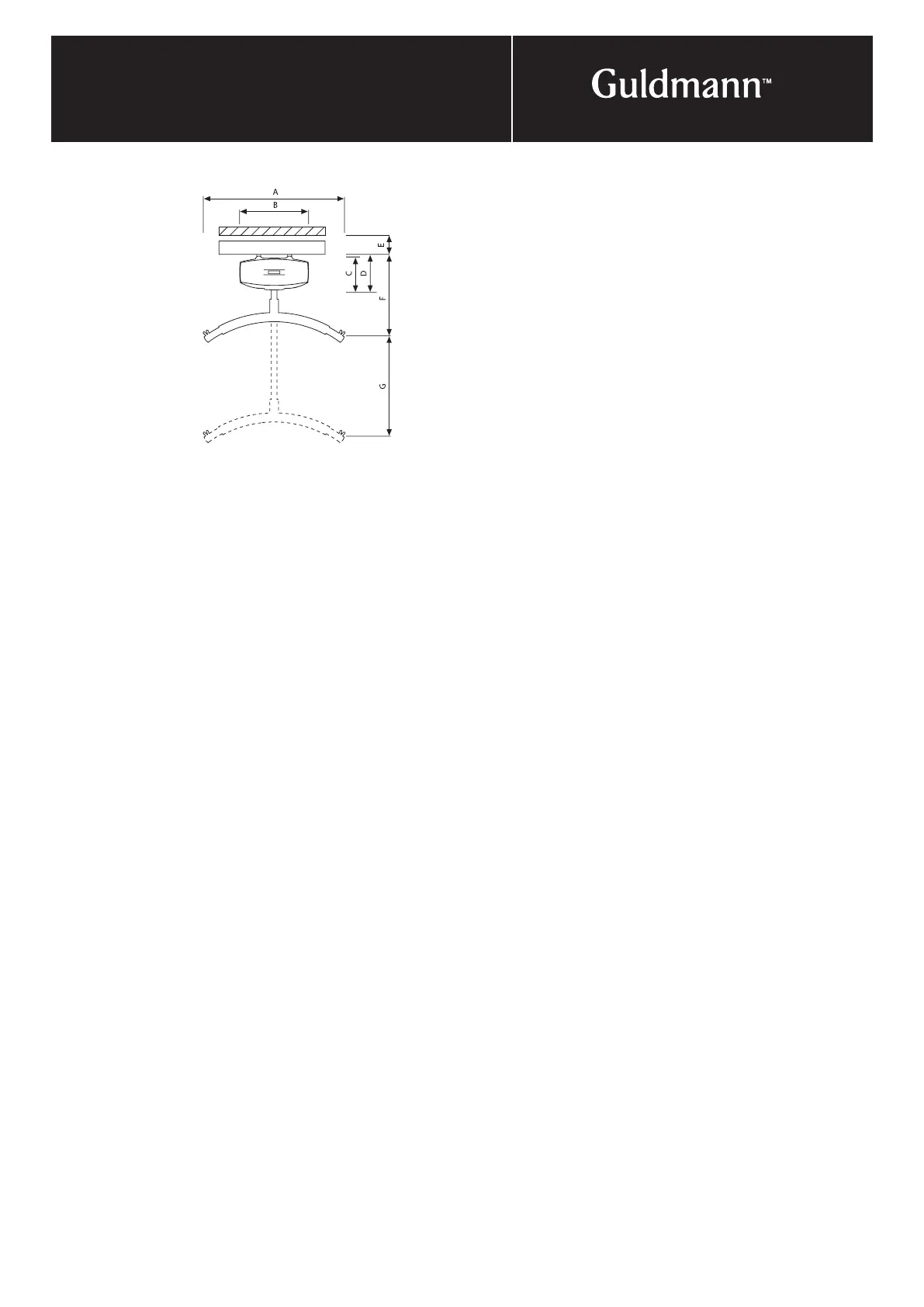

Dimensions
A 595 mm (23
3
/
4
")
B 300 mm (12")
C 148 mm (6")
D 160 mm (6
1
/
2
")
E, min 82 mm (3
1
/
2
")
F, min 370 mm (15")
G 1850 mm (73")
Depth of Hoist 197 mm (8")
Technical specifications
