max 40
Edges must be chamfered 1,5 mm x 45˚
© Guldmann GB-1394/11/08
56
3. InstallatIon
By using a special travelling trolley on GH2, it is possible
to have up to 40 mm (1 5/8”") of space between rails.
This means that it is possible to use ceiling-mounted
curtains to “screen off” a hospital bed in rooms with
several beds.
One ceiling bracket must be fitted on each rails, as close
to the rail opening as possible.
The inlet edges of the track must be chamfered as shown.
A HD traverse travelling trolley must be used for room-cov-
ering systems for HD hoist, item number 123540.

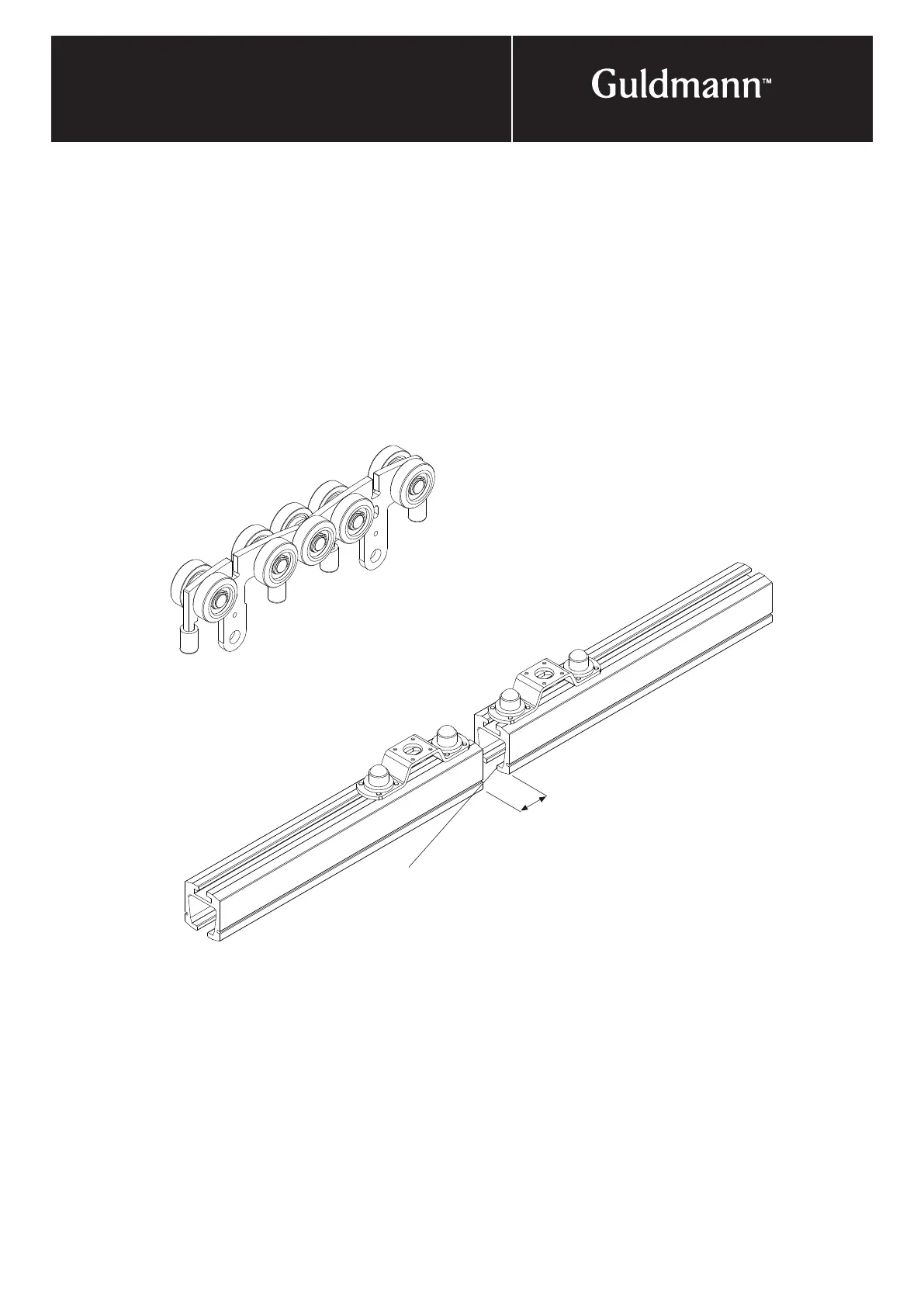

GH2 HD with special travelling trolley
