4. electrIcal connectIon
Combi-lock
CL3 manual
Comprises:
• a safety lock for fixed rail
• a safety lock for traverse rail
• manual changeover mechanism
The Combi-lock is used at the transition between a room-
covering rail system and a single-track rail system to pro-
vide optimum safety when the two rail systems are used
together.
The function of the Combi-lock:
Engagement: A tongue is inserted to link the traverse rail
with the fixed rail, and the safety locks open.
It is now possible to run the hoist from a fixed rail to a tra-
verse rail and vice versa.
Disengagement: The tongue that links the systems is
drawn back, and the safety locks close.
The traverse rail is released, but the safety locks prevent
the hoist from running out of the rail systems.
Safety locks must always be installed on the fixed rail and
on the traverse rail. The combination of these and the
travelling mechanism (powered or manual) is collectively
designated the Combi-lock.

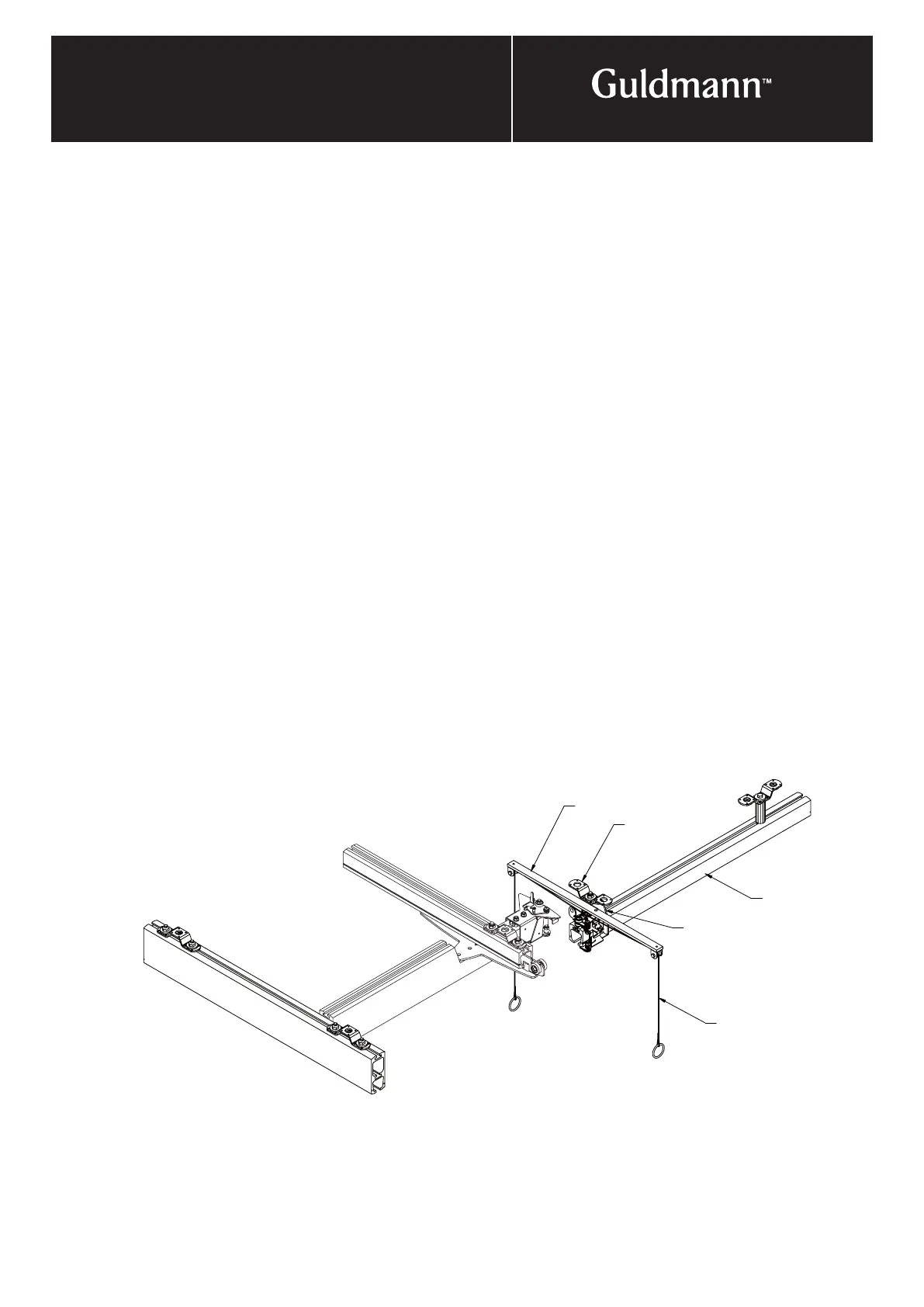

A. The manual changeover mechanism must be installed
on the bracket of the Combi-lock.
B. The Combi-lock bracket is always supplied with the
safety lock for fixed rail and must always be used
together with a standard ceiling bracket or any extended
ceiling bracket.
C. Cord pull, open/close.
D. Ceiling bracket, use the bracket as a drill gauge. For
service and maintenance considerations it is best to use
at least 5 mm (
1
/
4
") spacers beneath both fittings for
permanent and parallel rails above the Combi-Lock.
E. Mini rail.
