4. electrIcal connectIon
Combi-lock
CL3, single, powered

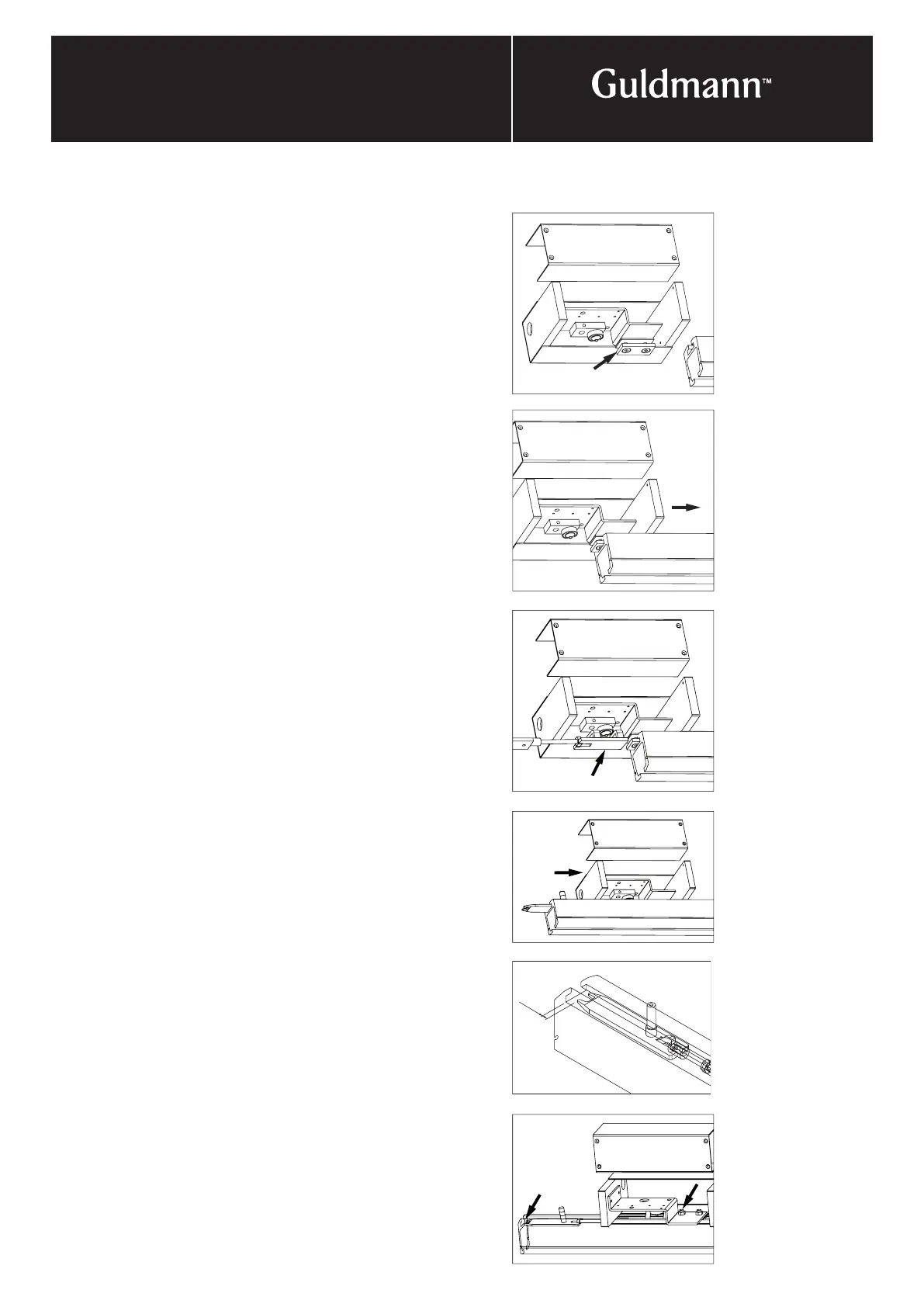

Assembly of an electrical Combi-lock
Hold the clamp and the square disc separated
Slide the motor unit halfway over the rail with the clamp in
the upper track of the rail and the square disc above the
rail.
Position the tongue as shown with a guide arm on each
side of the ball bearing. Adjust the threaded rod to the
mounting conditions.
The tongue must run easily and smoothly in the rail track.
Slide the motor unit with the tongue and safety lock
into the rail.
It is important that the tongue stops 2 mm (
3
/
16
") before the
end of the rail when adjusting the length of the rail and the
length of the tongue.
Tighten the two nuts when the end of the tongue protrudes
2 mm (
3
/
16
") into the rail.
