Guldmann GH2 - Mounting of Center Charging Station

ø12
© Guldmann GB-1394/11/08
80
4. electrIcal connectIon
Charging systems

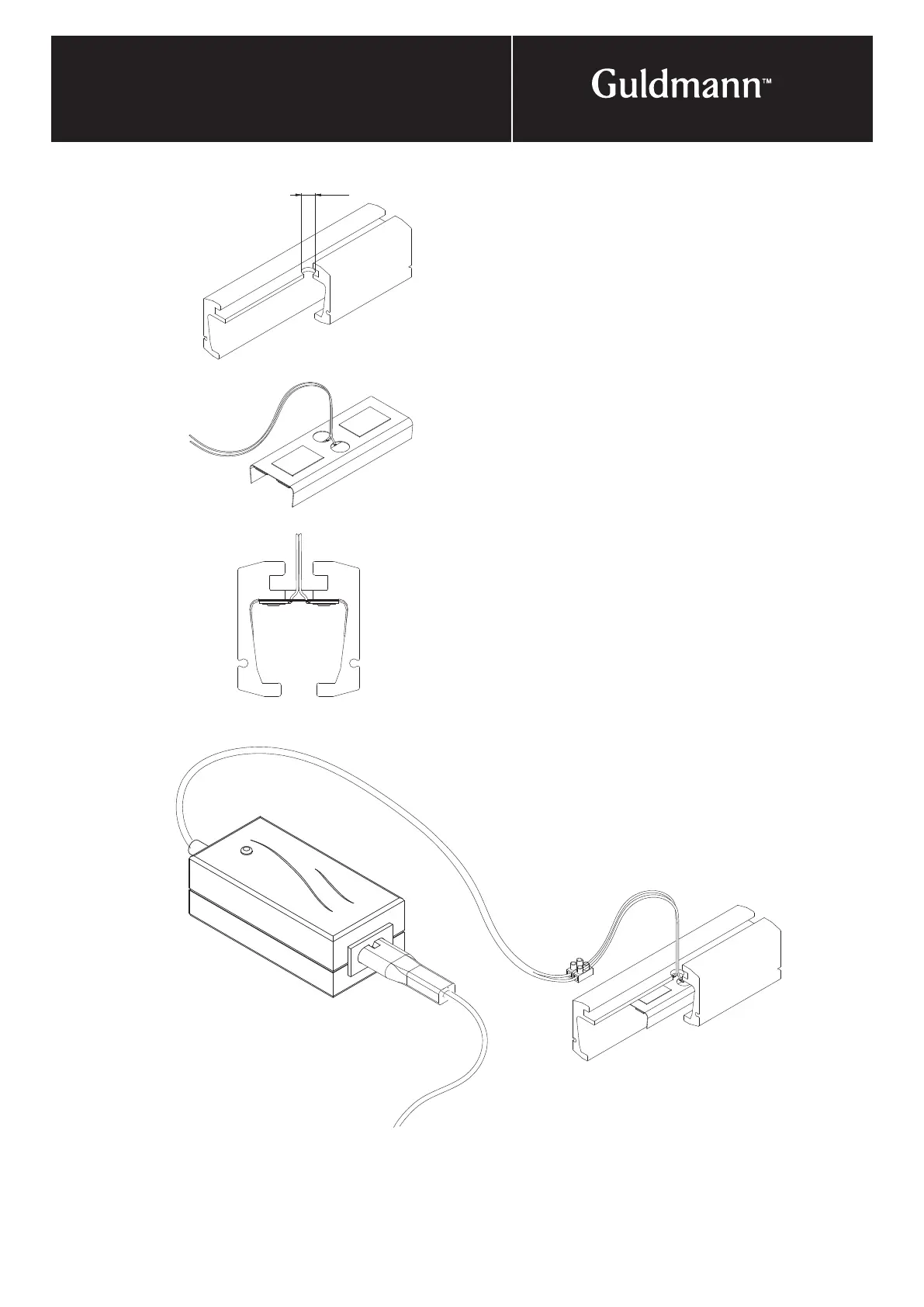

Mounting of center charging station
Drill a 12 mm (
1
/
2
") hole through the rail track where the
centre of the charging station supposed to be. The hole in
the track should be countersunk when fitting a “long” char-
ging center station for passage.
Fit the charging house in the rail so that the wire is just
below the 12 mm (
1
/
2
") hole.
Lead the wire up through the 12 mm (
1
/
2
") hole.
Fix the wire from the charging station to the charger via
terminal blocks. Remember to connect + to + and – to –
all the way from charger to hoist, as it is a DC hoist.
