58
53
109
51
126
53
171
2
5
/16"
4
1
/4"
5"
6
3
/4"
53
2" 2" 2" 2"
Mini Midi Maxi Jumbo
© Guldmann GB-1394/11/08
17
2. InformatIon

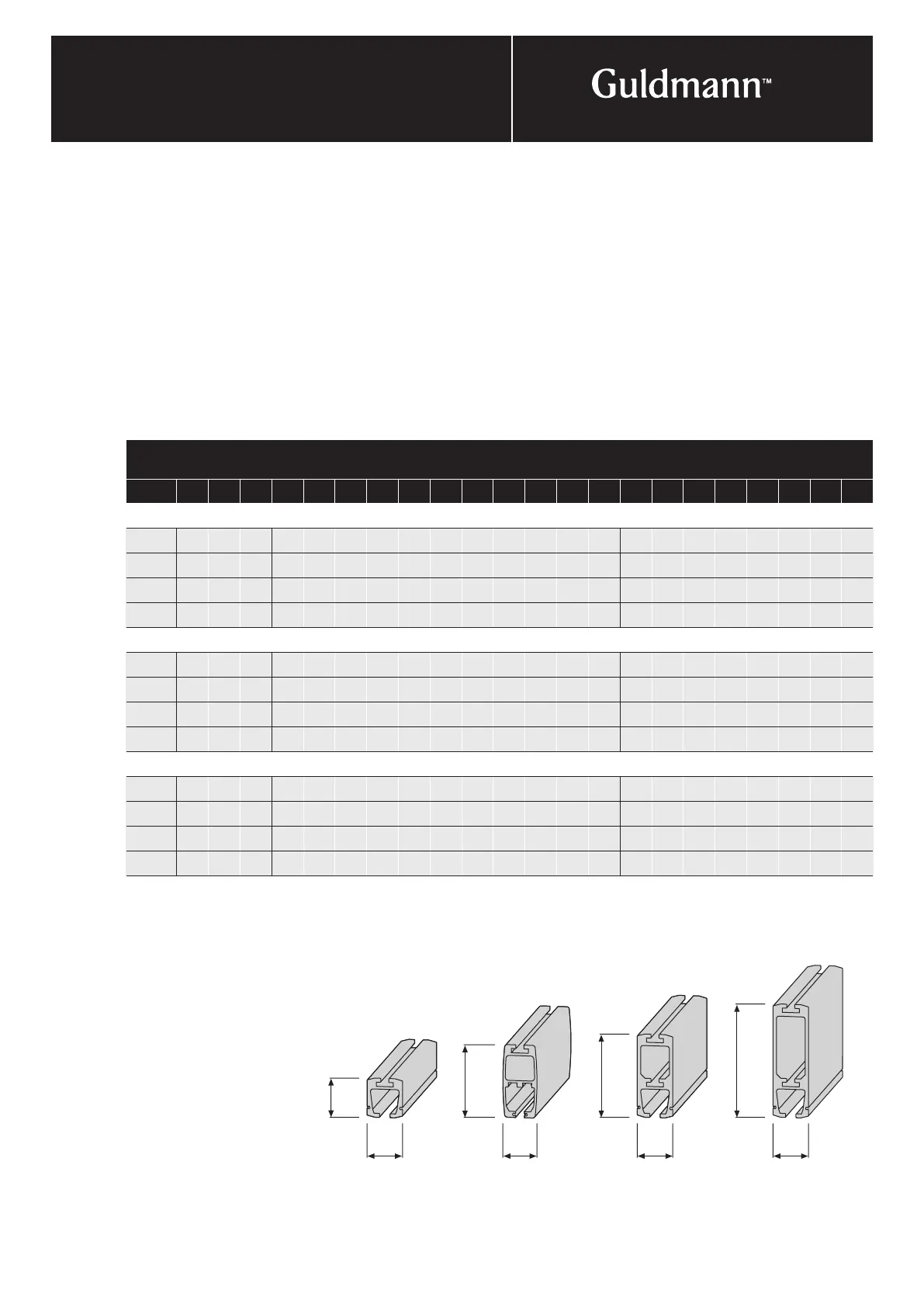

Types of rail
There are four different types of rail:
Mini, midi, maxi and jumbo.
Mini-rails are normally used in single-track systems, as
curves, the turntable and switch tracks are the same height
as the mini-rail.
In certain cases it is possible to build in the rails in rooms
with suspended ceilings, so that only the lower side of
the rail is visible, both in connection with single-track and
room-covering systems.
Mini, maxi and jumbo-rails can be combined as required.
The profile of the midi-rail differs from that of the others
and cannot be used together with the other types of rail.
The overall height of the rails in a room-covering system
can vary from 97 mm approx (3 15/16") for two mini-rails
(mini
traverse rail mounted between mini parallel rails) to
381 mm approx (15") for two jumbo-rails (jumbo parallel
rails
with underhanging jumbo traverse rail).
The traverse rail can be mounted between the parallel rails,
be underhanging or be a combination of the two solutions.
Max. projection Max distance between Delivery length
supporting points m
0,3 0,5 0,7 1,25 1,6 1,75 2,5 3,5 4 4,5 5 5,25 7 7,5 1 2 3 4 5 6 7 8
GH2 - Max 200 kg (440 Lbs)
Mini x x x x x x x x
Midi x x x x x x x x x
Maxi x x x x x x x x x
Jumbo x x x x
GH2 HD – Max 250 kg (550 Lbs)
Mini x x
Midi x x
Maxi x x
Jumbo x x
GH2 HD, Twin – Max 455 kg (1000 Lbs)
Mini x x
Midi x x
Maxi x x
Jumbo x x
